#include <G4tgbPlaceParameterisation.hh>

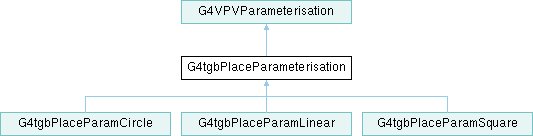

Inheritance diagram for G4tgbPlaceParameterisation:

Public Member Functions
	G4tgbPlaceParameterisation (G4tgrPlaceParameterisation *tgrParam)

virtual	~G4tgbPlaceParameterisation ()

virtual void	ComputeTransformation (const G4int, G4VPhysicalVolume *) const

void	CheckNExtraData (G4tgrPlaceParameterisation *tgrParam, G4int nWcheck, WLSIZEtype st, const G4String &methodName)

G4int	GetNCopies () const

EAxis	GetAxis () const

Public Member Functions inherited from G4VPVParameterisation
	G4VPVParameterisation ()=default

virtual	~G4VPVParameterisation ()=default

virtual G4VSolid *	ComputeSolid (const G4int, G4VPhysicalVolume *)

virtual G4Material *	ComputeMaterial (const G4int repNo, G4VPhysicalVolume currentVol, const G4VTouchable parentTouch=nullptr)

virtual G4bool	IsNested () const

virtual G4VVolumeMaterialScanner *	GetMaterialScanner ()

virtual void	ComputeDimensions (G4Box &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Tubs &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Trd &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Trap &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Cons &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Sphere &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Orb &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Ellipsoid &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Torus &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Para &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Polycone &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Polyhedra &, const G4int, const G4VPhysicalVolume *) const

virtual void	ComputeDimensions (G4Hype &, const G4int, const G4VPhysicalVolume *) const

Protected Attributes
G4int	theNCopies = 0

EAxis	theAxis = kUndefined

G4ThreeVector	theTranslation

G4RotationMatrix *	theRotationMatrix = nullptr

Detailed Description

Definition at line 47 of file G4tgbPlaceParameterisation.hh.

Constructor & Destructor Documentation

◆ G4tgbPlaceParameterisation()

G4tgbPlaceParameterisation::G4tgbPlaceParameterisation ( G4tgrPlaceParameterisation * tgrParam )

Definition at line 40 of file G4tgbPlaceParameterisation.cc.

{
  theRotationMatrix =
    G4tgbRotationMatrixMgr::GetInstance()->FindOrBuildG4RotMatrix(
      tgrParam->GetRotMatName());
}

Referenced by G4tgbPlaceParamCircle::G4tgbPlaceParamCircle(), G4tgbPlaceParamLinear::G4tgbPlaceParamLinear(), and G4tgbPlaceParamSquare::G4tgbPlaceParamSquare().

◆ ~G4tgbPlaceParameterisation()

G4tgbPlaceParameterisation::~G4tgbPlaceParameterisation ( )

virtual

Definition at line 49 of file G4tgbPlaceParameterisation.cc.

{
  delete theRotationMatrix;
}

Member Function Documentation

◆ CheckNExtraData()

void G4tgbPlaceParameterisation::CheckNExtraData	(	G4tgrPlaceParameterisation *	tgrParam,
		G4int	nWcheck,
		WLSIZEtype	st,
		const G4String &	methodName )

Definition at line 61 of file G4tgbPlaceParameterisation.cc.

{
  std::vector<G4double> extraData = tgrParam->GetExtraData();
  G4int ndata                     = (G4int)extraData.size();

  G4String outStr = methodName + " " + tgrParam->GetType() + " ";
  G4bool isOK     = G4tgrUtils::CheckListSize(ndata, nWcheck, st, outStr);

  if(!isOK)
  {
    G4String chartmp = G4UIcommand::ConvertToString(nWcheck);
    outStr += chartmp + G4String(" words");
    G4cerr << outStr;
    G4cerr << " NUMBER OF WORDS " << ndata << G4endl;
    G4Exception("G4tgbPlaceParameterisation::CheckNExtraData", "InvalidData",
                FatalException, "Invalid data size.");
  }
}
