#include <G4ToolsSGOffscreenViewer.hh>

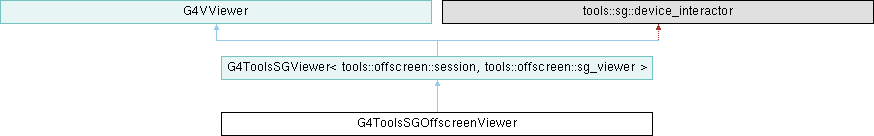

Inheritance diagram for G4ToolsSGOffscreenViewer:

Classes
class	Messenger

Public Member Functions
	G4ToolsSGOffscreenViewer (tools::offscreen::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)

virtual	~G4ToolsSGOffscreenViewer ()=default

virtual void	Initialise ()

virtual void	SetView ()

virtual void	DrawView ()

virtual void	ClearView ()

virtual void	ShowView ()

virtual void	FinishView ()

Public Member Functions inherited from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >
virtual void	key_press (const tools::sg::key_down_event &a_event)

virtual void	key_release (const tools::sg::key_up_event &)

virtual void	mouse_press (const tools::sg::mouse_down_event &a_event)

virtual void	mouse_release (const tools::sg::mouse_up_event &)

virtual void	mouse_move (const tools::sg::mouse_move_event &a_event)

virtual void	wheel_rotate (const tools::sg::wheel_rotate_event &a_event)

	G4ToolsSGViewer (tools::offscreen::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)

virtual	~G4ToolsSGViewer ()

virtual void	SwitchToVisSubThread ()

virtual void	SwitchToMasterThread ()

virtual void	key_press (const tools::sg::key_down_event &a_event)

virtual void	key_release (const tools::sg::key_up_event &)

virtual void	mouse_press (const tools::sg::mouse_down_event &a_event)

virtual void	mouse_release (const tools::sg::mouse_up_event &)

virtual void	mouse_move (const tools::sg::mouse_move_event &a_event)

virtual void	wheel_rotate (const tools::sg::wheel_rotate_event &a_event)

	G4ToolsSGViewer (tools::offscreen::session &a_session, G4ToolsSGSceneHandler &a_scene_handler, const G4String &a_name)

virtual	~G4ToolsSGViewer ()

virtual void	SwitchToVisSubThread ()

virtual void	SwitchToMasterThread ()

Public Member Functions inherited from G4VViewer
	G4VViewer (G4VSceneHandler &, G4int id, const G4String &name="")

virtual	~G4VViewer ()

virtual void	ResetView ()

void	RefreshView ()

virtual G4bool	ReadyToDraw ()

std::vector< G4ThreeVector >	ComputeFlyThrough (G4Vector3D *)

virtual void	DoneWithMasterThread ()

virtual void	MovingToVisSubThread ()

virtual void	DoneWithVisSubThread ()

virtual void	MovingToMasterThread ()

void	InsertModelInSceneTree (G4VModel *)

const G4SceneTreeItem &	GetSceneTree ()

G4SceneTreeItem &	AccessSceneTree ()

void	UpdateGUISceneTree ()

const G4String &	GetName () const

const G4String &	GetShortName () const

void	SetName (const G4String &)

G4int	GetViewId () const

G4VSceneHandler *	GetSceneHandler () const

const G4ViewParameters &	GetViewParameters () const

const G4ViewParameters &	GetDefaultViewParameters () const

G4double	GetKernelVisitElapsedTimeSeconds () const

virtual const std::vector< G4ModelingParameters::VisAttributesModifier > *	GetPrivateVisAttributesModifiers () const

void	SetViewParameters (const G4ViewParameters &vp)

void	SetDefaultViewParameters (const G4ViewParameters &vp)

const G4VisAttributes *	GetApplicableVisAttributes (const G4VisAttributes *) const

void	SetNeedKernelVisit (G4bool need)

void	NeedKernelVisit ()

void	ProcessView ()

Protected Member Functions
	G4ToolsSGOffscreenViewer (const G4ToolsSGOffscreenViewer &a_from)

G4ToolsSGOffscreenViewer &	operator= (const G4ToolsSGOffscreenViewer &)

void	SetSize (unsigned int a_w, unsigned int a_h)

void	SetFileFormat (const G4String &a_format)

void	SetDoTransparency (bool a_value)

void	SetFileName (const G4String &a_file, const G4String &a_prefix, bool a_reset_index)

void	SetGL2PSSort (const G4String &a_sort)

void	SetGL2PSOptions (const G4String &a_opts)

unsigned int	GetFileIndex ()

Protected Member Functions inherited from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >
	G4ToolsSGViewer (const G4ToolsSGViewer &a_from)

G4ToolsSGViewer &	operator= (const G4ToolsSGViewer &)

void	KernelVisitDecision ()

G4bool	CompareForKernelVisit (G4ViewParameters &vp)

void	CreateSG (tools::sg::base_camera *a_camera, const G4Vector3D &a_light_dir)

void	Export (const G4String &a_format, const G4String &a_file, G4bool a_do_transparency)

	G4ToolsSGViewer (const G4ToolsSGViewer &a_from)

G4ToolsSGViewer &	operator= (const G4ToolsSGViewer &)

void	KernelVisitDecision ()

G4bool	CompareForKernelVisit (G4ViewParameters &vp)

void	CreateSG (tools::sg::base_camera *a_camera, const G4Vector3D &a_light_dir)

void	Export (const G4String &a_format, const G4String &a_file, G4bool a_do_transparency)

Protected Member Functions inherited from G4VViewer
void	SetTouchable (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath)

void	TouchableSetVisibility (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, G4bool visibility)

void	TouchableSetColour (const std::vector< G4PhysicalVolumeModel::G4PhysicalVolumeNodeID > &fullPath, const G4Colour &)

Static Protected Member Functions
static bool	IsKnownFormat (const std::string &a_format)

static bool	GetFormatExtension (const std::string &a_format, std::string &a_ext)

Protected Attributes
std::string	fFileName

std::string	fFilePrefix

unsigned int	fFileIndex

bool	fResetFileIndex

Protected Attributes inherited from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >
tools::offscreen::session &	fSGSession

G4ToolsSGSceneHandler &	fSGSceneHandler

tools::offscreen::sg_viewer *	fSGViewer

G4ViewParameters	fLastVP

G4bool	fKeyPressed

G4bool	fKeyShift

G4bool	fMousePressed

G4double	fMousePressedX

G4double	fMousePressedY

tools::sg::zb_manager	f_zb_mgr

tools::sg::gl2ps_manager	f_gl2ps_mgr

tools::offscreen::session &	fSGSession

G4ToolsSGSceneHandler &	fSGSceneHandler

tools::offscreen::sg_viewer *	fSGViewer

G4ViewParameters	fLastVP

G4bool	fKeyPressed

G4bool	fKeyShift

G4bool	fMousePressed

G4double	fMousePressedX

G4double	fMousePressedY

tools::sg::zb_manager	f_zb_mgr

tools::sg::gl2ps_manager	f_gl2ps_mgr

Protected Attributes inherited from G4VViewer
G4VSceneHandler &	fSceneHandler

G4int	fViewId

G4String	fName

G4String	fShortName

G4ViewParameters	fVP

G4ViewParameters	fDefaultVP

G4double	fKernelVisitElapsedTimeSeconds = 999.

G4SceneTreeItem	fSceneTree

G4bool	fNeedKernelVisit

Additional Inherited Members
Public Attributes inherited from G4VViewer
const G4int	fMaxNTouchables = 10000

G4bool	fCurtailDescent = false

Detailed Description

Definition at line 42 of file G4ToolsSGOffscreenViewer.hh.

Constructor & Destructor Documentation

◆ G4ToolsSGOffscreenViewer() [1/2]

G4ToolsSGOffscreenViewer::G4ToolsSGOffscreenViewer	(	tools::offscreen::session &	a_session,
		G4ToolsSGSceneHandler &	a_scene_handler,
		const G4String &	a_name )

inline

Definition at line 45 of file G4ToolsSGOffscreenViewer.hh.

  :parent(a_session,a_scene_handler,a_name)
  ,fFileName("auto")
  ,fFilePrefix("auto")
  ,fFileIndex(0)
  ,fResetFileIndex(false)
  {
    Messenger::Create();
  }

Referenced by G4ToolsSGOffscreenViewer(), operator=(), and G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ ~G4ToolsSGOffscreenViewer()

virtual G4ToolsSGOffscreenViewer::~G4ToolsSGOffscreenViewer ( )

virtualdefault

◆ G4ToolsSGOffscreenViewer() [2/2]

G4ToolsSGOffscreenViewer::G4ToolsSGOffscreenViewer ( const G4ToolsSGOffscreenViewer & a_from )

inlineprotected

Definition at line 56 of file G4ToolsSGOffscreenViewer.hh.

56:parent(a_from){}

Member Function Documentation

◆ ClearView()

virtual void G4ToolsSGOffscreenViewer::ClearView ( void )

inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 114 of file G4ToolsSGOffscreenViewer.hh.

                           {
    //::printf("debug : G4ToolsSGOffscreenViewer::ClearView %s\n",fName.c_str());
  }

◆ DrawView()

virtual void G4ToolsSGOffscreenViewer::DrawView ( )

inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 84 of file G4ToolsSGOffscreenViewer.hh.

                          {
    if (!fNeedKernelVisit) KernelVisitDecision();
    fLastVP = fVP;
    ProcessView();  // Clears store and processes scene only if necessary.
    //::printf("debug : G4ToolsSGOffscreenViewer::DrawView %s\n",fName.c_str());
    if(fSGViewer) {
      fSGSceneHandler.TouchPlotters(fSGViewer->sg());
      if(fFileName=="auto") {
        std::string prefix;
        if(fFilePrefix=="auto") {
          prefix = "g4tsg_offscreen_"+fSGViewer->file_format()+"_";
        } else {
          prefix = fFilePrefix;
        }
        std::string suffix;
        if(G4ToolsSGOffscreenViewer::GetFormatExtension(fSGViewer->file_format(),suffix)) {
          std::string file_name = prefix+tools::tos(GetFileIndex())+"."+suffix;
          fSGViewer->set_file_name(file_name);
        }
      } else {
        fSGViewer->set_file_name(fFileName);
      }
      if(fSGViewer->write_paper()) {
        if (G4VisManager::GetVerbosity() >= G4VisManager::confirmations) {
          G4cout << "File " << fSGViewer->file_name() << " produced." << G4endl;
        }
      }
    }
  }

◆ FinishView()

virtual void G4ToolsSGOffscreenViewer::FinishView ( void )

inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 120 of file G4ToolsSGOffscreenViewer.hh.

                            {
    //::printf("debug : G4ToolsSGOffscreenViewer::FinishView %s\n",fName.c_str());
    if(fSGViewer) {
      fSGSceneHandler.TouchPlotters(fSGViewer->sg());
    }
  }

◆ GetFileIndex()

unsigned int G4ToolsSGOffscreenViewer::GetFileIndex ( )

inlineprotected

Definition at line 364 of file G4ToolsSGOffscreenViewer.hh.

                              {
    if(fResetFileIndex) {fFileIndex = 0;fResetFileIndex = false;}
    fFileIndex++;
    return fFileIndex;
  }

Referenced by DrawView().

◆ GetFormatExtension()

static bool G4ToolsSGOffscreenViewer::GetFormatExtension	(	const std::string &	a_format,
		std::string &	a_ext )

inlinestaticprotected

Definition at line 383 of file G4ToolsSGOffscreenViewer.hh.

                                                                             {
    if(a_format=="gl2ps_eps") {a_ext = "eps";return true;}
    if(a_format=="gl2ps_ps")  {a_ext = "ps";return true;}
    if(a_format=="gl2ps_pdf") {a_ext = "pdf";return true;}
    if(a_format=="gl2ps_svg") {a_ext = "svg";return true;}
    if(a_format=="gl2ps_tex") {a_ext = "tex";return true;}
    if(a_format=="gl2ps_pgf") {a_ext = "pgf";return true;}
    if(a_format=="zb_ps")     {a_ext = "ps";return true;}
    if(a_format=="zb_png")    {a_ext = "png";return true;}
    if(a_format=="zb_jpeg")   {a_ext = "jpeg";return true;}
    a_ext.clear();
    return false;
  }

Referenced by DrawView().

◆ Initialise()

virtual void G4ToolsSGOffscreenViewer::Initialise ( )

inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 59 of file G4ToolsSGOffscreenViewer.hh.

                            {
    if(fSGViewer) return; //done.
    //::printf("debug : G4ToolsSGOffscreenViewer::Initialize\n");
    // auto refresh true produces too much files.
    fVP.SetAutoRefresh(false);
    fDefaultVP.SetAutoRefresh(false);
    fSGViewer = new tools::offscreen::sg_viewer(fSGSession
      ,fVP.GetWindowAbsoluteLocationHintX(1440)
      ,fVP.GetWindowAbsoluteLocationHintY(900)
      ,fVP.GetWindowSizeHintX()
      ,fVP.GetWindowSizeHintY()
      ,fName);
    fSGViewer->set_file_format("zb_png");
    fSGViewer->set_file_name("out.png");
    fSGViewer->set_png_writer(tools::fpng::write);
    fSGViewer->set_jpeg_writer(tools::toojpeg::write);
    fSGViewer->set_do_transparency(true);
    fSGViewer->set_top_to_bottom(false); //if using tools::fpng, tools::toojpeg.
  }

◆ IsKnownFormat()

static bool G4ToolsSGOffscreenViewer::IsKnownFormat ( const std::string & a_format )

inlinestaticprotected

Definition at line 370 of file G4ToolsSGOffscreenViewer.hh.

                                                       {
    if(a_format=="gl2ps_eps") return true;
    if(a_format=="gl2ps_ps")  return true;
    if(a_format=="gl2ps_pdf") return true;
    if(a_format=="gl2ps_svg") return true;
    if(a_format=="gl2ps_tex") return true;
    if(a_format=="gl2ps_pgf") return true;
    if(a_format=="zb_ps")     return true;
    if(a_format=="zb_png")    return true;
    if(a_format=="zb_jpeg")   return true;
    return false;
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ operator=()

G4ToolsSGOffscreenViewer & G4ToolsSGOffscreenViewer::operator= ( const G4ToolsSGOffscreenViewer & )

inlineprotected

Definition at line 57 of file G4ToolsSGOffscreenViewer.hh.

57{return *this;}

◆ SetDoTransparency()

void G4ToolsSGOffscreenViewer::SetDoTransparency ( bool a_value )

inlineprotected

Definition at line 142 of file G4ToolsSGOffscreenViewer.hh.

                                       {
    if(!fSGViewer) return;
    fSGViewer->set_do_transparency(a_value);
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetFileFormat()

void G4ToolsSGOffscreenViewer::SetFileFormat ( const G4String & a_format )

inlineprotected

Definition at line 137 of file G4ToolsSGOffscreenViewer.hh.

                                               {
    if(!fSGViewer) return;
    fSGViewer->set_file_format(a_format);
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetFileName()

void G4ToolsSGOffscreenViewer::SetFileName	(	const G4String &	a_file,
		const G4String &	a_prefix,
		bool	a_reset_index )

inlineprotected

Definition at line 147 of file G4ToolsSGOffscreenViewer.hh.

                                                                                       {
    fFileName = a_file;
    fFilePrefix = a_prefix;
    fResetFileIndex = a_reset_index;
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetGL2PSOptions()

void G4ToolsSGOffscreenViewer::SetGL2PSOptions ( const G4String & a_opts )

inlineprotected

Definition at line 158 of file G4ToolsSGOffscreenViewer.hh.

                                               {
    if(!fSGViewer) return;
    fSGViewer->set_opts_2(a_opts);
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetGL2PSSort()

void G4ToolsSGOffscreenViewer::SetGL2PSSort ( const G4String & a_sort )

inlineprotected

Definition at line 153 of file G4ToolsSGOffscreenViewer.hh.

                                            {
    if(!fSGViewer) return;
    fSGViewer->set_opts_1(a_sort);
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetSize()

void G4ToolsSGOffscreenViewer::SetSize	(	unsigned int	a_w,
		unsigned int	a_h )

inlineprotected

Definition at line 128 of file G4ToolsSGOffscreenViewer.hh.

                                                  {
    if(!fSGViewer) return;
    if(!a_w || !a_h) {
      fSGViewer->set_size(fVP.GetWindowSizeHintX(),fVP.GetWindowSizeHintY());
    } else {
      fSGViewer->set_size(a_w,a_h);
    }
  }

Referenced by G4ToolsSGOffscreenViewer::Messenger::SetNewValue().

◆ SetView()

virtual void G4ToolsSGOffscreenViewer::SetView ( )

inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 78 of file G4ToolsSGOffscreenViewer.hh.

                         {
    //::printf("debug : G4ToolsSGOffscreenViewer::SetView\n");
    fVP.SetGlobalMarkerScale(1);  //WARNING: for __APPLE__, the G4ToolsSGQtViewer set it to 2.
    parent::SetView();
  }

◆ ShowView()

virtual void G4ToolsSGOffscreenViewer::ShowView ( void )

inlinevirtual

Reimplemented from G4ToolsSGViewer< tools::offscreen::session, tools::offscreen::sg_viewer >.

Definition at line 117 of file G4ToolsSGOffscreenViewer.hh.

                          {
    //::printf("debug : G4ToolsSGOffscreenViewer::ShowView %s\n",fName.c_str());
  }

Member Data Documentation

◆ fFileIndex

unsigned int G4ToolsSGOffscreenViewer::fFileIndex

protected

Definition at line 400 of file G4ToolsSGOffscreenViewer.hh.

Referenced by G4ToolsSGOffscreenViewer(), and GetFileIndex().

◆ fFileName

std::string G4ToolsSGOffscreenViewer::fFileName

protected

Definition at line 398 of file G4ToolsSGOffscreenViewer.hh.

Referenced by DrawView(), G4ToolsSGOffscreenViewer(), and SetFileName().

◆ fFilePrefix

std::string G4ToolsSGOffscreenViewer::fFilePrefix

protected

Definition at line 399 of file G4ToolsSGOffscreenViewer.hh.

Referenced by DrawView(), G4ToolsSGOffscreenViewer(), and SetFileName().

◆ fResetFileIndex

bool G4ToolsSGOffscreenViewer::fResetFileIndex

protected

Definition at line 401 of file G4ToolsSGOffscreenViewer.hh.

Referenced by G4ToolsSGOffscreenViewer(), GetFileIndex(), and SetFileName().

The documentation for this class was generated from the following file:

G4ToolsSGOffscreenViewer.hh

Classes

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ G4ToolsSGOffscreenViewer() [1/2]

◆ ~G4ToolsSGOffscreenViewer()

◆ G4ToolsSGOffscreenViewer() [2/2]

Member Function Documentation

◆ ClearView()

◆ DrawView()

◆ FinishView()

◆ GetFileIndex()

◆ GetFormatExtension()

◆ Initialise()

◆ IsKnownFormat()

◆ operator=()

◆ SetDoTransparency()

◆ SetFileFormat()

◆ SetFileName()

◆ SetGL2PSOptions()

◆ SetGL2PSSort()

◆ SetSize()

◆ SetView()

◆ ShowView()

Member Data Documentation

◆ fFileIndex

◆ fFileName

◆ fFilePrefix

◆ fResetFileIndex
