#include <G4Polyline.hh>

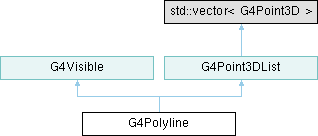

Inheritance diagram for G4Polyline:

Public Types
using	iterator = G4Point3DList::iterator

Public Types inherited from G4Point3DList
using	iterator = std::vector<G4Point3D>::iterator

Public Member Functions
	G4Polyline ()

	~G4Polyline () override

G4Polyline &	transform (const G4Transform3D &)

Public Member Functions inherited from G4Visible
	G4Visible ()

	G4Visible (const G4Visible &)

	G4Visible (G4Visible &&)

	G4Visible (const G4VisAttributes *)

virtual	~G4Visible ()

G4Visible &	operator= (const G4Visible &)

G4Visible &	operator= (G4Visible &&)

G4bool	operator!= (const G4Visible &right) const

const G4VisAttributes *	GetVisAttributes () const

void	SetVisAttributes (const G4VisAttributes *)

void	SetVisAttributes (const G4VisAttributes &)

virtual const G4String &	GetInfo () const

virtual void	SetInfo (const G4String &info)

Public Member Functions inherited from G4Point3DList
virtual	~G4Point3DList ()

Friends
std::ostream &	operator<< (std::ostream &os, const G4Polyline &line)

Additional Inherited Members
Protected Attributes inherited from G4Visible
G4String	fInfo

const G4VisAttributes *	fpVisAttributes

G4bool	fAllocatedVisAttributes

Detailed Description

Definition at line 46 of file G4Polyline.hh.

Member Typedef Documentation

◆ iterator

using G4Polyline::iterator = G4Point3DList::iterator

Definition at line 52 of file G4Polyline.hh.

Constructor & Destructor Documentation

◆ G4Polyline()

G4Polyline::G4Polyline ( )

default

Referenced by operator<<, transform(), and ~G4Polyline().

◆ ~G4Polyline()

G4Polyline::~G4Polyline ( )

overridedefault

Member Function Documentation

◆ transform()

G4Polyline & G4Polyline::transform ( const G4Transform3D & transformation )

Definition at line 37 of file G4Polyline.cc.

                                                                      {
  for (auto & i : *this) i.transform(transformation);
  return *this;
}

Referenced by transform().

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const G4Polyline &	line )

friend

Definition at line 42 of file G4Polyline.cc.

                                                                 {
  os << "G4Polyline: ";
  os << '\n' << (const G4Visible&) line;
  os << '\n' << (const G4Point3DList&) line;
  return os;
}

The documentation for this class was generated from the following files:
