G4VGraphicsSystem Class Referenceabstract

#include <G4VGraphicsSystem.hh>

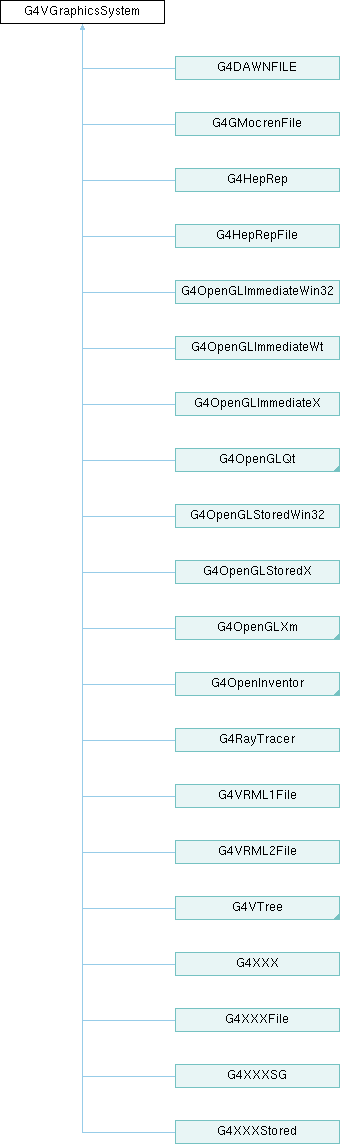

+ Inheritance diagram for G4VGraphicsSystem:

Public Types

enum  Functionality {
  noFunctionality , nonEuclidian , twoD , twoDStore ,
  threeD , threeDInteractive , virtualReality , fileWriter
}


Public Member Functions

 G4VGraphicsSystem (const G4String &name, Functionality f)

 G4VGraphicsSystem (const G4String &name, const G4String &nickname, Functionality f)

 G4VGraphicsSystem (const G4String &name, const G4String &nickname, const G4String &description, Functionality f)

virtual ~G4VGraphicsSystem ()

virtual G4VSceneHandler * CreateSceneHandler (const G4String &name)=0

virtual G4VViewer * CreateViewer (G4VSceneHandler &, const G4String &name)=0

const G4String & GetName () const

const G4String & GetNickname () const

const std::vector< G4String > & GetNicknames () const

const G4String & GetDescription () const

Functionality GetFunctionality () const

virtual G4bool IsUISessionCompatible () const

void AddNickname (const G4String &nickname)


Protected Attributes

G4String fName

std::vector< G4String > fNicknames

G4String fDescription

Functionality fFunctionality


Detailed Description

Definition at line 45 of file G4VGraphicsSystem.hh.

Member Enumeration Documentation

◆ Functionality

enum G4VGraphicsSystem::Functionality
Enumerator
noFunctionality
nonEuclidian
twoD
twoDStore
threeD
threeDInteractive
virtualReality
fileWriter

Definition at line 49 of file G4VGraphicsSystem.hh.

49 {
50 noFunctionality
51 ,nonEuclidian // e.g., tree representation of geometry hierarchy.
52 ,twoD // Simple 2D, e.g., X (no stored structures).
53 ,twoDStore // 2D with stored structures.
54 ,threeD // Passive 3D (with stored structures).
55 ,threeDInteractive // 3D with "pick" functionality.
56 ,virtualReality // Virtual Reality functionality.
57 ,fileWriter // File writer
58 };

Constructor & Destructor Documentation

◆ G4VGraphicsSystem() [1/3]

G4VGraphicsSystem::G4VGraphicsSystem ( const G4String &  name,
Functionality  f
)

Definition at line 38 of file G4VGraphicsSystem.cc.

39 :
40 fName (name),
41 fDescription ("No description"),
42 fFunctionality (f)
43{
44 fNicknames.push_back("No Nickname");
45}
G4VGraphicsSystem::fFunctionality
Functionality fFunctionality
Definition: G4VGraphicsSystem.hh:91
G4VGraphicsSystem::fNicknames
std::vector< G4String > fNicknames
Definition: G4VGraphicsSystem.hh:89

◆ G4VGraphicsSystem() [2/3]

G4VGraphicsSystem::G4VGraphicsSystem ( const G4String &  name,
const G4String &  nickname,
Functionality  f
)

Definition at line 47 of file G4VGraphicsSystem.cc.

49 :
50 fName (name),
51 fDescription ("No description"),
52 fFunctionality (f)
53{
54 fNicknames.push_back(nickname);
55}

◆ G4VGraphicsSystem() [3/3]

G4VGraphicsSystem::G4VGraphicsSystem ( const G4String &  name,
const G4String &  nickname,
const G4String &  description,
Functionality  f
)

Definition at line 57 of file G4VGraphicsSystem.cc.

60 :
61 fName (name),
62 fDescription (description),
63 fFunctionality (f)
64{
65 fNicknames.push_back(nickname);
66}

◆ ~G4VGraphicsSystem()

G4VGraphicsSystem::~G4VGraphicsSystem ( )
virtual

Definition at line 36 of file G4VGraphicsSystem.cc.

36{}

Member Function Documentation

◆ AddNickname()

void G4VGraphicsSystem::AddNickname ( const G4String &  nickname)
inline

Definition at line 85 of file G4VGraphicsSystem.hh.

85{fNicknames.push_back(nickname);}

◆ CreateSceneHandler()

virtual G4VSceneHandler * G4VGraphicsSystem::CreateSceneHandler ( const G4String &  name)
pure virtual

Implemented in G4RayTracer, G4OpenInventor, G4DAWNFILE, G4GMocrenFile, G4HepRep, G4HepRepFile, G4OpenGLImmediateQt, G4OpenGLImmediateWin32, G4OpenGLImmediateWt, G4OpenGLImmediateX, G4OpenGLImmediateXm, G4OpenGLStoredQt, G4OpenGLStoredWin32, G4OpenGLStoredX, G4OpenGLStoredXm, G4ASCIITree, G4VRML1File, G4VRML2File, G4XXX, G4XXXFile, G4XXXSG, and G4XXXStored.

◆ CreateViewer()

virtual G4VViewer * G4VGraphicsSystem::CreateViewer ( G4VSceneHandler &  ,
const G4String &  name
)
pure virtual

Implemented in G4RayTracer, G4DAWNFILE, G4GMocrenFile, G4HepRep, G4HepRepFile, G4OpenGLImmediateQt, G4OpenGLImmediateWin32, G4OpenGLImmediateWt, G4OpenGLImmediateX, G4OpenGLImmediateXm, G4OpenGLStoredQt, G4OpenGLStoredWin32, G4OpenGLStoredX, G4OpenGLStoredXm, G4OpenInventorWin, G4OpenInventorXt, G4OpenInventorXtExtended, G4ASCIITree, G4VRML1File, G4VRML2File, G4XXX, G4XXXFile, G4XXXSG, and G4XXXStored.

◆ GetDescription()

const G4String & G4VGraphicsSystem::GetDescription ( ) const
inline

Definition at line 82 of file G4VGraphicsSystem.hh.

82{return fDescription;}

◆ GetFunctionality()

Functionality G4VGraphicsSystem::GetFunctionality ( ) const
inline

Definition at line 83 of file G4VGraphicsSystem.hh.

83{return fFunctionality;}

◆ GetName()

const G4String & G4VGraphicsSystem::GetName ( ) const
inline

Definition at line 79 of file G4VGraphicsSystem.hh.

79{return fName;}

Referenced by G4VSceneHandler::G4VSceneHandler().

◆ GetNickname()

const G4String & G4VGraphicsSystem::GetNickname ( ) const
inline

Definition at line 80 of file G4VGraphicsSystem.hh.

80{return fNicknames[0];}

Referenced by G4VisCommandViewerList::SetNewValue().

◆ GetNicknames()

const std::vector< G4String > & G4VGraphicsSystem::GetNicknames ( ) const
inline

Definition at line 81 of file G4VGraphicsSystem.hh.

81{return fNicknames;}

◆ IsUISessionCompatible()

G4bool G4VGraphicsSystem::IsUISessionCompatible ( ) const
virtual

Reimplemented in G4OpenGLQt, G4OpenGLXm, and G4OpenInventor.

Definition at line 68 of file G4VGraphicsSystem.cc.

69{
70 return true;
71}

Member Data Documentation

◆ fDescription

G4String G4VGraphicsSystem::fDescription
protected

Definition at line 90 of file G4VGraphicsSystem.hh.

Referenced by GetDescription().

◆ fFunctionality

Functionality G4VGraphicsSystem::fFunctionality
protected

Definition at line 91 of file G4VGraphicsSystem.hh.

Referenced by GetFunctionality().

◆ fName

G4String G4VGraphicsSystem::fName
protected

Definition at line 88 of file G4VGraphicsSystem.hh.

Referenced by GetName().

◆ fNicknames

std::vector<G4String> G4VGraphicsSystem::fNicknames
protected

Definition at line 89 of file G4VGraphicsSystem.hh.

Referenced by AddNickname(), G4VGraphicsSystem(), GetNickname(), and GetNicknames().

The documentation for this class was generated from the following files:
