#include <G4Ions.hh>

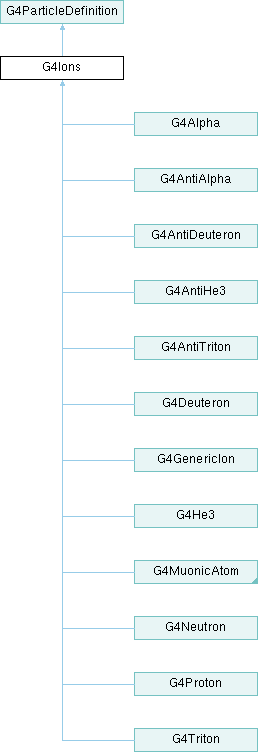

Inheritance diagram for G4Ions:

Public Types
enum class	G4FloatLevelBase { no_Float =0 , plus_X , plus_Y , plus_Z , plus_U , plus_V , plus_W , plus_R , plus_S , plus_T , plus_A , plus_B , plus_C , plus_D , plus_E }

Public Member Functions
	G4Ions (const G4String &aName, G4double mass, G4double width, G4double charge, G4int iSpin, G4int iParity, G4int iConjugation, G4int iIsospin, G4int iIsospin3, G4int gParity, const G4String &pType, G4int lepton, G4int baryon, G4int encoding, G4bool stable, G4double lifetime, G4DecayTable *decaytable, G4bool shortlived, const G4String &subType="", G4int anti_encoding=0, G4double excitation=0.0, G4int isomer=0)

virtual	~G4Ions ()

G4Ions *	IonsDefinition ()

G4Ions *	Ions ()

G4double	GetExcitationEnergy () const

G4int	GetIsomerLevel () const

G4Ions::G4FloatLevelBase	GetFloatLevelBase () const

G4int	GetFloatLevelBaseIndex () const

void	SetFloatLevelBase (G4Ions::G4FloatLevelBase flb)

void	SetFloatLevelBase (char flbChar)

void	SetFloatLevelBase (G4int flbIdx)

Public Member Functions inherited from G4ParticleDefinition
	G4ParticleDefinition (const G4String &aName, G4double mass, G4double width, G4double charge, G4int iSpin, G4int iParity, G4int iConjugation, G4int iIsospin, G4int iIsospinZ, G4int gParity, const G4String &pType, G4int lepton, G4int baryon, G4int encoding, G4bool stable, G4double lifetime, G4DecayTable *decaytable, G4bool shortlived=false, const G4String &subType="", G4int anti_encoding=0, G4double magneticMoment=0.0)

virtual	~G4ParticleDefinition ()

	G4ParticleDefinition (const G4ParticleDefinition &)=delete

G4ParticleDefinition &	operator= (const G4ParticleDefinition &)=delete

G4bool	operator== (const G4ParticleDefinition &right) const

G4bool	operator!= (const G4ParticleDefinition &right) const

const G4String &	GetParticleName () const

G4double	GetPDGMass () const

G4double	GetPDGWidth () const

G4double	GetPDGCharge () const

G4double	GetPDGSpin () const

G4int	GetPDGiSpin () const

G4int	GetPDGiParity () const

G4int	GetPDGiConjugation () const

G4double	GetPDGIsospin () const

G4double	GetPDGIsospin3 () const

G4int	GetPDGiIsospin () const

G4int	GetPDGiIsospin3 () const

G4int	GetPDGiGParity () const

G4double	GetPDGMagneticMoment () const

void	SetPDGMagneticMoment (G4double mageticMoment)

G4double	CalculateAnomaly () const

const G4String &	GetParticleType () const

const G4String &	GetParticleSubType () const

G4int	GetLeptonNumber () const

G4int	GetBaryonNumber () const

G4int	GetPDGEncoding () const

G4int	GetAntiPDGEncoding () const

void	SetAntiPDGEncoding (G4int aEncoding)

G4int	GetQuarkContent (G4int flavor) const

G4int	GetAntiQuarkContent (G4int flavor) const

G4bool	IsShortLived () const

G4bool	GetPDGStable () const

void	SetPDGStable (const G4bool aFlag)

G4double	GetPDGLifeTime () const

void	SetPDGLifeTime (G4double aLifeTime)

G4double	GetIonLifeTime () const

G4DecayTable *	GetDecayTable () const

void	SetDecayTable (G4DecayTable *aDecayTable)

G4ProcessManager *	GetProcessManager () const

void	SetProcessManager (G4ProcessManager *aProcessManager)

G4ParticleTable *	GetParticleTable () const

G4int	GetAtomicNumber () const

G4int	GetAtomicMass () const

void	DumpTable () const

void	SetVerboseLevel (G4int value)

G4int	GetVerboseLevel () const

void	SetApplyCutsFlag (G4bool)

G4bool	GetApplyCutsFlag () const

G4bool	IsGeneralIon () const

G4bool	IsMuonicAtom () const

G4ProcessManager *	GetMasterProcessManager () const

void	SetMasterProcessManager (G4ProcessManager *aNewPM)

G4int	GetInstanceID () const

void	SetParticleDefinitionID (G4int id=-1)

G4int	GetParticleDefinitionID () const

Static Public Member Functions
static G4Ions::G4FloatLevelBase	FloatLevelBase (char flbChar)

static G4Ions::G4FloatLevelBase	FloatLevelBase (G4int flbIdx)

static char	FloatLevelBaseChar (G4Ions::G4FloatLevelBase flb)

Static Public Member Functions inherited from G4ParticleDefinition
static const G4PDefManager &	GetSubInstanceManager ()

static void	Clean ()

Protected Member Functions
	G4Ions ()

Protected Member Functions inherited from G4ParticleDefinition
	G4ParticleDefinition ()

G4int	FillQuarkContents ()

void	SetParticleSubType (const G4String &subtype)

void	SetAtomicNumber (G4int)

void	SetAtomicMass (G4int)

Additional Inherited Members
Protected Types inherited from G4ParticleDefinition
enum	{ NumberOfQuarkFlavor = 6 }

Protected Attributes inherited from G4ParticleDefinition
G4int	theQuarkContent [NumberOfQuarkFlavor]

G4int	theAntiQuarkContent [NumberOfQuarkFlavor]

G4bool	isGeneralIon = false

G4bool	isMuonicAtom = false

Detailed Description

Definition at line 51 of file G4Ions.hh.

Member Enumeration Documentation

◆ G4FloatLevelBase

enum class G4Ions::G4FloatLevelBase

strong

Enumerator
no_Float
plus_X
plus_Y
plus_Z
plus_U
plus_V
plus_W
plus_R
plus_S
plus_T
plus_A
plus_B
plus_C
plus_D
plus_E

Definition at line 82 of file G4Ions.hh.

    {
      no_Float=0,
      plus_X, plus_Y, plus_Z, plus_U, plus_V, plus_W,
      plus_R, plus_S, plus_T, plus_A, plus_B, plus_C, plus_D, plus_E
    };

Constructor & Destructor Documentation

◆ G4Ions() [1/2]

G4Ions::G4Ions	(	const G4String &	aName,
		G4double	mass,
		G4double	width,
		G4double	charge,
		G4int	iSpin,
		G4int	iParity,
		G4int	iConjugation,
		G4int	iIsospin,
		G4int	iIsospin3,
		G4int	gParity,
		const G4String &	pType,
		G4int	lepton,
		G4int	baryon,
		G4int	encoding,
		G4bool	stable,
		G4double	lifetime,
		G4DecayTable *	decaytable,
		G4bool	shortlived,
		const G4String &	subType = `""`,
		G4int	anti_encoding = `0`,
		G4double	excitation = `0.0`,
		G4int	isomer = `0`
	)

Definition at line 43 of file G4Ions.cc.

  : G4ParticleDefinition( aName,mass,width,charge,iSpin,iParity,
                          iConjugation,iIsospin,iIsospin3,gParity,pType,
                          lepton,baryon,encoding,stable,lifetime,decaytable,
              shortlived, subType, anti_encoding),
    theExcitationEnergy(excitation),
    theIsomerLevel(isomer),
    floatLevelBase(G4FloatLevelBase::no_Float)
{
   if ((aName == "proton") || (aName == "neutron")) {
     isGeneralIon = false ;
   } else if (   (aName == "GenericIon") || (aName == "alpha")
       || (aName == "He3") || (aName == "deuteron")|| (aName == "triton")) {
     isGeneralIon = false ;
   } else if ( (aName == "anti_He3") || (aName == "anti_deuteron")
    || (aName == "anti_triton") || (aName == "anti_alpha") ) {
     isGeneralIon = false ;
   } else if ( (aName == "iron") || (aName == "oxygen") || (aName == "nitrogen")
        || (aName == "carbon") || (aName == "helium") || (aName == "alpha+")
        || (aName == "hydrogen") || (aName == "Ps-1s") || (aName == "Ps-2s")) {
     isGeneralIon = false ;
   } else {
     isGeneralIon = true;
   }

  // isomer level isset to 9
  // if isomer level is set to 0 for excited state
  //
  if ((theExcitationEnergy > 0.0) && (isomer==0)) isomer =9;

   if (GetAtomicNumber() == 0  )
   {
     // AtomicNumber/Mass is positive even for anti_nulceus
     SetAtomicNumber( std::abs(G4int(GetPDGCharge()/eplus)) );
     SetAtomicMass( std::abs(GetBaryonNumber()) );
   }
}

◆ ~G4Ions()

G4Ions::~G4Ions ( )

virtual

Definition at line 99 of file G4Ions.cc.

100{

101}

◆ G4Ions() [2/2]

G4Ions::G4Ions ( )

protected

Definition at line 95 of file G4Ions.cc.

96{

97}

Referenced by G4Neutron::Definition(), G4Proton::Definition(), G4Alpha::Definition(), G4AntiAlpha::Definition(), G4AntiDeuteron::Definition(), G4AntiHe3::Definition(), G4AntiTriton::Definition(), G4Deuteron::Definition(), G4GenericIon::Definition(), G4He3::Definition(), and G4Triton::Definition().

Member Function Documentation

◆ FloatLevelBase() [1/2]

G4Ions::G4FloatLevelBase G4Ions::FloatLevelBase ( char flbChar )

static

Definition at line 103 of file G4Ions.cc.

{
  G4Ions::G4FloatLevelBase flb = noFloat;
  switch(flbChar)
  {
   case 'x': case 'X':
    flb = plusX;
    break;
   case 'y': case 'Y':
    flb = plusY;
    break;
   case 'z': case 'Z':
    flb = plusZ;
    break;
   case 'u': case 'U':
    flb = plusU;
    break;
   case 'v': case 'V':
    flb = plusV;
    break;
   case 'w': case 'W':
    flb = plusW;
    break;
   case 'r': case 'R':
    flb = plusR;
    break;
   case 's': case 'S':
    flb = plusS;
    break;
   case 't': case 'T':
    flb = plusT;
    break;
   case 'a': case 'A':
    flb = plusA;
    break;
   case 'b': case 'B':
    flb = plusB;
    break;
   case 'c': case 'C':
    flb = plusC;
    break;
   case 'd': case 'D':
    flb = plusD;
    break;
   case 'e': case 'E':
    flb = plusE;
    break;
   case '\0': default:
    break;
  }
  return flb;
}

Referenced by G4ExcitationHandler::BreakItUp(), G4ITDecay::DecayIt(), G4IonTable::FindIon(), G4IonTable::GetIon(), G4IonTable::GetLifeTime(), G4RadioactiveDecay::LoadDecayTable(), G4RadioactiveDecayBase::LoadDecayTable(), SetFloatLevelBase(), and G4IsotopeProperty::SetFloatLevelBase().

◆ FloatLevelBase() [2/2]

G4Ions::G4FloatLevelBase G4Ions::FloatLevelBase ( G4int flbIdx )

static

Definition at line 156 of file G4Ions.cc.

{
  static G4Ions::G4FloatLevelBase flb[] =
  { noFloat,
    plusX, plusY, plusZ, plusU, plusV, plusW,
    plusR, plusS, plusT, plusA, plusB, plusC, plusD, plusE };
  return flb[flbIdx];
}

◆ FloatLevelBaseChar()

char G4Ions::FloatLevelBaseChar ( G4Ions::G4FloatLevelBase flb )

static

Definition at line 165 of file G4Ions.cc.

{
  static char flbChar[] = {'\0','X','Y','Z','U','V','W',
                                'R','S','T','A','B','C','D','E'};
  return flbChar[static_cast<G4int>(flb)];
}

Referenced by G4IonTable::CreateIon(), G4IsotopeProperty::DumpInfo(), and G4IonTable::GetIonName().

◆ GetExcitationEnergy()

G4double G4Ions::GetExcitationEnergy ( ) const

inline

Definition at line 145 of file G4Ions.hh.

{
  return theExcitationEnergy;
}

◆ GetFloatLevelBase()

G4Ions::G4FloatLevelBase G4Ions::GetFloatLevelBase ( ) const

inline

Definition at line 157 of file G4Ions.hh.

{
  return floatLevelBase;
}

◆ GetFloatLevelBaseIndex()

G4int G4Ions::GetFloatLevelBaseIndex ( ) const

inline

Definition at line 163 of file G4Ions.hh.

{
  return static_cast<G4int>(floatLevelBase);
}

◆ GetIsomerLevel()

G4int G4Ions::GetIsomerLevel ( ) const

inline

Definition at line 151 of file G4Ions.hh.

{
  return theIsomerLevel;
}

◆ Ions()

G4Ions * G4Ions::Ions ( )

inline

Definition at line 139 of file G4Ions.hh.

{
  return this;
}

◆ IonsDefinition()

G4Ions * G4Ions::IonsDefinition ( )

inline

Definition at line 133 of file G4Ions.hh.

{
  return this;
}

◆ SetFloatLevelBase() [1/3]

void G4Ions::SetFloatLevelBase ( char flbChar )

inline

Definition at line 175 of file G4Ions.hh.

{
  floatLevelBase = FloatLevelBase(flbChar);
}

◆ SetFloatLevelBase() [2/3]

void G4Ions::SetFloatLevelBase ( G4int flbIdx )

inline

Definition at line 181 of file G4Ions.hh.

{
  floatLevelBase = FloatLevelBase(flbIdx);
}

◆ SetFloatLevelBase() [3/3]

void G4Ions::SetFloatLevelBase ( G4Ions::G4FloatLevelBase flb )

inline

Definition at line 169 of file G4Ions.hh.

{
  floatLevelBase = flb;
}

Referenced by G4MuonicAtom::G4MuonicAtom().

The documentation for this class was generated from the following files:
