#include <HepRepAttribute.h>

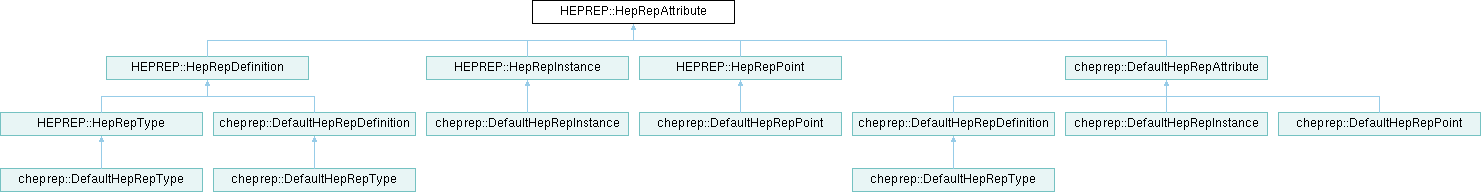

Inheritance diagram for HEPREP::HepRepAttribute:

Public Member Functions
virtual	~HepRepAttribute ()
	Destructor.

virtual void	addAttValue (HepRepAttValue *attValue)=0

virtual void	addAttValue (std::string key, char *value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, std::string value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, int64 value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, int value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, double value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, bool value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, std::vector< double > value, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual void	addAttValue (std::string key, double red, double green, double blue, double alpha=1.0, int showLabel=HepRepConstants::SHOW_NONE)=0

virtual HepRepAttValue *	removeAttValue (std::string key)=0

virtual HepRepAttValue *	getAttValue (std::string name)=0

virtual std::set< HepRepAttValue * >	getAttValuesFromNode ()=0

virtual HepRepAttValue *	getAttValueFromNode (std::string lowerCaseName)=0

Detailed Description

HepRepAttribute interface.

Author: Mark Donszelmann

Definition at line 29 of file HepRepAttribute.h.

Constructor & Destructor Documentation

◆ ~HepRepAttribute()

virtual HEPREP::HepRepAttribute::~HepRepAttribute ( )

inlinevirtual

Destructor.

Definition at line 33 of file HepRepAttribute.h.

33{ /* nop */; }

Member Function Documentation

◆ addAttValue() [1/9]

virtual void HEPREP::HepRepAttribute::addAttValue ( HepRepAttValue * attValue )

pure virtual

Adds an attValue.

Parameters

attValue to be added.

Implemented in cheprep::DefaultHepRepAttribute.

Referenced by G4HepRepSceneHandler::AddSolid().

◆ addAttValue() [2/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		bool	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds an attValue.

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [3/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		char *	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds a char* attValue as a String. This call should be mapped to addAttValue(std::string, std::string, int); and necessary because C++ converts char* into bool and would thus call addAttValue(std::string, bool, int) for a call such as addAttValue("drawAs", "Cylinder", 0);

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [4/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		double	red,
		double	green,
		double	blue,
		double	alpha = `1.0`,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds a Color attValue.

Parameters

key	name of attValue
red	color
green	color
blue	color
alpha	value
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [5/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		double	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds an attValue.

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [6/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		int	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds an attValue.

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [7/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		int64	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds an attValue.

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [8/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		std::string	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds an attValue.

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ addAttValue() [9/9]

virtual void HEPREP::HepRepAttribute::addAttValue	(	std::string	key,
		std::vector< double >	value,
		int	showLabel = `HepRepConstants::SHOW_NONE`
	)

pure virtual

Adds a Color attValue.

Parameters

key	name of attValue
value	value of attValue
showLabel	show this as label

Implemented in cheprep::DefaultHepRepAttribute.

◆ getAttValue()

virtual HepRepAttValue * HEPREP::HepRepAttribute::getAttValue ( std::string name )

pure virtual

Returns the attValue specified by name. This attValue is normally searched on the node itself and then on its type, moving up the typetree.

Parameters

name	of attribute value.

Returns: attribute value.

Implemented in cheprep::DefaultHepRepPoint, cheprep::DefaultHepRepInstance, cheprep::DefaultHepRepType, cheprep::DefaultHepRepAttribute, and cheprep::DefaultHepRepDefinition.

Referenced by cheprep::DefaultHepRepPoint::getAttValue(), and cheprep::DefaultHepRepInstance::getAttValue().

◆ getAttValueFromNode()

virtual HepRepAttValue * HEPREP::HepRepAttribute::getAttValueFromNode ( std::string lowerCaseName )

pure virtual

Returns a named attribute value from this node.

Parameters

lowerCaseName name in all lowercase.

Returns: corresponding HepRepAttValue.

Implemented in cheprep::DefaultHepRepAttribute.

Referenced by cheprep::DefaultHepRepType::getAttValue(), and cheprep::XMLHepRepWriter::write().

◆ getAttValuesFromNode()

virtual std::set< HepRepAttValue * > HEPREP::HepRepAttribute::getAttValuesFromNode ( )

pure virtual

Returns a collection of all attribute values from this node.

Returns: collection of HepRepAttValues.

Implemented in cheprep::DefaultHepRepAttribute.

Referenced by cheprep::XMLHepRepWriter::write().

◆ removeAttValue()

virtual HepRepAttValue * HEPREP::HepRepAttribute::removeAttValue ( std::string key )

pure virtual

Remove the attvalue named by key.

Parameters

key	name of the attValue to be removed.

Returns: removed HepRepAttValue, or null if not removed.

Implemented in cheprep::DefaultHepRepAttribute.

The documentation for this class was generated from the following file:

HepRepAttribute.h
