G4tgbMaterialMixture Class Reference

#include <G4tgbMaterialMixture.hh>

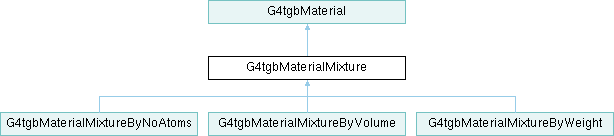

+ Inheritance diagram for G4tgbMaterialMixture:

Public Member Functions

 G4tgbMaterialMixture ()

virtual ~G4tgbMaterialMixture ()

virtual const G4String & GetComponent (G4int i) const

virtual G4double GetFraction (G4int i) const

G4tgbMaterialMixture & operator= (const G4tgbMaterialMixture &)

- Public Member Functions inherited from G4tgbMaterial
 G4tgbMaterial ()

virtual ~G4tgbMaterial ()

 G4tgbMaterial (G4tgrMaterial *tgr)

virtual G4Material * BuildG4Material ()=0

const G4String & GetName () const

G4double GetDensity () const

G4int GetNumberOfMaterials () const

G4double GetA () const

G4double GetZ () const

const G4String & GetType () const

G4tgrMaterial * GetTgrMate () const


Protected Member Functions

virtual void TransformToFractionsByWeight ()


Additional Inherited Members

- Protected Attributes inherited from G4tgbMaterial
G4tgrMaterial * theTgrMate = nullptr

G4Material * theG4Mate = nullptr


Detailed Description

Definition at line 40 of file G4tgbMaterialMixture.hh.

Constructor & Destructor Documentation

◆ G4tgbMaterialMixture()

G4tgbMaterialMixture::G4tgbMaterialMixture ( )

Definition at line 34 of file G4tgbMaterialMixture.cc.

35{
36}

◆ ~G4tgbMaterialMixture()

G4tgbMaterialMixture::~G4tgbMaterialMixture ( )
virtual

Definition at line 39 of file G4tgbMaterialMixture.cc.

40{
41}

Member Function Documentation

◆ GetComponent()

const G4String & G4tgbMaterialMixture::GetComponent ( G4int  i) const
virtual

Definition at line 44 of file G4tgbMaterialMixture.cc.

45{
46 return theTgrMate->GetComponent(i);
47}
G4tgbMaterial::theTgrMate
G4tgrMaterial * theTgrMate
Definition: G4tgbMaterial.hh:76
G4tgrMaterial::GetComponent
virtual const G4String & GetComponent(G4int i) const =0

Referenced by G4tgbMaterialMixtureByNoAtoms::BuildG4Material(), G4tgbMaterialMixtureByVolume::BuildG4Material(), G4tgbMaterialMixtureByWeight::BuildG4Material(), and G4tgbMaterialMixtureByVolume::TransformToFractionsByWeight().

◆ GetFraction()

G4double G4tgbMaterialMixture::GetFraction ( G4int  i) const
virtual

Definition at line 50 of file G4tgbMaterialMixture.cc.

51{
52 return theTgrMate->GetFraction(i);
53}
G4tgrMaterial::GetFraction
virtual G4double GetFraction(G4int i)=0

Referenced by G4tgbMaterialMixtureByNoAtoms::BuildG4Material(), G4tgbMaterialMixtureByWeight::BuildG4Material(), and G4tgbMaterialMixtureByVolume::TransformToFractionsByWeight().

◆ operator=()

G4tgbMaterialMixture & G4tgbMaterialMixture::operator= ( const G4tgbMaterialMixture &  )

Definition at line 57 of file G4tgbMaterialMixture.cc.

58{
59 return *this;
60}

◆ TransformToFractionsByWeight()

void G4tgbMaterialMixture::TransformToFractionsByWeight ( )
protectedvirtual

Reimplemented in G4tgbMaterialMixtureByNoAtoms, and G4tgbMaterialMixtureByVolume.

Definition at line 63 of file G4tgbMaterialMixture.cc.

64{
65}
The documentation for this class was generated from the following files:
