#include <G4eBremsstrahlungRelModel.hh>

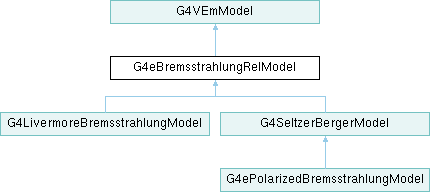

Inheritance diagram for G4eBremsstrahlungRelModel:

Public Member Functions
	G4eBremsstrahlungRelModel (const G4ParticleDefinition *p=0, const G4String &nam="eBremLPM")

virtual	~G4eBremsstrahlungRelModel ()

virtual void	Initialise (const G4ParticleDefinition *, const G4DataVector &) override

virtual void	InitialiseLocal (const G4ParticleDefinition , G4VEmModel masterModel) override

virtual G4double	ComputeDEDXPerVolume (const G4Material , const G4ParticleDefinition , G4double ekin, G4double cutEnergy) override

virtual G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double ekin, G4double zet, G4double, G4double cutEnergy, G4double maxEnergy=DBL_MAX) override

virtual void	SampleSecondaries (std::vector< G4DynamicParticle * > , const G4MaterialCutsCouple , const G4DynamicParticle *, G4double cutEnergy, G4double maxEnergy) override

virtual void	SetupForMaterial (const G4ParticleDefinition , const G4Material , G4double) override

virtual G4double	MinPrimaryEnergy (const G4Material , const G4ParticleDefinition , G4double cutEnergy) override

Public Member Functions inherited from G4VEmModel
	G4VEmModel (const G4String &nam)

virtual	~G4VEmModel ()

virtual void	Initialise (const G4ParticleDefinition *, const G4DataVector &)=0

virtual void	SampleSecondaries (std::vector< G4DynamicParticle * > , const G4MaterialCutsCouple , const G4DynamicParticle *, G4double tmin=0.0, G4double tmax=DBL_MAX)=0

virtual void	InitialiseLocal (const G4ParticleDefinition , G4VEmModel masterModel)

virtual void	InitialiseForMaterial (const G4ParticleDefinition , const G4Material )

virtual void	InitialiseForElement (const G4ParticleDefinition *, G4int Z)

virtual G4double	ComputeDEDXPerVolume (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

virtual G4double	CrossSectionPerVolume (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double	GetPartialCrossSection (const G4Material , G4int level, const G4ParticleDefinition , G4double kineticEnergy)

virtual G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition *, G4double kinEnergy, G4double Z, G4double A=0., G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double	ComputeCrossSectionPerShell (const G4ParticleDefinition *, G4int Z, G4int shellIdx, G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

virtual G4double	ChargeSquareRatio (const G4Track &)

virtual G4double	GetChargeSquareRatio (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)

virtual G4double	GetParticleCharge (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)

virtual void	StartTracking (G4Track *)

virtual void	CorrectionsAlongStep (const G4MaterialCutsCouple , const G4DynamicParticle , G4double &eloss, G4double &niel, G4double length)

virtual G4double	Value (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy)

virtual G4double	MinPrimaryEnergy (const G4Material , const G4ParticleDefinition , G4double cut=0.0)

virtual G4double	MinEnergyCut (const G4ParticleDefinition , const G4MaterialCutsCouple )

virtual void	SetupForMaterial (const G4ParticleDefinition , const G4Material , G4double kineticEnergy)

virtual void	DefineForRegion (const G4Region *)

virtual void	ModelDescription (std::ostream &outFile) const

void	InitialiseElementSelectors (const G4ParticleDefinition *, const G4DataVector &)

std::vector< G4EmElementSelector * > *	GetElementSelectors ()

void	SetElementSelectors (std::vector< G4EmElementSelector * > *)

virtual G4double	ComputeDEDX (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=DBL_MAX)

G4double	CrossSection (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double	ComputeMeanFreePath (const G4ParticleDefinition , G4double kineticEnergy, const G4Material , G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4double	ComputeCrossSectionPerAtom (const G4ParticleDefinition , const G4Element , G4double kinEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element *	SelectRandomAtom (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element *	SelectTargetAtom (const G4MaterialCutsCouple , const G4ParticleDefinition , G4double kineticEnergy, G4double logKineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

const G4Element *	SelectRandomAtom (const G4Material , const G4ParticleDefinition , G4double kineticEnergy, G4double cutEnergy=0.0, G4double maxEnergy=DBL_MAX)

G4int	SelectRandomAtomNumber (const G4Material *)

G4int	SelectIsotopeNumber (const G4Element *)

void	SetParticleChange (G4VParticleChange , G4VEmFluctuationModel f=nullptr)

void	SetCrossSectionTable (G4PhysicsTable *, G4bool isLocal)

G4ElementData *	GetElementData ()

G4PhysicsTable *	GetCrossSectionTable ()

G4VEmFluctuationModel *	GetModelOfFluctuations ()

G4VEmAngularDistribution *	GetAngularDistribution ()

G4VEmModel *	GetTripletModel ()

void	SetTripletModel (G4VEmModel *)

void	SetAngularDistribution (G4VEmAngularDistribution *)

G4double	HighEnergyLimit () const

G4double	LowEnergyLimit () const

G4double	HighEnergyActivationLimit () const

G4double	LowEnergyActivationLimit () const

G4double	PolarAngleLimit () const

G4double	SecondaryThreshold () const

G4bool	LPMFlag () const

G4bool	DeexcitationFlag () const

G4bool	ForceBuildTableFlag () const

G4bool	UseAngularGeneratorFlag () const

void	SetAngularGeneratorFlag (G4bool)

void	SetHighEnergyLimit (G4double)

void	SetLowEnergyLimit (G4double)

void	SetActivationHighEnergyLimit (G4double)

void	SetActivationLowEnergyLimit (G4double)

G4bool	IsActive (G4double kinEnergy) const

void	SetPolarAngleLimit (G4double)

void	SetSecondaryThreshold (G4double)

void	SetLPMFlag (G4bool val)

void	SetDeexcitationFlag (G4bool val)

void	SetForceBuildTable (G4bool val)

void	SetFluctuationFlag (G4bool val)

void	SetMasterThread (G4bool val)

G4bool	IsMaster () const

void	SetUseBaseMaterials (G4bool val)

G4bool	UseBaseMaterials () const

G4double	MaxSecondaryKinEnergy (const G4DynamicParticle *dynParticle)

const G4String &	GetName () const

void	SetCurrentCouple (const G4MaterialCutsCouple *)

const G4Element *	GetCurrentElement () const

const G4Isotope *	GetCurrentIsotope () const

G4bool	IsLocked () const

void	SetLocked (G4bool)

G4VEmModel &	operator= (const G4VEmModel &right)=delete

	G4VEmModel (const G4VEmModel &)=delete

Protected Member Functions
virtual G4double	ComputeDXSectionPerAtom (G4double gammaEnergy)

void	SetParticle (const G4ParticleDefinition *p)

Protected Member Functions inherited from G4VEmModel
G4ParticleChangeForLoss *	GetParticleChangeForLoss ()

G4ParticleChangeForGamma *	GetParticleChangeForGamma ()

virtual G4double	MaxSecondaryEnergy (const G4ParticleDefinition *, G4double kineticEnergy)

const G4MaterialCutsCouple *	CurrentCouple () const

void	SetCurrentElement (const G4Element *)

Protected Attributes
G4bool	fIsElectron

G4bool	fIsScatOffElectron

G4bool	fIsLPMActive

G4int	fCurrentIZ

G4double	fPrimaryParticleMass

G4double	fPrimaryKinEnergy

G4double	fPrimaryTotalEnergy

G4double	fDensityFactor

G4double	fDensityCorr

G4double	fLowestKinEnergy

G4double	fNucTerm

G4double	fSumTerm

const G4ParticleDefinition *	fPrimaryParticle

G4ParticleDefinition *	fGammaParticle

G4ParticleChangeForLoss *	fParticleChange

Protected Attributes inherited from G4VEmModel
G4ElementData *	fElementData

G4VParticleChange *	pParticleChange

G4PhysicsTable *	xSectionTable

const G4Material *	pBaseMaterial

const std::vector< G4double > *	theDensityFactor

const std::vector< G4int > *	theDensityIdx

size_t	idxTable

G4bool	lossFlucFlag

G4double	inveplus

G4double	pFactor

Static Protected Attributes
static const G4double	gBremFactor

static const G4double	gMigdalConstant

Detailed Description

Definition at line 59 of file G4eBremsstrahlungRelModel.hh.

Constructor & Destructor Documentation

◆ G4eBremsstrahlungRelModel()

G4eBremsstrahlungRelModel::G4eBremsstrahlungRelModel	(	const G4ParticleDefinition *	p = `0`,
		const G4String &	nam = `"eBremLPM"`
	)

explicit

Definition at line 116 of file G4eBremsstrahlungRelModel.cc.

: G4VEmModel(nam), fIsElectron(true), fIsScatOffElectron(false),
  fIsLPMActive(false), fPrimaryParticle(nullptr), fIsUseCompleteScreening(false)
{
  fCurrentIZ = 0;
  //
  fPrimaryParticleMass = 0.;
  fPrimaryKinEnergy    = 0.;
  fPrimaryTotalEnergy  = 0.;
  fDensityFactor       = 0.;
  fDensityCorr         = 0.;
  fNucTerm             = 0.;
  fSumTerm             = 0.;
  //
  fPrimaryParticle     = nullptr;
  fGammaParticle       = G4Gamma::Gamma();
  fParticleChange      = nullptr;
  //
  fLowestKinEnergy     = 1.0*MeV;
  SetLowEnergyLimit(fLowestKinEnergy);
  //
  fLPMEnergyThreshold  = 1.e+39;
  fLPMEnergy           = 0.;

  SetLPMFlag(true);
  //
  SetAngularDistribution(new G4ModifiedTsai());
  //SetAngularDistribution(new G4DipBustGenerator());
  //
  if (p) {
    SetParticle(p);
  }
}

◆ ~G4eBremsstrahlungRelModel()

G4eBremsstrahlungRelModel::~G4eBremsstrahlungRelModel ( )

virtual

Definition at line 151 of file G4eBremsstrahlungRelModel.cc.

{
  if (IsMaster()) {
    // clear ElementData container
    for (size_t iz = 0; iz < gElementData.size(); ++iz) {
      if (gElementData[iz]) {
        delete gElementData[iz];
      }
    }
    gElementData.clear();
    // clear LPMFunctions (if any)
    if (LPMFlag()) {
      gLPMFuncs.fLPMFuncG.clear();
      gLPMFuncs.fLPMFuncPhi.clear();
      gLPMFuncs.fIsInitialized = false;
    }
  }
}

Member Function Documentation

◆ ComputeCrossSectionPerAtom()

G4double G4eBremsstrahlungRelModel::ComputeCrossSectionPerAtom	(	const G4ParticleDefinition *	p,
		G4double	ekin,
		G4double	zet,
		G4double	,
		G4double	cutEnergy,
		G4double	maxEnergy = `DBL_MAX`
	)

overridevirtual

Reimplemented from G4VEmModel.

Definition at line 325 of file G4eBremsstrahlungRelModel.cc.

{
  G4double crossSection = 0.0;
  if (!fPrimaryParticle) {
    SetParticle(p);
  }
  if (kineticEnergy < LowEnergyLimit()) {
    return crossSection;
  }
  // min/max kinetic energy limits of the DCS integration:
  const G4double tmin = std::min(cut, kineticEnergy);
  const G4double tmax = std::min(maxEnergy, kineticEnergy);
  // zero restricted x-section if e- kinetic energy is below gamma cut
  if (tmin >= tmax) {
    return crossSection;
  }
  fCurrentIZ   = std::min(G4lrint(Z), gMaxZet);
  // integrate numerically (dependent part of) the DCS between the kin. limits:
  // a. integrate between tmin and kineticEnergy of the e-
  crossSection = ComputeXSectionPerAtom(tmin);
  // allow partial integration: only if maxEnergy < kineticEnergy
  // b. integrate between tmax and kineticEnergy (tmax=maxEnergy in this case)
  // (so the result in this case is the integral of DCS between tmin and
  // maxEnergy)
  if (tmax < kineticEnergy) {
    crossSection -= ComputeXSectionPerAtom(tmax);
  }
  // multiply with the constant factors: 16\alpha r_0^2/3 Z^2
  crossSection *= Z*Z*gBremFactor;
  return std::max(crossSection, 0.);
}

◆ ComputeDEDXPerVolume()

G4double G4eBremsstrahlungRelModel::ComputeDEDXPerVolume	(	const G4Material *	material,
		const G4ParticleDefinition *	p,
		G4double	ekin,
		G4double	cutEnergy
	)

overridevirtual

Reimplemented from G4VEmModel.

Definition at line 241 of file G4eBremsstrahlungRelModel.cc.

{
  G4double dedx = 0.0;
  if (!fPrimaryParticle) {
    SetParticle(p);
  }
  if (kineticEnergy < LowEnergyLimit()) {
    return dedx;
  }
  // maximum value of the dE/dx integral (the minimum is 0 of course)
  G4double tmax = std::min(cutEnergy, kineticEnergy);
  if (tmax == 0.0) {
    return dedx;
  }
  // sets kinematical and material related variables
  SetupForMaterial(fPrimaryParticle, material,kineticEnergy);
  // get element compositions of the material
  const G4ElementVector* theElemVector = material->GetElementVector();
  const G4double* theAtomNumDensVector = material->GetAtomicNumDensityVector();
  const size_t        numberOfElements = theElemVector->size();
  // loop over the elements of the material and compute their contributions to
  // the restricted dE/dx by numerical integration of the dependent part of DCS
  for (size_t ie = 0; ie < numberOfElements; ++ie) {
    G4VEmModel::SetCurrentElement((*theElemVector)[ie]);
    //SetCurrentElement((*theElementVector)[i]->GetZasInt());
    const G4double zet = (*theElemVector)[ie]->GetZ();
    fCurrentIZ         = std::min(G4lrint(zet), gMaxZet);
    dedx              += theAtomNumDensVector[ie]*zet*zet*ComputeBremLoss(tmax);
  }
  // apply the constant factor C/Z = 16\alpha r_0^2/3
  dedx *= gBremFactor;
  return std::max(dedx,0.);
}

◆ ComputeDXSectionPerAtom()

G4double G4eBremsstrahlungRelModel::ComputeDXSectionPerAtom ( G4double gammaEnergy )

protectedvirtual

Reimplemented in G4LivermoreBremsstrahlungModel, and G4SeltzerBergerModel.

Definition at line 481 of file G4eBremsstrahlungRelModel.cc.

{
  G4double dxsec = 0.0;
  if (gammaEnergy < 0.) {
    return dxsec;
  }
  const G4double y         = gammaEnergy/fPrimaryTotalEnergy;
  const G4double onemy     = 1.-y;
  const G4double dum0      = onemy+0.75*y*y;
  const ElementData* elDat = gElementData[fCurrentIZ];
  // use complete screening and L_el, L_inel from Dirac-Fock model instead of TF
  if (fCurrentIZ < 5 || fIsUseCompleteScreening) {
    dxsec  = dum0*elDat->fZFactor1;
    dxsec += onemy*elDat->fZFactor2;
    if (fIsScatOffElectron) {
      fSumTerm = dxsec;
      fNucTerm = dum0*elDat->fZFactor11+onemy/12.;
    }
  } else {
    // use Tsai's analytical approx. (Tsai Eqs. [3.38-3.41]) to the 'universal'
    // numerical screening functions computed by using the TF model of the atom
    const G4double invZ    = 1./(G4double)fCurrentIZ;
    const G4double Fz      = elDat->fFz;
    const G4double logZ    = elDat->fLogZ;
    const G4double dum1    = y/(fPrimaryTotalEnergy-gammaEnergy);
    const G4double gamma   = dum1*elDat->fGammaFactor;
    const G4double epsilon = dum1*elDat->fEpsilonFactor;
    // evaluate the screening functions
    G4double phi1, phi1m2, psi1, psi1m2;
    ComputeScreeningFunctions(phi1, phi1m2, psi1, psi1m2, gamma, epsilon);
    dxsec  = dum0*((0.25*phi1-Fz) + (0.25*psi1-2.*logZ/3.)*invZ);
    dxsec += 0.125*onemy*(phi1m2 + psi1m2*invZ);
    if (fIsScatOffElectron) {
      fSumTerm = dxsec;
      fNucTerm = dum0*(0.25*phi1-Fz) + 0.125*onemy*phi1m2;
    }
  }
  return std::max(dxsec,0.0);
}

Referenced by SampleSecondaries().

◆ Initialise()

void G4eBremsstrahlungRelModel::Initialise	(	const G4ParticleDefinition *	p,
		const G4DataVector &	cuts
	)

overridevirtual

Implements G4VEmModel.

Reimplemented in G4LivermoreBremsstrahlungModel, G4ePolarizedBremsstrahlungModel, and G4SeltzerBergerModel.

Definition at line 170 of file G4eBremsstrahlungRelModel.cc.

{
  if (p) {
    SetParticle(p);
  }
  fCurrentIZ = 0;
  // init element data and precompute LPM functions (only if lpmflag is true)
  if (IsMaster()) {
    InitialiseElementData();
    if (LPMFlag()) { InitLPMFunctions(); }
    if (LowEnergyLimit() < HighEnergyLimit()) {
      InitialiseElementSelectors(p, cuts);
    }
  }
  if (!fParticleChange) { fParticleChange = GetParticleChangeForLoss(); }
  if (GetTripletModel()) {
    GetTripletModel()->Initialise(p, cuts);
    fIsScatOffElectron = true;
  }
}

Referenced by G4LivermoreBremsstrahlungModel::Initialise().

◆ InitialiseLocal()

void G4eBremsstrahlungRelModel::InitialiseLocal	(	const G4ParticleDefinition *	,
		G4VEmModel *	masterModel
	)

overridevirtual

Reimplemented from G4VEmModel.

Definition at line 192 of file G4eBremsstrahlungRelModel.cc.

{
  if (LowEnergyLimit() < HighEnergyLimit()) {
    SetElementSelectors(masterModel->GetElementSelectors());
  }
}

◆ MinPrimaryEnergy()

G4double G4eBremsstrahlungRelModel::MinPrimaryEnergy	(	const G4Material *	,
		const G4ParticleDefinition *	,
		G4double	cutEnergy
	)

overridevirtual

Reimplemented from G4VEmModel.

Definition at line 231 of file G4eBremsstrahlungRelModel.cc.

{
  return std::max(fLowestKinEnergy, cut);
}

◆ SampleSecondaries()

void G4eBremsstrahlungRelModel::SampleSecondaries	(	std::vector< G4DynamicParticle * > *	vdp,
		const G4MaterialCutsCouple *	couple,
		const G4DynamicParticle *	dp,
		G4double	cutEnergy,
		G4double	maxEnergy
	)

overridevirtual

Implements G4VEmModel.

Reimplemented in G4LivermoreBremsstrahlungModel, G4SeltzerBergerModel, and G4ePolarizedBremsstrahlungModel.

Definition at line 545 of file G4eBremsstrahlungRelModel.cc.

{
  const G4double kineticEnergy    = dp->GetKineticEnergy();
//  const G4double logKineticEnergy = dp->GetLogKineticEnergy();
  if (kineticEnergy < LowEnergyLimit()) {
    return;
  }
  // min, max kinetic energy limits
  const G4double tmin = std::min(cutEnergy, kineticEnergy);
  const G4double tmax = std::min(maxEnergy, kineticEnergy);
  if (tmin >= tmax) {
    return;
  }
  //
  SetupForMaterial(fPrimaryParticle, couple->GetMaterial(), kineticEnergy);
  const G4Element* elm = SelectTargetAtom(couple,fPrimaryParticle,kineticEnergy,
                                          dp->GetLogKineticEnergy(),tmin,tmax);
  //
  fCurrentIZ = elm->GetZasInt();
  const ElementData* elDat = gElementData[fCurrentIZ];
  const G4double funcMax = elDat->fZFactor1+elDat->fZFactor2;
  // get the random engine
  G4double rndm[2];
  CLHEP::HepRandomEngine* rndmEngine = G4Random::getTheEngine();
  // min max of the transformed variable: x(k) = ln(k^2+k_p^2) that is in [ln(k_c^2+k_p^2), ln(E_k^2+k_p^2)]
  const G4double xmin   = G4Log(tmin*tmin+fDensityCorr);
  const G4double xrange = G4Log(tmax*tmax+fDensityCorr)-xmin;
  G4double gammaEnergy, funcVal;
  do {
    rndmEngine->flatArray(2, rndm);
    gammaEnergy = std::sqrt(std::max(G4Exp(xmin+rndm[0]*xrange)-fDensityCorr, 0.0));
    funcVal     = fIsLPMActive
                 ? ComputeRelDXSectionPerAtom(gammaEnergy)
                 : ComputeDXSectionPerAtom(gammaEnergy);
    // cross-check of proper function maximum in the rejection
//    if (funcVal > funcMax) {
//      G4cout << "### G4eBremsstrahlungRelModel Warning: Majoranta exceeded! "
//       << funcVal << " > " << funcMax
//       << " Egamma(MeV)= " << gammaEnergy
//       << " Ee(MeV)= " << kineticEnergy
//       << "  " << GetName()
//       << G4endl;
//    }
    // Loop checking, 03-Aug-2015, Vladimir Ivanchenko
  } while (funcVal < funcMax*rndm[1]);
  //
  // scattering off nucleus or off e- by triplet model
  if (fIsScatOffElectron && rndmEngine->flat()*fSumTerm>fNucTerm) {
    GetTripletModel()->SampleSecondaries(vdp, couple, dp, cutEnergy, maxEnergy);
    return;
  }
  //
  // angles of the emitted gamma. ( Z - axis along the parent particle)
  // use general interface
  G4ThreeVector gamDir =
    GetAngularDistribution()->SampleDirection(dp,fPrimaryTotalEnergy-gammaEnergy,
                                              fCurrentIZ, couple->GetMaterial());
  // create G4DynamicParticle object for the Gamma
  G4DynamicParticle* gamma = new G4DynamicParticle(fGammaParticle, gamDir,
                                                   gammaEnergy);
  vdp->push_back(gamma);
  // compute post-interaction kinematics of primary e-/e+ based on
  // energy-momentum conservation
  const G4double totMomentum = std::sqrt(kineticEnergy*(
                               fPrimaryTotalEnergy + CLHEP::electron_mass_c2));
  G4ThreeVector dir =
             (totMomentum*dp->GetMomentumDirection()-gammaEnergy*gamDir).unit();
  const G4double finalE   = kineticEnergy-gammaEnergy;
  // if secondary gamma energy is higher than threshold(very high by default)
  // then stop tracking the primary particle and create new secondary e-/e+
  // instead of the primary one
  if (gammaEnergy > SecondaryThreshold()) {
    fParticleChange->ProposeTrackStatus(fStopAndKill);
    fParticleChange->SetProposedKineticEnergy(0.0);
    G4DynamicParticle* el = new G4DynamicParticle(
              const_cast<G4ParticleDefinition*>(fPrimaryParticle), dir, finalE);
    vdp->push_back(el);
  } else { // continue tracking the primary e-/e+ otherwise
    fParticleChange->SetProposedMomentumDirection(dir);
    fParticleChange->SetProposedKineticEnergy(finalE);
  }
}

◆ SetParticle()

void G4eBremsstrahlungRelModel::SetParticle ( const G4ParticleDefinition * p )

protected

Definition at line 200 of file G4eBremsstrahlungRelModel.cc.

{
  fPrimaryParticle     = p;
  fPrimaryParticleMass = p->GetPDGMass();
  fIsElectron          = (p==G4Electron::Electron());
}

Referenced by ComputeCrossSectionPerAtom(), ComputeDEDXPerVolume(), G4eBremsstrahlungRelModel(), Initialise(), and G4SeltzerBergerModel::Initialise().

◆ SetupForMaterial()

void G4eBremsstrahlungRelModel::SetupForMaterial	(	const G4ParticleDefinition *	,
		const G4Material *	mat,
		G4double	kineticEnergy
	)

overridevirtual

Reimplemented from G4VEmModel.

Reimplemented in G4SeltzerBergerModel.

Definition at line 210 of file G4eBremsstrahlungRelModel.cc.

{
  fDensityFactor = gMigdalConstant*mat->GetElectronDensity();
  fLPMEnergy     = gLPMconstant*mat->GetRadlen();
  // threshold for LPM effect (i.e. below which LPM hidden by density effect)
  if (LPMFlag()) {
    fLPMEnergyThreshold = std::sqrt(fDensityFactor)*fLPMEnergy;
  } else {
    fLPMEnergyThreshold = 1.e+39;   // i.e. do not use LPM effect
  }
  // calculate threshold for density effect: k_p = sqrt(fDensityCorr)
  fPrimaryKinEnergy   = kineticEnergy;
  fPrimaryTotalEnergy = kineticEnergy+fPrimaryParticleMass;
  fDensityCorr        = fDensityFactor*fPrimaryTotalEnergy*fPrimaryTotalEnergy;
  // set activation flag for LPM effects in the DCS
  fIsLPMActive        = (fPrimaryTotalEnergy>fLPMEnergyThreshold);
}
