#include <HeedChamber.hh>

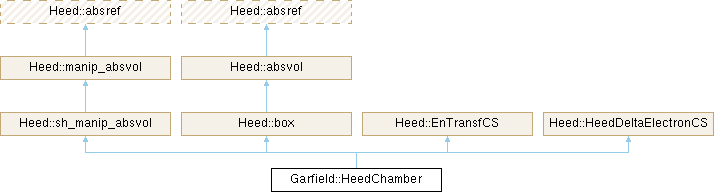

Inheritance diagram for Garfield::HeedChamber:

Public Member Functions
	HeedChamber (const Heed::abssyscoor &fcsys, const double dx, const double dy, const double dz, const Heed::EnTransfCS &etcs, const Heed::HeedDeltaElectronCS &hdecs)

Garfield::HeedChamber *	copy () const override

absvol *	Gavol () const override
	Get the volume.

Public Member Functions inherited from Heed::sh_manip_absvol
virtual const abssyscoor *	Gasc () const override
	Get the coordinate system.

void	Psc (const fixsyscoor &fcsys)

	sh_manip_absvol ()

	sh_manip_absvol (sh_manip_absvol &f)

	sh_manip_absvol (const sh_manip_absvol &f)

	sh_manip_absvol (const abssyscoor &f)

	sh_manip_absvol (const point &fc, const basis &fbas, const std::string &fname)

virtual	~sh_manip_absvol ()

virtual void	m_chname (char *nm) const

virtual void	m_print (std::ostream &file, int l) const override

sh_manip_absvol *	copy () const

Public Member Functions inherited from Heed::manip_absvol
virtual absvol *	Gavol () const =0
	Get the volume.

virtual const abssyscoor *	Gasc () const
	Get the coordinate system.

virtual int	m_check_point_inside (const point &fpt, const vec &dir) const

virtual int	m_find_embed_vol (const point &fpt, const vec &fdir, manip_absvol_treeid *atid) const

virtual int	m_range (trajestep &fts, int s_ext, int &sb, manip_absvol *&faeid) const

virtual int	m_range_ext (trajestep &fts, int s_ext) const

void	down_absref (absref *f) const

void	up_absref (absref *f) const

void	m_chname (char *nm) const

virtual void	m_print (std::ostream &file, int l) const

manip_absvol *	copy () const

virtual	~manip_absvol ()

Public Member Functions inherited from Heed::absref
virtual	~absref ()
	Destructor.

virtual void	down (const abssyscoor *fasc)
	Convert numbering representation of object to basical system of fasc.

virtual void	up (const abssyscoor *fasc)
	Convert numbering representation of objects to new system.

virtual void	turn (const vec &dir, vfloat angle)
	Turn around axis doing via center of coordinate system along dir.

virtual void	shift (const vec &dir)

Public Member Functions inherited from Heed::box
	box ()
	Default constructor.

	box (vfloat fdx, vfloat fdy, vfloat fdz, const std::string &fname)

	box (vfloat fdx, vfloat fdy, vfloat fdz, vfloat fprec, const std::string &fname)
	Constructor with user-provided precision.

	box (box &fb)

	box (const box &fb)

virtual	~box ()
	Destructor.

void	init_prec ()

void	init_planes ()

int	check_point_inside (const point &fpt, const vec &dir) const override

int	range_ext (trajestep &fts, int s_ext) const override
	Range till exit from given volume or to entry only.

void	income (gparticle *gp) override

void	chname (char *nm) const override

void	print (std::ostream &file, int l) const override

box *	copy () const override

Public Member Functions inherited from Heed::absvol
virtual	~absvol ()
	Destructor.

virtual int	check_point_inside (const point &fpt, const vec &dir) const =0

virtual int	find_embed_vol (const point &fpt, const vec &dir, manip_absvol_treeid *atid) const

virtual int	range (trajestep &fts, int s_ext, int &sb, manip_absvol *&faeid) const

virtual int	range_ext (trajestep &fts, int s_ext) const =0

virtual void	income (gparticle *)

virtual void	chname (char *nm) const

virtual void	print (std::ostream &file, int l) const

virtual absvol *	copy () const

virtual std::vector< manip_absvol * >	Gamanip_embed () const

Public Member Functions inherited from Heed::EnTransfCS
	EnTransfCS ()=default
	Default constructor.

	EnTransfCS (double fparticle_mass, double fgamma_1, bool fs_primary_electron, HeedMatterDef *fhmd, long fparticle_charge=1)
	Constructor.

void	print (std::ostream &file, int l) const

EnTransfCS *	copy () const

Public Member Functions inherited from Heed::HeedDeltaElectronCS
	HeedDeltaElectronCS ()
	Default constructor.

	HeedDeltaElectronCS (HeedMatterDef fhmd, ElElasticScat fees, ElElasticScatLowSigma feesls, PairProd fpairprod, int fsruth=2, double fmlambda=0.001 *4.0e-3, double fmthetac=0.1)
	Constructor.

double	get_sigma (double energy, double nscat) const

void	print (std::ostream &file, int l) const

HeedDeltaElectronCS *	copy () const

Protected Member Functions
Heed::absref_transmit	get_components () override

virtual absref_transmit	get_components () override

Protected Member Functions inherited from Heed::box
absref_transmit	get_components () override

Additional Inherited Members
Public Attributes inherited from Heed::box
vfloat	m_dx

vfloat	m_dy

vfloat	m_dz
	Lengths of sides.

vfloat	m_dxh

vfloat	m_dyh

vfloat	m_dzh
	Half-lengths of sides.

ulsvolume	m_ulsv

std::string	m_name

Public Attributes inherited from Heed::absvol
vfloat	prec

bool	s_sensitive

Public Attributes inherited from Heed::EnTransfCS
double	particle_mass = 0.
	Particle mass [MeV].

long	particle_charge = 0
	Charge in units of electron charge (used square, sign does not matter).

double	gamma_1 = 0.
	Lorentz factor - 1 (the best dimensionless measurement of speed).

double	max_etransf = 0.
	Max. energy transfer [MeV].

bool	s_simple_form = true

bool	s_primary_electron = false
	Flag indicating whether the primary particle is an electron.

HeedMatterDef *	hmd = nullptr

std::vector< double >	log1C
	common first log without cs

std::vector< double >	log2C
	common second log without cs

std::vector< double >	chereC
	Cherenkov's radiation.

std::vector< double >	chereCangle
	angle of Cherenkov's radiation

std::vector< double >	Rruth
	term called R in my paper

std::vector< double >	addaC
	Sum of (ionization) differential cross-section terms.

double	quanC = 0.
	Integrated (ionization) cross-section.

double	meanC = 0.

double	meanC1 = 0.

std::vector< std::vector< std::vector< double > > >	cher

std::vector< std::vector< std::vector< double > > >	fruth
	Rutherford term.

std::vector< std::vector< std::vector< double > > >	adda
	Sum.

std::vector< std::vector< std::vector< double > > >	fadda
	Integral, normalised to unity.

std::vector< std::vector< double > >	quan
	Number of collisions / cm, for each atom and shell.

std::vector< std::vector< double > >	mean
	First moment, for each atom and shell.

std::vector< double >	length_y0

Public Attributes inherited from Heed::HeedDeltaElectronCS
HeedMatterDef *	hmd = nullptr

ElElasticScat *	ees = nullptr

ElElasticScatLowSigma *	eesls = nullptr

PairProd *	pairprod = nullptr

std::vector< double >	beta
	Table of velocities.

std::vector< double >	momentum
	Table of momenta [MeV/c].

std::vector< double >	eLoss

double	mlambda

std::vector< double >	lambda

std::vector< double >	low_lambda

int	sruth

double	mthetac

std::vector< double >	angular_mesh_c
	Angular mesh, centers, angles in degrees.

std::vector< PointsRan >	angular_points_ran

std::vector< PointsRan >	low_angular_points_ran

std::vector< double >	mean_coef_low_sigma

Static Public Attributes inherited from Heed::HeedDeltaElectronCS
static constexpr long	q_angular_mesh = 50

static constexpr double	low_cut_angle_deg = 20.

Protected Attributes inherited from Heed::sh_manip_absvol
fixsyscoor	csys

absref *	aref_ptr [1]

Detailed Description

Definition at line 13 of file HeedChamber.hh.

Constructor & Destructor Documentation

◆ HeedChamber()

Garfield::HeedChamber::HeedChamber	(	const Heed::abssyscoor &	fcsys,
		const double	dx,
		const double	dy,
		const double	dz,
		const Heed::EnTransfCS &	etcs,
		const Heed::HeedDeltaElectronCS &	hdecs
	)

inline

Definition at line 19 of file HeedChamber.hh.

      : Heed::sh_manip_absvol(fcsys),
        Heed::box(dx * Heed::CLHEP::cm,
                  dy * Heed::CLHEP::cm,
                  dz * Heed::CLHEP::cm, "chamber"),
        Heed::EnTransfCS(etcs),
        Heed::HeedDeltaElectronCS(hdecs) {

    s_sensitive = true;
  }

Member Function Documentation

◆ copy()

Garfield::HeedChamber * Garfield::HeedChamber::copy ( ) const

inlineoverridevirtual

Reimplemented from Heed::absvol.

Definition at line 32 of file HeedChamber.hh.

                                             {
    return new Garfield::HeedChamber(*this);
  }

◆ Gavol()

absvol * Garfield::HeedChamber::Gavol ( ) const

inlineoverridevirtual

Get the volume.

Implements Heed::manip_absvol.

Definition at line 35 of file HeedChamber.hh.

35{ return (Heed::box*)this; }

◆ get_components()

Heed::absref_transmit Garfield::HeedChamber::get_components ( )

inlineoverrideprotectedvirtual

Reimplemented from Heed::sh_manip_absvol.

Definition at line 38 of file HeedChamber.hh.

                                                {
    return sh_manip_absvol::get_components();
  }

The documentation for this class was generated from the following file:

HeedChamber.hh
