MdcTrackListBase Class Reference

#include <MdcTrackListBase.h>

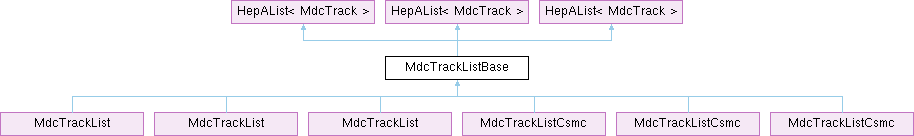

Inheritance diagram for MdcTrackListBase:

Public Member Functions
	MdcTrackListBase (const MdcTrackParams &tkPar)
virtual	~MdcTrackListBase ()
int	nTrack () const
void	setPlot (int plotFlag)
void	newParams (const MdcTrackParams &tkPar)
void	plot () const
void	store (RecMdcTrackCol *, RecMdcHitCol *)
virtual int	createFromSegs (MdcSegList *, const MdcHitMap *, const MdcDetector *, TrkContext &, double bunchTime)=0
int	arbitrateHits ()
void	dropMultiHotInLayer (const MdcTrack *tk)
void	remove (MdcTrack *atrack)
void	setD0Cut (double d0Cut)
void	setZ0Cut (double z0Cut)
void	setPtCut (double ptCut)
void	setNoInner (bool noInnerFlag)
	MdcTrackListBase (const MdcTrackParams &tkPar)
virtual	~MdcTrackListBase ()
int	nTrack () const
void	setPlot (int plotFlag)
void	newParams (const MdcTrackParams &tkPar)
void	plot () const
void	store (RecMdcTrackCol *, RecMdcHitCol *)
virtual int	createFromSegs (MdcSegList *, const MdcHitMap *, const MdcDetector *, TrkContext &, double bunchTime)=0
int	arbitrateHits ()
void	dropMultiHotInLayer (const MdcTrack *tk)
void	remove (MdcTrack *atrack)
void	setD0Cut (double d0Cut)
void	setZ0Cut (double z0Cut)
void	setPtCut (double ptCut)
void	setNoInner (bool noInnerFlag)
	MdcTrackListBase (const MdcTrackParams &tkPar)
virtual	~MdcTrackListBase ()
int	nTrack () const
void	setPlot (int plotFlag)
void	newParams (const MdcTrackParams &tkPar)
void	plot () const
void	store (RecMdcTrackCol *, RecMdcHitCol *)
virtual int	createFromSegs (MdcSegList *, const MdcHitMap *, const MdcDetector *, TrkContext &, double bunchTime)=0
int	arbitrateHits ()
void	dropMultiHotInLayer (const MdcTrack *tk)
void	remove (MdcTrack *atrack)
void	setD0Cut (double d0Cut)
void	setZ0Cut (double z0Cut)
void	setPtCut (double ptCut)
void	setNoInner (bool noInnerFlag)

Static Public Attributes
static double	m_d0Cut = -999.
static double	m_z0Cut = -999.
static double	m_ptCut = -999.

Protected Attributes
MdcTrackParams	tkParam
bool	m_noInner

Detailed Description

Definition at line 33 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

Constructor & Destructor Documentation

MdcTrackListBase() [1/3]

MdcTrackListBase::MdcTrackListBase

(

const MdcTrackParams &

tkPar

)

Definition at line 62 of file MdcTrackListBase.cxx.

                                                                {
  //*************************************************************************
  tkParam   = tkPar;
  m_noInner = false;
  return;
}

Referenced by MdcTrackList::MdcTrackList(), and MdcTrackListCsmc::MdcTrackListCsmc().

~MdcTrackListBase() [1/3]

MdcTrackListBase::~MdcTrackListBase ( )

virtual

Definition at line 70 of file MdcTrackListBase.cxx.

{}

MdcTrackListBase() [2/3]

MdcTrackListBase::MdcTrackListBase

(

const MdcTrackParams &

tkPar

)

~MdcTrackListBase() [2/3]

virtual MdcTrackListBase::~MdcTrackListBase ( )

virtual

MdcTrackListBase() [3/3]

MdcTrackListBase::MdcTrackListBase

(

const MdcTrackParams &

tkPar

)

~MdcTrackListBase() [3/3]

virtual MdcTrackListBase::~MdcTrackListBase ( )

virtual

Member Function Documentation

arbitrateHits() [1/3]

int MdcTrackListBase::arbitrateHits

(

)

Definition at line 103 of file MdcTrackListBase.cxx.

                                    {
  //*************************************************************************
  // Look at all hits used in two or more tracks.  Assign hits to the track
  // that gives the lower residual.  If, however, many hits are shared by
  // a pair of tracks, assign them all to one or the other.
  // Refit any tracks that have had hits dropped.
  // The implementation is very clumsy, since the arrays were originally
  // indexed by id # => there is an unneeded layer of indexing.

  // return # of tracks deleted

  if ( 8 == tkParam.lPrint )
  { std::cout << "=======Print before arbitrateHits=======" << std::endl; }

  int                    nDeleted = 0;
  std::vector<MdcTrack*> trksToKill;
  trksToKill.reserve( 4 );

  MdcMap<long, long> idMap;

  // usedInTrackNum records how many shared hits track has with each other track
  int* usedInTrackNum = new int[nTrack()];
  // to navigate from track id # to track pointer:
  MdcTrack** trkXRef = new MdcTrack*[nTrack()];
  // refitTrack flags track id #s of tracks to be refit
  int* refitTrack = new int[nTrack()];
  for ( int i = 0; i < nTrack(); i++ ) { refitTrack[i] = 0; }

  // Fill xref table
  int itrack;
  for ( itrack = 0; itrack < nTrack(); itrack++ )
  {
    MdcTrack* atrack = ( *this )[itrack];
    if ( atrack == 0 ) continue; // I don't think it can be, but . . .
    idMap.put( atrack->track().id(), itrack );
    trkXRef[itrack] = atrack;
  }
  // Loop through the tracks
  for ( itrack = 0; itrack < nTrack(); itrack++ )
  {

    if ( 8 == tkParam.lPrint ) std::cout << "arbitrate track No." << itrack << std::endl;
    MdcTrack* atrack = ( *this )[itrack];
    if ( atrack == 0 ) continue;
    TrkRecoTrk&   aRecoTrk = atrack->track();
    int           lRefit   = 0;
    int           trackOld = -1;
    const TrkFit* tkFit    = aRecoTrk.fitResult();
    assert( tkFit != 0 );
    TrkHitList* hitList = aRecoTrk.hits();
    assert( hitList != 0 );
  restart:
    for ( int ii = 0; ii < nTrack(); ii++ ) usedInTrackNum[ii] = 0;

    // Loop through hits on track, counting # used in other tracks
    int nPrev        = 0;
    int nHitDeleted  = 0;
    int maxGapLength = 0;   // yzhang 2011-07-29 # of max continuous no hits layer for a track,
                            // Gap defined as missing layer >=2
    int nGapGE2 = 0;        // yzhang 2011-07-29 # of no hits gap for a track
    int nGapGE3 = 0;        // yzhang 2011-07-29 # of no hits gap for a track
    int nHitInLayer[43];    // yzhang 2010-09-20 for bad tracking testing
    int nDeleteInLayer[43]; // yzhang 2010-09-20
    for ( int i = 0; i < 43; i++ )
    {
      nHitInLayer[i]    = 0;
      nDeleteInLayer[i] = 0;
    }
    if ( 8 == tkParam.lPrint ) std::cout << "--arbitrate--" << std::endl;
    for ( TrkHitList::hot_iterator ihit( hitList->begin() ); ihit != hitList->end(); ++ihit )
    {
      int nUsed = ihit->hit()->nUsedHits();
      if ( 8 == tkParam.lPrint )
      {
        std::cout << "nUsed=" << nUsed << ":";
        ihit->hit()->printAll( std::cout );
      }
      if ( 8 == tkParam.lPrint )
      {
        double deltaChi = -999;
        ihit->getFitStuff( deltaChi );
        std::cout << "deltaChi=" << deltaChi << std::endl;
      }
      int layer = ihit->layerNumber();
      nHitInLayer[layer]++;

      if ( !ihit->isActive() )
      {
        //-----------------------------------
        // yzhang delete not ACT hit 2010-05-14
        //-----------------------------------
        if ( tkParam.lRemoveInActive )
        { // 2010-05-16
          nDeleteInLayer[layer]++;
          if ( 8 == tkParam.lPrint ) { std::cout << "=remove above inactive " << std::endl; }
          TrkFundHit* hit = const_cast<TrkFundHit*>( ihit->hit() );
          hitList->removeHit( hit );
          if ( ihit == hitList->end() ) break;
          --ihit; // be careful of the iterator, yzhang
        }
        continue; // active hits only yzhang 2009-11-03 delete
      }
      if ( nUsed > 1 )
      {
        bool                                                          wasUsed = false;
        std::pair<TrkFundHit::hot_iterator, TrkFundHit::hot_iterator> q =
            ihit->hit()->getUsedHits();
        for ( TrkFundHit::hot_iterator i = q.first; i != q.second; ++i )
        {
          if ( !i->isActive() ) continue; // yzhang 2009-11-03 delete
          TrkRecoTrk* recoTrk = i->parentTrack();
          // zhangjin
          int wasDel = 0;
          for ( int idel = 0; idel < trksToKill.size(); idel++ )
          {
            if ( recoTrk == &( trksToKill[idel]->track() ) ) wasDel = 1;
          }
          if ( wasDel == 1 ) continue;
          // zhangjin
          int id = recoTrk->id();
          if ( id == aRecoTrk.id() ) continue; // skip same track
          long index   = 0;
          bool findKey = idMap.get( id, index );
          //      if( findKey == false ) continue;      //zhangjin 2017/6/27
          assert( index >= 0 );
          usedInTrackNum[index]++;
          if ( 8 == tkParam.lPrint )
          {
            std::cout << " track " << itrack << "&" << index << " shared hits "
                      << usedInTrackNum[index] << ":";
            ihit->printAll( std::cout );
          }
          wasUsed = true;
        }
        if ( wasUsed ) nPrev++;
      } // end nUsed > 1
    }   // end loop over hits

    int testGap = 0;
    // std::cout<< __FILE__ << "   " << itrack<< "   "<<std::endl;
    for ( int i = 0; i < 43; i++ )
    {
      // std::cout<< __FILE__ << "   " << i<< " nHitInLayer  "<<nHitInLayer[i]<<"
      // nDeleteInLayer "<<nDeleteInLayer[i]<<std::endl;
      if ( 8 == tkParam.lPrint )
      {
        std::cout << i << " nHitInLayer  " << nHitInLayer[i] << " nDeleteInLayer "
                  << nDeleteInLayer[i] << std::endl;
      }
      // 1.only hit in layer deleted; 2.no hits in layer; 3.got hits in layer;
      if ( nHitInLayer[i] > 0 && ( nHitInLayer[i] - nDeleteInLayer[i] ) == 0 )
      {
        // only hit in layer i has been deleted
        nHitDeleted++;
        if ( 8 == tkParam.lPrint )
        { cout << "rec hits have been deleted in this layer" << std::endl; }
        testGap++;
        // std::cout<< __FILE__ << "   " << __LINE__ << " testGap3  "<<testGap<<std::endl;
      }
      else if ( nHitInLayer[i] == 0 )
      {
        // no hits in this layer i
        testGap++;
        // std::cout<< __FILE__ << "   " << __LINE__ << " testGap3  "<<testGap<<std::endl;
      }
      else
      {
        // std::cout<< __FILE__ << "   " << __LINE__ << " testGap3  "<<testGap<<std::endl;
        // got hit in layer i
        if ( testGap >= 2 )
        {
          nGapGE2++;
          if ( testGap >= 3 ) { nGapGE3++; }
          if ( testGap > maxGapLength ) maxGapLength = testGap;
          // std::cout<< __FILE__ << "   " << __LINE__ << " maxGapLength
          // "<<maxGapLength<<std::endl;
        }
        testGap = 0;
      } // end for layer 43
    }

    bool toBeDeleted = false;

    if ( tkParam.lPrint > 1 )
      std::cout << "arbitrateHits tkNo:" << itrack << " nGapGE2=  " << nGapGE2
                << " nGapGE3=  " << nGapGE3 << " maxGapLength=  " << maxGapLength << std::endl;
    // yzhang add nHitDeleted cut 2010-09-13
    //  remove track if # not Active
    if ( nHitDeleted >= tkParam.nHitDeleted )
    {
      if ( tkParam.lPrint > 1 )
      {
        cout << "arbitrateHits: nHitDeleted " << nHitDeleted << " >= " << tkParam.nHitDeleted
             << " Killing tkNo " << itrack << endl;
      }
      toBeDeleted = true;
    }

    // yzhang add nGap cut 2011-07-29
    //  remove track with gaps and big gap
    if ( nGapGE2 >= tkParam.nGapGE2 )
    {
      if ( tkParam.lPrint > 1 )
      {
        cout << "arbitrateHits: nGapGE2 " << nGapGE2 << " >= " << tkParam.nGapGE2
             << " Killing tkNo " << itrack << endl;
      }
      toBeDeleted = true;
    }
    if ( nGapGE3 >= tkParam.nGapGE3 )
    {
      if ( tkParam.lPrint > 1 )
      {
        cout << "arbitrateHits: nGapGE3 " << nGapGE3 << " >= " << tkParam.nGapGE3
             << " Killing tkNo " << itrack << endl;
      }
      toBeDeleted = true;
    }
    if ( maxGapLength >= tkParam.maxGapLength )
    {
      if ( tkParam.lPrint > 1 )
      {
        cout << "arbitrateHits: maxGapLength " << maxGapLength
             << " >= " << tkParam.maxGapLength << " Killing tkNo " << itrack << endl;
      }
      toBeDeleted = true;
    }

    if ( toBeDeleted )
    {
      nDeleted++;
      delete &( atrack->track() ); // Delete the RecoTrk inside atrack
      atrack->setTrack( 0 );
      trksToKill.push_back( atrack );
      continue;
    }

    //*******
    // How many hits are shared with a single track?
    int nMost     = 0;
    int trackMost = 0;
    for ( int ii = 0; ii < nTrack(); ii++ )
    {
      if ( 8 == tkParam.lPrint )
      {
        std::cout << "tk:" << itrack << "&" << ii << " shared " << usedInTrackNum[ii]
                  << " hits " << std::endl;
      }
      if ( usedInTrackNum[ii] > nMost )
      {
        nMost     = usedInTrackNum[ii];
        trackMost = ii; // index of track w/ most hits in common w/ current trk
      }
    }

    // A little precaution against infinite loops:
    if ( trackMost == trackOld )
    {
      std::cout << "ErrMsg(error) MdcTrackListBase:"
                << "Something ghastly happened in MdcTrackListBase::arbitrateHits"
                << std::endl;
      return 0;
    }
    trackOld = trackMost;

    //******
    // Decide whether to handle hits individually or in group
    double groupDiff = 0.0; // relative quality of grouped hits for the two
    // tracks; > 0. => current track worse
    int           nFound     = 0; // # of grouped hits located so far
    TrkHitOnTrk** theseHits  = 0; // grouped hits as seen in current track
    TrkHitOnTrk** thoseHits  = 0; // grouped hits as seen in the other track
    int           lGroupHits = 0;

    if ( nMost >= tkParam.nOverlap )
    {
      if ( 8 == tkParam.lPrint )
      {
        std::cout << "track " << trackMost << " shared " << nMost << " hits > Cut nOverlap "
                  << tkParam.nOverlap << ", group hits!" << std::endl;
      }
      lGroupHits = 1;
      theseHits  = new TrkHitOnTrk*[nMost];
      thoseHits  = new TrkHitOnTrk*[nMost];
    }

    //*********
    // Go back through hits on this track, looking up the overlap of each
    // if grouping hits, only deal with hits shared with trackMost on this pass
    // otherwise, deal with all shared hits as encountered
    if ( 8 == tkParam.lPrint )
      std::cout << "Go back through hits, looking up overlap hits" << std::endl;
    if ( nMost > 0 )
    {
      if ( 8 == tkParam.lPrint ) std::cout << " nHits= " << hitList->nHit() << std::endl;
      for ( TrkHitList::hot_iterator ihit( hitList->begin() ); ihit != hitList->end(); ++ihit )
      {
        int nUsed = ihit->hit()->nUsedHits();

        if ( 8 == tkParam.lPrint )
        {
          std::cout << "--hit go back, nUsed=" << nUsed << ":";
          ihit->hit()->printAll( std::cout );
        }

        // only shared hits
        if ( nUsed < 2 ) { continue; }

        // active hits only
        if ( !ihit->isActive() )
        {
          if ( 8 == tkParam.lPrint ) { std::cout << "act=0 continue" << std::endl; }
          continue;
        }

        //*** look at all overlaps for this hit
        std::pair<TrkFundHit::hot_iterator, TrkFundHit::hot_iterator> q =
            ihit->hit()->getUsedHits();
        while ( q.first != q.second )
        { // nUsed > 0
          int          dropThisHit = 0;
          TrkHitOnTrk* otherHot    = const_cast<TrkHitOnTrk*>( ( --q.second ).get() );
          TrkRecoTrk*  otherTrack  = otherHot->parentTrack();

          if ( !otherHot->isActive() ) continue;

          // Again, skip "overlap" of track with itself
          if ( &aRecoTrk == otherTrack ) continue;
          int  otherId    = otherTrack->id();
          long otherIndex = -1;
          idMap.get( otherId, otherIndex );
          assert( otherIndex >= 0 );

          // if grouping hits, only look at hits shared with trackMost
          if ( lGroupHits && otherIndex != trackMost ) continue;

          if ( lGroupHits )
          {
            if ( 8 == tkParam.lPrint ) { std::cout << "group hits " << std::endl; }
            // Calculate contribution of group to each chisq/dof
            //        groupDiff += fabs(ihit->resid(0)) -
            //      fabs(otherHot->resid(0));
            // Hack to handle tracks with 5 active hits:
            int aDof = tkFit->nActive() - 5;
            assert( otherTrack->fitResult() != 0 );
            int otherDof = otherTrack->fitResult()->nActive() - 5;
            if ( aDof <= 0 ) { groupDiff = 999; }
            else if ( otherDof <= 0 ) { groupDiff = -999; }
            else
            {
              groupDiff +=
                  ihit->resid( 0 ) * ihit->resid( 0 ) * ihit->weight() / aDof -
                  otherHot->resid( 0 ) * otherHot->resid( 0 ) * otherHot->weight() / otherDof;
            }
            theseHits[nFound] = const_cast<TrkHitOnTrk*>( ihit.get() );
            thoseHits[nFound] = otherHot;
            nFound++;
            dropThisHit = 1;
          }
          else
          { // handle hits individually

            if ( 8 == tkParam.lPrint )
            { std::cout << "handle hits individually" << std::endl; }
            nFound++;
            if ( fabs( ihit->resid( 0 ) ) > fabs( otherHot->resid( 0 ) ) )
            {
              // turn off (inactivate) hit on this track
              lRefit = 1;
              //          ihit->hit()->setUnusedHit(ihit.get());
              // Should I be setting inactive, or deleting the hit???????
              const_cast<TrkHitOnTrk*>( ihit.get() )->setActivity( 0 );
              dropThisHit = 1;
              if ( 8 == tkParam.lPrint )
              {
                std::cout << "dorp hit ";
                const_cast<TrkHitOnTrk*>( ihit.get() )->print( std::cout );
              }
              break; // found other hit, so quit loop
            }
            else
            {
              // inactivate hit on other track
              refitTrack[otherIndex] = 1;
              //          otherHot->hit()->setUnusedHit(otherHot);
              otherHot->setActivity( 0 );
              if ( 8 == tkParam.lPrint )
              {
                std::cout << "inactive hit on other track";
                const_cast<TrkHitOnTrk*>( ihit.get() )->print( std::cout );
              }
              break; // found other hit, so quit loop
            }
          } // end grouped/individual treatment

          if ( dropThisHit == 1 ) break; // don't look for other matches since
          // this hit is now turned off
        } // end loop over nUsed

        // Quit if we've found all of the shared hits on this track
        if ( lGroupHits && nFound == nMost || nFound == nPrev )
        {
          if ( 8 == tkParam.lPrint )
          {
            std::cout << "we've found all of the shared hits on this track,Quit" << std::endl;
          }
          break;
        }

      } // end loop over hits

      // Decide which track grouped hits belong with and inactivate accordingly
      if ( lGroupHits )
      {
        if ( 8 == tkParam.lPrint )
        {
          cout << "nGroup: " << nMost << "  groupDiff: " << groupDiff << endl;
          cout << "Track: " << aRecoTrk.id() << "  nHit: " << hitList->nHit()
               << "  nActive: " << tkFit->nActive()
               << " chisq/dof: " << tkFit->chisq() / ( tkFit->nActive() - 5 ) << endl;
          TrkRecoTrk& othTrack = trkXRef[trackMost]->track();
          cout << "Track: " << othTrack.id() << "  nHit: " << othTrack.hits()->nHit()
               << "  nActive: " << othTrack.fitResult()->nActive() << " chisq/dof: "
               << othTrack.fitResult()->chisq() / ( othTrack.fitResult()->nActive() - 5 )
               << endl;
        }

        if ( groupDiff > 0.0 )
        {
          // inactivate hits on this track
          lRefit = 1;
          for ( int ii = 0; ii < nMost; ii++ )
          {
            TrkHitOnTrk* alink = theseHits[ii];
            TrkFundHit*  hit   = const_cast<TrkFundHit*>( alink->hit() );
            hitList->removeHit( hit ); // yzhang 2011-02-12
            // alink->setActivity(0);
          }
          if ( 8 == tkParam.lPrint )
            std::cout << "inactive hits on this track, No." << aRecoTrk.id() << std::endl;
        }
        else
        {
          // inactivate hits on other track
          refitTrack[trackMost] = 1;
          for ( int ii = 0; ii < nMost; ii++ )
          {
            TrkHitOnTrk* alink    = thoseHits[ii];
            TrkFundHit*  hit      = const_cast<TrkFundHit*>( alink->hit() );
            TrkRecoTrk&  othTrack = trkXRef[trackMost]->track(); // zhangjin
            othTrack.hits()->removeHit( hit );                   // zhangjin
            // hitList->removeHit(hit);//yzhang 2011-02-12
            // alink->setActivity(0);
          }
          if ( 8 == tkParam.lPrint ) std::cout << "inactive hits on other track " << std::endl;
        }
        delete[] theseHits;
        delete[] thoseHits;

      } // end if lGroupHits

    } // end if nMost > 0

    //*********
    // Refit this track, if any hits have been dropped
    TrkErrCode fitResult;
    long       index = -1;
    idMap.get( aRecoTrk.id(), index );
    assert( index >= 0 );

    if ( lRefit || refitTrack[index] == 1 )
    {
      if ( 8 == tkParam.lPrint )
      { std::cout << "after group ,refit track" << aRecoTrk.id() << std::endl; }
      fitResult = hitList->fit();
      aRecoTrk.status()->addHistory(
          TrkErrCode( fitResult.success() ? TrkErrCode::succeed : TrkErrCode::fail, 14,
                      "Arbitrated" ),
          "MdcTrkRecon" );
      if ( fitResult.failure() && ( 8 == tkParam.lPrint ) ) { fitResult.print( std::cerr ); }

      double chisqperDOF;
      bool   badFit = true;
      if ( fitResult.success() )
      {
        badFit   = false;
        int nDOF = tkFit->nActive() - 5;
        if ( nDOF > 5 ) { chisqperDOF = tkFit->chisq() / nDOF; }
        else { chisqperDOF = tkFit->chisq(); }

        if ( chisqperDOF > tkParam.maxChisq ) badFit = true;
        if ( tkFit->nActive() < tkParam.minHits ) badFit = true;
        double tem2 = (float)hitList->nHit() - tkFit->nActive();
        if ( tkParam.lUseQualCuts )
        {
          if ( tem2 >= tkParam.maxNmissTrack ) badFit = true;
          if ( tem2 / float( hitList->nHit() ) > tkParam.maxNmissNorm ) { badFit = true; }
        }
        if ( 8 == tkParam.lPrint )
          std::cout << "fit quality:"
                    << " chisqperDof " << chisqperDOF << "?>" << tkParam.maxChisq
                    << " nActive " << tkFit->nActive() << "?<" << tkParam.minHits << " nHit "
                    << hitList->nHit() << " nhit-act " << tem2 << "?>= nMiss "
                    << tkParam.maxNmissTrack << " hit-act/nhit "
                    << tem2 / float( hitList->nHit() ) << "?> MissNorm "
                    << tkParam.maxNmissNorm << std::endl;
      }
      if ( 8 == tkParam.lPrint )
      {
        cout << "Refitting track " << aRecoTrk.id() << " success = " << fitResult.success()
             << "\n";
      }
      // If the track no longer passes cuts, delete it
      if ( fitResult.failure() || badFit )
      {
        nDeleted++;
        //  Don't change the track list while we're iterating through it!
        //  remove(atrack);
        // int id = aRecoTrk.id();
        if ( 8 == tkParam.lPrint )
        {
          cout << "fitResult.failure? " << fitResult.failure() << " badFit? " << badFit
               << " Killing tkNo " << itrack << endl;
        }
        // delete &(atrack->track());    // Delete the RecoTrk inside atrack
        // atrack->setTrack(0);
        trksToKill.push_back( atrack );
        continue;
      }
    } // end if lRefit

    if ( lGroupHits ) goto restart;

  } // end loop over tracks
  if ( 8 == tkParam.lPrint ) std::cout << "end of loop over tracks" << std::endl;

  // Remove dead track husks
  for ( int itk = 0; itk < (int)trksToKill.size(); itk++ )
  {
    delete &( trksToKill[itk]->track() ); // zhangjin
    trksToKill[itk]->setTrack( 0 );       // zhangjin
    remove( trksToKill[itk] );
    if ( 8 == tkParam.lPrint ) std::cout << "remode dead track No." << itk << std::endl;
  }
  if ( 8 == tkParam.lPrint ) std::cout << "---end of arbitrateHits" << std::endl;

  delete[] usedInTrackNum;
  delete[] refitTrack;
  delete[] trkXRef;
  return nDeleted;
}

arbitrateHits() [2/3]

int MdcTrackListBase::arbitrateHits

(

)

arbitrateHits() [3/3]

int MdcTrackListBase::arbitrateHits

(

)

createFromSegs() [1/3]

virtual int MdcTrackListBase::createFromSegs ( MdcSegList * , const MdcHitMap * , const MdcDetector * , TrkContext & , double bunchTime )

pure virtual

Implemented in MdcTrackList, MdcTrackList, MdcTrackList, MdcTrackListCsmc, MdcTrackListCsmc, and MdcTrackListCsmc.

createFromSegs() [2/3]

virtual int MdcTrackListBase::createFromSegs ( MdcSegList * , const MdcHitMap * , const MdcDetector * , TrkContext & , double bunchTime )

pure virtual

Implemented in MdcTrackList, MdcTrackList, MdcTrackList, MdcTrackListCsmc, MdcTrackListCsmc, and MdcTrackListCsmc.

createFromSegs() [3/3]

virtual int MdcTrackListBase::createFromSegs ( MdcSegList * , const MdcHitMap * , const MdcDetector * , TrkContext & , double bunchTime )

pure virtual

Implemented in MdcTrackList, MdcTrackList, MdcTrackList, MdcTrackListCsmc, MdcTrackListCsmc, and MdcTrackListCsmc.

dropMultiHotInLayer() [1/3]

void MdcTrackListBase::dropMultiHotInLayer

(

const MdcTrack *

tk

)

dropMultiHotInLayer() [2/3]

void MdcTrackListBase::dropMultiHotInLayer

(

const MdcTrack *

tk

)

dropMultiHotInLayer() [3/3]

void MdcTrackListBase::dropMultiHotInLayer

(

const MdcTrack *

tk

)

newParams() [1/3]

void MdcTrackListBase::newParams

(

const MdcTrackParams &

tkPar

)

Definition at line 656 of file MdcTrackListBase.cxx.

                                                              {
  //**************************************************************************
  tkParam = tkPar;
}

newParams() [2/3]

void MdcTrackListBase::newParams

(

const MdcTrackParams &

tkPar

)

newParams() [3/3]

void MdcTrackListBase::newParams

(

const MdcTrackParams &

tkPar

)

nTrack() [1/3]

int MdcTrackListBase::nTrack ( ) const

inline

Definition at line 39 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

{ return length(); }

Referenced by arbitrateHits(), plot(), and store().

nTrack() [2/3]

int MdcTrackListBase::nTrack ( ) const

inline

Definition at line 39 of file InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h.

{ return length(); }

nTrack() [3/3]

int MdcTrackListBase::nTrack ( ) const

inline

Definition at line 39 of file Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h.

{ return length(); }

plot() [1/3]

void MdcTrackListBase::plot

(

)

const

Definition at line 91 of file MdcTrackListBase.cxx.

                                  {
  //*************************************************************************
  std::cout << "nTrack   " << nTrack() << std::endl; // yzhang debug
  for ( int itrack = 0; itrack < nTrack(); itrack++ )
  {
    MdcTrack* atrack = ( *this )[itrack];
    if ( atrack == NULL ) continue;
    atrack->track().printAll( cout );
  }
}

plot() [2/3]

void MdcTrackListBase::plot

(

)

const

plot() [3/3]

void MdcTrackListBase::plot

(

)

const

remove() [1/3]

void MdcTrackListBase::remove

(

MdcTrack *

atrack

)

Definition at line 662 of file MdcTrackListBase.cxx.

                                                {
  //--------------------------------------------------------------------
  if ( atrack != 0 )
  {
    HepAList<MdcTrack>::remove( atrack );
    delete atrack;
  }
}

Referenced by arbitrateHits().

remove() [2/3]

void MdcTrackListBase::remove

(

MdcTrack *

atrack

)

remove() [3/3]

void MdcTrackListBase::remove

(

MdcTrack *

atrack

)

setD0Cut() [1/3]

void MdcTrackListBase::setD0Cut ( double d0Cut )

inline

Definition at line 56 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_d0Cut = d0Cut; } // yzhang add

setD0Cut() [2/3]

void MdcTrackListBase::setD0Cut ( double d0Cut )

inline

Definition at line 56 of file InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_d0Cut = d0Cut; } // yzhang add

setD0Cut() [3/3]

void MdcTrackListBase::setD0Cut ( double d0Cut )

inline

Definition at line 56 of file Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_d0Cut = d0Cut; } // yzhang add

setNoInner() [1/3]

void MdcTrackListBase::setNoInner ( bool noInnerFlag )

inline

Definition at line 62 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_noInner = noInnerFlag; }

setNoInner() [2/3]

void MdcTrackListBase::setNoInner ( bool noInnerFlag )

inline

Definition at line 62 of file InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_noInner = noInnerFlag; }

setNoInner() [3/3]

void MdcTrackListBase::setNoInner ( bool noInnerFlag )

inline

Definition at line 62 of file Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_noInner = noInnerFlag; }

setPlot() [1/3]

void MdcTrackListBase::setPlot ( int plotFlag )

inline

Definition at line 40 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

{ tkParam.lPlot = plotFlag; };

setPlot() [2/3]

void MdcTrackListBase::setPlot ( int plotFlag )

inline

Definition at line 40 of file InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h.

{ tkParam.lPlot = plotFlag; };

setPlot() [3/3]

void MdcTrackListBase::setPlot ( int plotFlag )

inline

Definition at line 40 of file Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h.

{ tkParam.lPlot = plotFlag; };

setPtCut() [1/3]

void MdcTrackListBase::setPtCut ( double ptCut )

inline

Definition at line 58 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_ptCut = ptCut; } // yzhang add 2009-10-27

setPtCut() [2/3]

void MdcTrackListBase::setPtCut ( double ptCut )

inline

Definition at line 58 of file InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_ptCut = ptCut; } // yzhang add 2009-10-27

setPtCut() [3/3]

void MdcTrackListBase::setPtCut ( double ptCut )

inline

Definition at line 58 of file Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_ptCut = ptCut; } // yzhang add 2009-10-27

setZ0Cut() [1/3]

void MdcTrackListBase::setZ0Cut ( double z0Cut )

inline

Definition at line 57 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_z0Cut = z0Cut; } // yzhang add 2010-05-21

setZ0Cut() [2/3]

void MdcTrackListBase::setZ0Cut ( double z0Cut )

inline

Definition at line 57 of file InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_z0Cut = z0Cut; } // yzhang add 2010-05-21

setZ0Cut() [3/3]

void MdcTrackListBase::setZ0Cut ( double z0Cut )

inline

Definition at line 57 of file Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h.

{ m_z0Cut = z0Cut; } // yzhang add 2010-05-21

store() [1/3]

void MdcTrackListBase::store	(	RecMdcTrackCol *	trackList,
		RecMdcHitCol *	hitList )

Definition at line 74 of file MdcTrackListBase.cxx.

                                                                               {
  // ***********************************************************************
  int trackId = 0;
  for ( int itrack = 0; itrack < nTrack(); itrack++ )
  {
    MdcTrack* track = ( *this )[itrack];
    // tkStat:  0,PatRec 1,MdcxReco 2,Tsf 3,CurlFinder
    int tkStat = 0;
    track->storeTrack( trackId, trackList, hitList, tkStat );
    ++trackId;
  }
  HepAListDeleteAll( *this ); // Discard the husks
  removeAll();
  return;
}

store() [2/3]

void MdcTrackListBase::store	(	RecMdcTrackCol *	,
		RecMdcHitCol *	)

store() [3/3]

void MdcTrackListBase::store	(	RecMdcTrackCol *	,
		RecMdcHitCol *	)

Member Data Documentation

m_d0Cut

double MdcTrackListBase::m_d0Cut = -999.

static

Definition at line 59 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

Referenced by MdcTrackList::createFromSegs(), MdcTrkRecon::initialize(), and setD0Cut().

m_noInner

bool MdcTrackListBase::m_noInner

protected

Definition at line 73 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

Referenced by MdcTrackList::createFromSegs(), MdcTrackListBase(), and setNoInner().

m_ptCut

double MdcTrackListBase::m_ptCut = -999.

static

Definition at line 61 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

Referenced by MdcTrackList::createFromSegs(), MdcTrkRecon::initialize(), and setPtCut().

m_z0Cut

double MdcTrackListBase::m_z0Cut = -999.

static

Definition at line 60 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

Referenced by MdcTrackList::createFromSegs(), MdcTrkRecon::initialize(), and setZ0Cut().

tkParam

MdcTrackParams MdcTrackListBase::tkParam

protected

Definition at line 72 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h.

Referenced by arbitrateHits(), MdcTrackList::createFromSegs(), MdcTrackListCsmc::createFromSegs(), MdcTrackListCsmc::finish3d(), MdcTrackList::finishCircle(), MdcTrackList::finishHelix(), MdcTrackListBase(), newParams(), MdcTrackList::pickHits(), and setPlot().

---

The documentation for this class was generated from the following files:

• InstallArea/x86_64-el9-gcc13-dbg/include/MdcTrkRecon/MdcTrackListBase.h
• InstallArea/x86_64-el9-gcc13-opt/include/MdcTrkRecon/MdcTrackListBase.h
• Reconstruction/MdcPatRec/MdcTrkRecon/include/MdcTrkRecon/MdcTrackListBase.h
• MdcTrackListBase.cxx
