HltRaw Class Reference

#include <HltRaw.h>

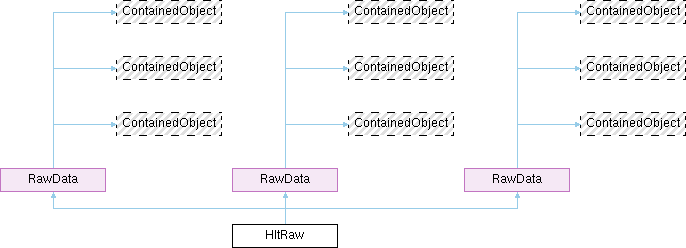

Inheritance diagram for HltRaw:

Public Member Functions
	HltRaw (const Identifier &id, const unsigned int timeChannel=0, const unsigned int chargeChannel=0)
	HltRaw (const unsigned int id)
void	setIntChannel (const unsigned int intChannel)
unsigned int	getIntChannel ()
void	setFloatChannel (const float value)
float	getFloatChannel ()
virtual const CLID &	clID () const
	HltRaw (const Identifier &id, const unsigned int timeChannel=0, const unsigned int chargeChannel=0)
	HltRaw (const unsigned int id)
void	setIntChannel (const unsigned int intChannel)
unsigned int	getIntChannel ()
void	setFloatChannel (const float value)
float	getFloatChannel ()
virtual const CLID &	clID () const
	HltRaw (const Identifier &id, const unsigned int timeChannel=0, const unsigned int chargeChannel=0)
	HltRaw (const unsigned int id)
void	setIntChannel (const unsigned int intChannel)
unsigned int	getIntChannel ()
void	setFloatChannel (const float value)
float	getFloatChannel ()
virtual const CLID &	clID () const
Public Member Functions inherited from RawData
	RawData (const Identifier &id, const unsigned int timeChannel=0, const unsigned int chargeChannel=0)
	RawData (const unsigned int id)
void	setTimeChannel (const unsigned int timeChannel)
void	setChargeChannel (const unsigned int chargeChannel)
void	setTrackIndex (const int trackIndex)
virtual Identifier	identify () const
unsigned int	getIntId () const
unsigned int	getTimeChannel () const
unsigned int	getChargeChannel () const
int	getTrackIndex () const
RawData &	operator+= (const RawData &)
virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing.
virtual StreamBuffer &	serialize (StreamBuffer &s)
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the ASCII output stream.
	RawData (const Identifier &id, const unsigned int timeChannel=0, const unsigned int chargeChannel=0)
	RawData (const unsigned int id)
void	setTimeChannel (const unsigned int timeChannel)
void	setChargeChannel (const unsigned int chargeChannel)
void	setTrackIndex (const int trackIndex)
virtual Identifier	identify () const
unsigned int	getIntId () const
unsigned int	getTimeChannel () const
unsigned int	getChargeChannel () const
int	getTrackIndex () const
RawData &	operator+= (const RawData &)
virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing.
virtual StreamBuffer &	serialize (StreamBuffer &s)
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the ASCII output stream.
	RawData (const Identifier &id, const unsigned int timeChannel=0, const unsigned int chargeChannel=0)
	RawData (const unsigned int id)
void	setTimeChannel (const unsigned int timeChannel)
void	setChargeChannel (const unsigned int chargeChannel)
void	setTrackIndex (const int trackIndex)
virtual Identifier	identify () const
unsigned int	getIntId () const
unsigned int	getTimeChannel () const
unsigned int	getChargeChannel () const
int	getTrackIndex () const
RawData &	operator+= (const RawData &)
virtual StreamBuffer &	serialize (StreamBuffer &s) const
	Serialize the object for writing.
virtual StreamBuffer &	serialize (StreamBuffer &s)
virtual std::ostream &	fillStream (std::ostream &s) const
	Fill the ASCII output stream.

Static Public Member Functions
static const CLID &	classID ()
static const CLID &	classID ()
static const CLID &	classID ()

Additional Inherited Members
Protected Member Functions inherited from RawData
	RawData (const RawData &)
RawData &	operator= (const RawData &)
	RawData (const RawData &)
RawData &	operator= (const RawData &)
	RawData (const RawData &)
RawData &	operator= (const RawData &)
Protected Attributes inherited from RawData
const Identifier	m_id
unsigned int	m_timeChannel
unsigned int	m_chargeChannel
const unsigned int	m_intId
int	m_trackIndex = -1

Detailed Description

Definition at line 15 of file Event/HltEvent/include/HltEvent/HltRaw.h.

Constructor & Destructor Documentation

HltRaw() [1/6]

HltRaw::HltRaw	(	const Identifier &	id,
		const unsigned int	timeChannel = 0,
		const unsigned int	chargeChannel = 0 )

Definition at line 3 of file HltRaw.cxx.

    : RawData( id, timeChannel, chargeChannel ) {}

HltRaw() [2/6]

HltRaw::HltRaw

(

const unsigned int

id

)

Definition at line 7 of file HltRaw.cxx.

: RawData( id ) {}

HltRaw() [3/6]

HltRaw::HltRaw	(	const Identifier &	id,
		const unsigned int	timeChannel = 0,
		const unsigned int	chargeChannel = 0 )

HltRaw() [4/6]

HltRaw::HltRaw

(

const unsigned int

id

)

HltRaw() [5/6]

HltRaw::HltRaw	(	const Identifier &	id,
		const unsigned int	timeChannel = 0,
		const unsigned int	chargeChannel = 0 )

HltRaw() [6/6]

HltRaw::HltRaw

(

const unsigned int

id

)

Member Function Documentation

classID() [1/3]

const CLID & HltRaw::classID ( )

inlinestatic

Definition at line 32 of file Event/HltEvent/include/HltEvent/HltRaw.h.

{ return CLID_HltRaw; }

Referenced by clID().

classID() [2/3]

const CLID & HltRaw::classID ( )

inlinestatic

Definition at line 32 of file InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h.

{ return CLID_HltRaw; }

classID() [3/3]

const CLID & HltRaw::classID ( )

inlinestatic

Definition at line 32 of file InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h.

{ return CLID_HltRaw; }

clID() [1/3]

virtual const CLID & HltRaw::clID ( ) const

inlinevirtual

Definition at line 31 of file Event/HltEvent/include/HltEvent/HltRaw.h.

{ return HltRaw::classID(); }

Referenced by main().

clID() [2/3]

virtual const CLID & HltRaw::clID ( ) const

inlinevirtual

Definition at line 31 of file InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h.

{ return HltRaw::classID(); }

clID() [3/3]

virtual const CLID & HltRaw::clID ( ) const

inlinevirtual

Definition at line 31 of file InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h.

{ return HltRaw::classID(); }

getFloatChannel() [1/3]

float HltRaw::getFloatChannel ( )

inline

Definition at line 28 of file Event/HltEvent/include/HltEvent/HltRaw.h.

{ return *( (float*)( &m_chargeChannel ) ); };

getFloatChannel() [2/3]

float HltRaw::getFloatChannel ( )

inline

Definition at line 28 of file InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h.

{ return *( (float*)( &m_chargeChannel ) ); };

getFloatChannel() [3/3]

float HltRaw::getFloatChannel ( )

inline

Definition at line 28 of file InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h.

{ return *( (float*)( &m_chargeChannel ) ); };

getIntChannel() [1/3]

unsigned int HltRaw::getIntChannel ( )

inline

Definition at line 23 of file Event/HltEvent/include/HltEvent/HltRaw.h.

{ return getTimeChannel(); };

getIntChannel() [2/3]

unsigned int HltRaw::getIntChannel ( )

inline

Definition at line 23 of file InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h.

{ return getTimeChannel(); };

getIntChannel() [3/3]

unsigned int HltRaw::getIntChannel ( )

inline

Definition at line 23 of file InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h.

{ return getTimeChannel(); };

setFloatChannel() [1/3]

void HltRaw::setFloatChannel ( const float value )

inline

Definition at line 25 of file Event/HltEvent/include/HltEvent/HltRaw.h.

                                            {
    m_chargeChannel = *( (unsigned int*)( &value ) );
  };

Referenced by EFtoTDS::execute().

setFloatChannel() [2/3]

void HltRaw::setFloatChannel ( const float value )

inline

Definition at line 25 of file InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h.

                                            {
    m_chargeChannel = *( (unsigned int*)( &value ) );
  };

setFloatChannel() [3/3]

void HltRaw::setFloatChannel ( const float value )

inline

Definition at line 25 of file InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h.

                                            {
    m_chargeChannel = *( (unsigned int*)( &value ) );
  };

setIntChannel() [1/3]

void HltRaw::setIntChannel ( const unsigned int intChannel )

inline

Definition at line 22 of file Event/HltEvent/include/HltEvent/HltRaw.h.

{ setTimeChannel( intChannel ); };

Referenced by RawDataHltRawCnv::createObj(), and EFtoTDS::execute().

setIntChannel() [2/3]

void HltRaw::setIntChannel ( const unsigned int intChannel )

inline

Definition at line 22 of file InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h.

{ setTimeChannel( intChannel ); };

setIntChannel() [3/3]

void HltRaw::setIntChannel ( const unsigned int intChannel )

inline

Definition at line 22 of file InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h.

{ setTimeChannel( intChannel ); };

---

The documentation for this class was generated from the following files:

• Event/HltEvent/include/HltEvent/HltRaw.h
• InstallArea/x86_64-el9-gcc13-dbg/include/HltEvent/HltRaw.h
• InstallArea/x86_64-el9-gcc13-opt/include/HltEvent/HltRaw.h
• HltRaw.cxx
