RecMdcHitCnv Class Reference

#include <RecMdcHitCnv.h>

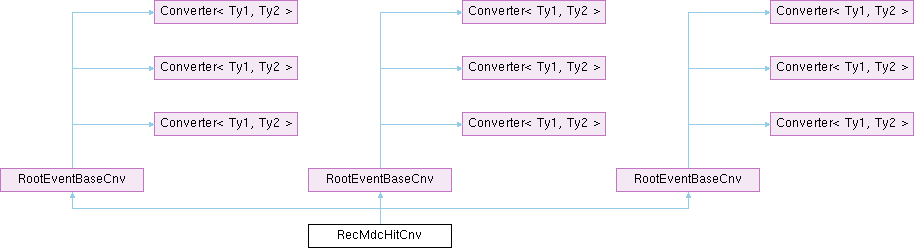

Inheritance diagram for RecMdcHitCnv:

Public Member Functions
virtual	~RecMdcHitCnv ()
	RecMdcHitCnv (ISvcLocator *svc)
virtual StatusCode	DataObjectToTObject (DataObject *obj, RootAddress *addr)
	transformation to root
virtual StatusCode	TObjectToDataObject (DataObject *&obj)
	transformation from root
virtual	~RecMdcHitCnv ()
	RecMdcHitCnv (ISvcLocator *svc)
virtual StatusCode	DataObjectToTObject (DataObject *obj, RootAddress *addr)
	transformation to root
virtual StatusCode	TObjectToDataObject (DataObject *&obj)
	transformation from root
virtual	~RecMdcHitCnv ()
	RecMdcHitCnv (ISvcLocator *svc)
virtual StatusCode	DataObjectToTObject (DataObject *obj, RootAddress *addr)
	transformation to root
virtual StatusCode	TObjectToDataObject (DataObject *&obj)
	transformation from root
Public Member Functions inherited from RootEventBaseCnv
	RootEventBaseCnv (const CLID &clid, ISvcLocator *svc)
virtual	~RootEventBaseCnv ()
virtual long	repSvcType () const
virtual StatusCode	initialize ()
virtual StatusCode	finalize ()
void	declareObject (const std::string &fullPath, const CLID &clid, const std::string &treename, const std::string &branchname)
	Store TDS path to link a particular converter to an object on the TDS.
virtual StatusCode	createObj (IOpaqueAddress *addr, DataObject *&dat)
	Convert the persistent object to transient.
virtual StatusCode	createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
	Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
	Resolve the references of the converted object.
virtual StatusCode	fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
	Resolve the references of the converted object.
TObject *	getReadObject () const
	get the object to be read
	RootEventBaseCnv (const CLID &clid, ISvcLocator *svc)
virtual	~RootEventBaseCnv ()
virtual long	repSvcType () const
virtual StatusCode	initialize ()
virtual StatusCode	finalize ()
void	declareObject (const std::string &fullPath, const CLID &clid, const std::string &treename, const std::string &branchname)
	Store TDS path to link a particular converter to an object on the TDS.
virtual StatusCode	createObj (IOpaqueAddress *addr, DataObject *&dat)
	Convert the persistent object to transient.
virtual StatusCode	createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
	Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
	Resolve the references of the converted object.
virtual StatusCode	fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
	Resolve the references of the converted object.
TObject *	getReadObject () const
	get the object to be read
	RootEventBaseCnv (const CLID &clid, ISvcLocator *svc)
virtual	~RootEventBaseCnv ()
virtual long	repSvcType () const
virtual StatusCode	initialize ()
virtual StatusCode	finalize ()
void	declareObject (const std::string &fullPath, const CLID &clid, const std::string &treename, const std::string &branchname)
	Store TDS path to link a particular converter to an object on the TDS.
virtual StatusCode	createObj (IOpaqueAddress *addr, DataObject *&dat)
	Convert the persistent object to transient.
virtual StatusCode	createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
	Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
	Resolve the references of the converted object.
virtual StatusCode	fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
	Resolve the references of the converted object.
TObject *	getReadObject () const
	get the object to be read
Public Member Functions inherited from Converter< Ty1, Ty2 >
destination *	operator (const source &) const
destination *	operator (const source &) const
destination *	operator (const source &) const

Static Public Member Functions
static const CLID &	classID ()
static const CLID &	classID ()
static const CLID &	classID ()
Static Public Member Functions inherited from RootEventBaseCnv
static const unsigned char	storageType ()
	Storage type and class ID.
static const unsigned char	storageType ()
	Storage type and class ID.
static const unsigned char	storageType ()
	Storage type and class ID.

Friends
class	CnvFactory< RecMdcHitCnv >

Additional Inherited Members
Public Types inherited from Converter< Ty1, Ty2 >
typedef Ty1	source
typedef Ty2	destination
typedef Ty1	source
typedef Ty2	destination
typedef Ty1	source
typedef Ty2	destination
Protected Member Functions inherited from Converter< Ty1, Ty2 >
virtual destination *	convert (const source &) const =0
virtual destination *	convert (const source &) const =0
virtual destination *	convert (const source &) const =0
Protected Attributes inherited from RootEventBaseCnv
IRootCnvSvc *	m_cnvSvc
std::vector< RootCnvSvc::Leaf >	m_leaves
RootInterface *	m_rootInterface
	pointer to the RootInterface
IDataProviderSvc *	m_eds
	pointer to eventdataservice
int	m_branchNr
	the branchNr of this converter for writing
int	m_branchNrDst
int	m_branchNrMc
int	m_branchNrRecon
int	m_branchNrEvtRec
int	m_branchNrEvtHeader
int	m_branchNrEvtNavigator
TObject *	m_objRead
	the object that was read
CLID	CLID_top
	the CLID of the upper converter if any
TArrayS *	m_branchNumbers
	array with number of branches for reading
std::string	m_rootBranchname
	root branchname (may be concatenated of severals)
std::string	m_rootTreename
	each converter knows it's treename
std::string	m_currentFileName
std::vector< void * >	m_adresses
	each converter knows the corresponding adresses
RootEvtSelector *	m_evtsel

Detailed Description

Definition at line 14 of file Event/RootCnvSvc/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

Constructor & Destructor Documentation

~RecMdcHitCnv() [1/3]

virtual RecMdcHitCnv::~RecMdcHitCnv ( )

inlinevirtual

Definition at line 21 of file Event/RootCnvSvc/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

{};

RecMdcHitCnv() [1/3]

RecMdcHitCnv::RecMdcHitCnv

(

ISvcLocator *

svc

)

Definition at line 27 of file RecMdcHitCnv.cxx.

                                             : RootEventBaseCnv( classID(), svc ) {

  // Here we associate this converter with the /Event path on the TDS.
  MsgStream log( msgSvc(), "RecMdcHitCnv" );
  // log << MSG::DEBUG << "Constructor called for " << objType() << endmsg;
  // m_rootTreename ="Rec";
  m_rootBranchname = "m_recMdcHitCol";
  // declareObject(EventModel::Recon::RecMdcHitCol, objType(), m_rootTreename,
  // m_rootBranchname);
  m_adresses.push_back( &m_recMdcHitCol );
  m_recMdcHitCol = 0;
}

~RecMdcHitCnv() [2/3]

virtual RecMdcHitCnv::~RecMdcHitCnv ( )

inlinevirtual

Definition at line 21 of file InstallArea/x86_64-el9-gcc13-dbg/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

{};

RecMdcHitCnv() [2/3]

RecMdcHitCnv::RecMdcHitCnv

(

ISvcLocator *

svc

)

~RecMdcHitCnv() [3/3]

virtual RecMdcHitCnv::~RecMdcHitCnv ( )

inlinevirtual

Definition at line 21 of file InstallArea/x86_64-el9-gcc13-opt/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

{};

RecMdcHitCnv() [3/3]

RecMdcHitCnv::RecMdcHitCnv

(

ISvcLocator *

svc

)

Member Function Documentation

classID() [1/3]

const CLID & RecMdcHitCnv::classID ( )

inlinestatic

Definition at line 19 of file Event/RootCnvSvc/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

{ return CLID_RecMdcHitCol; }

Referenced by RootCnvSvc::createConverter(), and RecMdcHitCnv().

classID() [2/3]

const CLID & RecMdcHitCnv::classID ( )

inlinestatic

Definition at line 19 of file InstallArea/x86_64-el9-gcc13-dbg/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

{ return CLID_RecMdcHitCol; }

classID() [3/3]

const CLID & RecMdcHitCnv::classID ( )

inlinestatic

Definition at line 19 of file InstallArea/x86_64-el9-gcc13-opt/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

{ return CLID_RecMdcHitCol; }

DataObjectToTObject() [1/3]

StatusCode RecMdcHitCnv::DataObjectToTObject ( DataObject * obj, RootAddress * addr )

virtual

transformation to root

Implements RootEventBaseCnv.

Definition at line 99 of file RecMdcHitCnv.cxx.

                                                                                     {

  MsgStream log( msgSvc(), "RecMdcHitCnv" );
  log << MSG::DEBUG << "RecMdcHitCnv::DataObjectToTObject" << endmsg;

  RecMdcHitCol* mdcHitColTds = dynamic_cast<RecMdcHitCol*>( obj );
  if ( !mdcHitColTds )
  {
    log << MSG::ERROR << "Could not downcast to RecMdcHitCol" << endmsg;
    return StatusCode::FAILURE;
  }

  DataObject* evt;
  m_eds->findObject( EventModel::Recon::Event, evt );
  if ( evt == NULL )
  {
    log << MSG::ERROR << "Could not get ReconEvent in TDS " << endmsg;
    return StatusCode::FAILURE;
  }

  ReconEvent* devtTds = dynamic_cast<ReconEvent*>( evt );
  if ( !devtTds )
  { log << MSG::ERROR << "RecMdcHitCnv:Could not downcast to TDS ReconEvent" << endmsg; }

  IOpaqueAddress* addr;

  m_cnvSvc->getRecTrackCnv()->createRep( evt, addr );
  TRecTrackEvent* recEvt = m_cnvSvc->getRecTrackCnv()->getWriteObject();

  const TObjArray* m_recMdcHitCol = recEvt->getRecMdcHitCol();
  if ( !m_recMdcHitCol ) return StatusCode::SUCCESS;
  recEvt->clearRecMdcHitCol(); // necessary in case there is I/O at the same time since array
                               // is static

  RecMdcHitCol::const_iterator recMdcHit;
  for ( recMdcHit = mdcHitColTds->begin(); recMdcHit != mdcHitColTds->end(); recMdcHit++ )
  {
    Bool_t   isGrouped         = ( *recMdcHit )->isGrouped();
    Int_t    id                = ( *recMdcHit )->getId();
    Int_t    trackId           = ( *recMdcHit )->getTrkId();
    Double_t driftDistLeft     = ( *recMdcHit )->getDriftDistLeft();
    Double_t driftDistRight    = ( *recMdcHit )->getDriftDistRight();
    Double_t errDriftDistLeft  = ( *recMdcHit )->getErrDriftDistLeft();
    Double_t errDriftDistRight = ( *recMdcHit )->getErrDriftDistRight();
    Double_t chisqAdd          = ( *recMdcHit )->getChisqAdd();
    Int_t    flagLR            = ( *recMdcHit )->getFlagLR();
    Int_t    stat              = ( *recMdcHit )->getStat();
    UInt_t   mdcId             = ( *recMdcHit )->getMdcId().get_value();
    Double_t tdc               = ( *recMdcHit )->getTdc();
    Double_t adc               = ( *recMdcHit )->getAdc();
    Double_t driftT            = ( *recMdcHit )->getDriftT();
    Double_t doca              = ( *recMdcHit )->getDoca();
    Double_t entra             = ( *recMdcHit )->getEntra();
    Double_t zhit              = ( *recMdcHit )->getZhit();
    Double_t fltLen            = ( *recMdcHit )->getFltLen();

    TRecMdcHit* recMdcHitRoot = new TRecMdcHit();
    // m_common.m_recMdcHitMap[(*recMdcHit)] = recMdcHitRoot;

    recMdcHitRoot->setIsGrouped( isGrouped );
    recMdcHitRoot->setId( id );
    recMdcHitRoot->setTrkId( trackId );
    recMdcHitRoot->setDriftDistLeft( driftDistLeft );
    recMdcHitRoot->setDriftDistRight( driftDistRight );
    recMdcHitRoot->setErrDriftDistLeft( errDriftDistLeft );
    recMdcHitRoot->setErrDriftDistRight( errDriftDistRight );
    log << MSG::INFO << " recMdcHitRoot.ddl: " << recMdcHitRoot->getDriftDistLeft()
        << " recMdcHitRoot.erddl: " << recMdcHitRoot->getErrDriftDistLeft() << endmsg;
    recMdcHitRoot->setChisqAdd( chisqAdd );
    recMdcHitRoot->setFlagLR( flagLR );
    recMdcHitRoot->setStat( stat );
    recMdcHitRoot->setMdcId( mdcId );
    recMdcHitRoot->setTdc( tdc );
    recMdcHitRoot->setAdc( adc );
    recMdcHitRoot->setDriftT( driftT );
    recMdcHitRoot->setDoca( doca );
    recMdcHitRoot->setEntra( entra );
    recMdcHitRoot->setZhit( zhit );
    recMdcHitRoot->setFltLen( fltLen );

    recEvt->addRecMdcHit( recMdcHitRoot );
  }
  return StatusCode::SUCCESS;
}

DataObjectToTObject() [2/3]

virtual StatusCode RecMdcHitCnv::DataObjectToTObject ( DataObject * obj, RootAddress * addr )

virtual

transformation to root

Implements RootEventBaseCnv.

DataObjectToTObject() [3/3]

virtual StatusCode RecMdcHitCnv::DataObjectToTObject ( DataObject * obj, RootAddress * addr )

virtual

transformation to root

Implements RootEventBaseCnv.

TObjectToDataObject() [1/3]

StatusCode RecMdcHitCnv::TObjectToDataObject ( DataObject *& obj )

virtual

transformation from root

Implements RootEventBaseCnv.

Definition at line 40 of file RecMdcHitCnv.cxx.

                                                                      {
  // creation of TDS object from root object
  MsgStream log( msgSvc(), "RecMdcHitCnv" );
  log << MSG::DEBUG << "RecMdcHitCnv::TObjectToDataObject" << endmsg;

  // create the TDS location for the RecMdcHit Collection
  RecMdcHitCol* recMdcHitCol = new RecMdcHitCol;
  refpObject                 = recMdcHitCol;

  // now convert
  if ( !m_recMdcHitCol ) return StatusCode::SUCCESS;
  TIter       mdcHitIter( m_recMdcHitCol );
  TRecMdcHit* recMdcHitRoot = 0;
  while ( ( recMdcHitRoot = (TRecMdcHit*)mdcHitIter.Next() ) )
  {
    int      id                = recMdcHitRoot->getId();
    int      trackId           = recMdcHitRoot->getTrkId();
    double   driftDistLeft     = recMdcHitRoot->getDriftDistLeft();
    double   driftDistRight    = recMdcHitRoot->getDriftDistRight();
    double   errDriftDistLeft  = recMdcHitRoot->getErrDriftDistLeft();
    double   errDriftDistRight = recMdcHitRoot->getErrDriftDistRight();
    double   chisqAdd          = recMdcHitRoot->getChisqAdd();
    int      flagLR            = recMdcHitRoot->getFlagLR();
    int      stat              = recMdcHitRoot->getStat();
    long int mdcId( recMdcHitRoot->getMdcId() );
    double   tdc    = recMdcHitRoot->getTdc();
    double   adc    = recMdcHitRoot->getAdc();
    double   driftT = recMdcHitRoot->getDriftT();
    double   doca   = recMdcHitRoot->getDoca();
    double   entra  = recMdcHitRoot->getEntra();
    double   zhit   = recMdcHitRoot->getZhit();
    double   fltLen = recMdcHitRoot->getFltLen();

    RecMdcHit* recMdcHit                       = new RecMdcHit();
    m_common.m_rootRecMdcHitMap[recMdcHitRoot] = recMdcHit;

    recMdcHit->setId( id );
    recMdcHit->setTrkId( trackId );
    recMdcHit->setDriftDistLeft( driftDistLeft );
    recMdcHit->setDriftDistRight( driftDistRight );
    recMdcHit->setErrDriftDistLeft( errDriftDistLeft );
    recMdcHit->setErrDriftDistRight( errDriftDistRight );
    recMdcHit->setChisqAdd( chisqAdd );
    recMdcHit->setFlagLR( flagLR );
    recMdcHit->setStat( stat );
    recMdcHit->setMdcId( Identifier( mdcId ) );
    recMdcHit->setTdc( tdc );
    recMdcHit->setAdc( adc );
    recMdcHit->setDriftT( driftT );
    recMdcHit->setDoca( doca );
    recMdcHit->setEntra( entra );
    recMdcHit->setZhit( zhit );
    recMdcHit->setFltLen( fltLen );

    recMdcHitCol->push_back( recMdcHit );
  }
  return StatusCode::SUCCESS;
}

TObjectToDataObject() [2/3]

virtual StatusCode RecMdcHitCnv::TObjectToDataObject ( DataObject *& obj )

virtual

transformation from root

Implements RootEventBaseCnv.

TObjectToDataObject() [3/3]

virtual StatusCode RecMdcHitCnv::TObjectToDataObject ( DataObject *& obj )

virtual

transformation from root

Implements RootEventBaseCnv.

Friends And Related Symbol Documentation

CnvFactory< RecMdcHitCnv >

friend class CnvFactory< RecMdcHitCnv >

friend

Definition at line 9 of file Event/RootCnvSvc/include/RootCnvSvc/Rec/RecMdcHitCnv.h.

---

The documentation for this class was generated from the following files:

• Event/RootCnvSvc/include/RootCnvSvc/Rec/RecMdcHitCnv.h
• InstallArea/x86_64-el9-gcc13-dbg/include/RootCnvSvc/Rec/RecMdcHitCnv.h
• InstallArea/x86_64-el9-gcc13-opt/include/RootCnvSvc/Rec/RecMdcHitCnv.h
• RecMdcHitCnv.cxx
