BesEmcSD Class Reference

#include <BesEmcSD.hh>

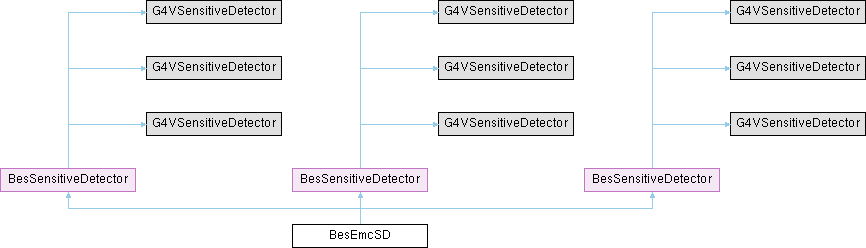

Inheritance diagram for BesEmcSD:

Public Member Functions
	BesEmcSD (G4String, BesEmcConstruction *, BesEmcGeometry *)
	~BesEmcSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	clear ()
void	DrawAll ()
void	PrintAll ()
void	BeginOfTruthEvent (const G4Event *)
void	EndOfTruthEvent (const G4Event *)
void	ComputeThetaPhi (G4int, G4int, G4int)
G4int	EndPhiNumberForGDML (G4int)
G4int	ComputeEndCopyNb (G4int)
	BesEmcSD (G4String, BesEmcConstruction *, BesEmcGeometry *)
	~BesEmcSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	clear ()
void	DrawAll ()
void	PrintAll ()
void	BeginOfTruthEvent (const G4Event *)
void	EndOfTruthEvent (const G4Event *)
void	ComputeThetaPhi (G4int, G4int, G4int)
G4int	EndPhiNumberForGDML (G4int)
G4int	ComputeEndCopyNb (G4int)
	BesEmcSD (G4String, BesEmcConstruction *, BesEmcGeometry *)
	~BesEmcSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	clear ()
void	DrawAll ()
void	PrintAll ()
void	BeginOfTruthEvent (const G4Event *)
void	EndOfTruthEvent (const G4Event *)
void	ComputeThetaPhi (G4int, G4int, G4int)
G4int	EndPhiNumberForGDML (G4int)
G4int	ComputeEndCopyNb (G4int)
Public Member Functions inherited from BesSensitiveDetector
	BesSensitiveDetector (const G4String name)
virtual	~BesSensitiveDetector ()
virtual void	BeginOfTrack (const G4Track *)
virtual void	EndOfTrack (const G4Track *)
	BesSensitiveDetector (const G4String name)
virtual	~BesSensitiveDetector ()
virtual void	BeginOfTrack (const G4Track *)
virtual void	EndOfTrack (const G4Track *)
	BesSensitiveDetector (const G4String name)
virtual	~BesSensitiveDetector ()
virtual void	BeginOfTrack (const G4Track *)
virtual void	EndOfTrack (const G4Track *)

Additional Inherited Members
Protected Member Functions inherited from BesSensitiveDetector
void	GetCurrentTrackIndex (G4int &trackIndex, G4int &g4TrackId) const
void	GetCurrentTrackIndex (G4int &trackIndex, G4int &g4TrackId) const
void	GetCurrentTrackIndex (G4int &trackIndex, G4int &g4TrackId) const

Detailed Description

Definition at line 27 of file InstallArea/x86_64-el9-gcc13-dbg/include/EmcSim/BesEmcSD.hh.

Constructor & Destructor Documentation

BesEmcSD() [1/3]

BesEmcSD::BesEmcSD	(	G4String	name,
		BesEmcConstruction *	det,
		BesEmcGeometry *	besEMCGeometry )

Definition at line 31 of file BesEmcSD.cc.

    : BesSensitiveDetector( name ), Detector( det ), fBesEmcGeometry( besEMCGeometry ) {
  collectionName.insert( "BesEmcHitsCollection" ); // for digitization
  collectionName.insert( "BesEmcHitsList" );       // for MC truth
  collectionName.insert( "BesEmcTruthHitsList" );
  HitID = new G4int[40000];
}

~BesEmcSD() [1/3]

BesEmcSD::~BesEmcSD

(

)

Definition at line 41 of file BesEmcSD.cc.

{ delete[] HitID; }

BesEmcSD() [2/3]

BesEmcSD::BesEmcSD	(	G4String	,
		BesEmcConstruction *	,
		BesEmcGeometry *	)

~BesEmcSD() [2/3]

BesEmcSD::~BesEmcSD

(

)

BesEmcSD() [3/3]

BesEmcSD::BesEmcSD	(	G4String	,
		BesEmcConstruction *	,
		BesEmcGeometry *	)

~BesEmcSD() [3/3]

BesEmcSD::~BesEmcSD

(

)

Member Function Documentation

BeginOfTruthEvent() [1/3]

void BesEmcSD::BeginOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

Definition at line 51 of file BesEmcSD.cc.

                                                 {
  CalList      = new BesEmcHitsCollection( SensitiveDetectorName, collectionName[1] );
  CalTruthList = new BesEmcTruthHitsCollection( SensitiveDetectorName, collectionName[2] );
  m_trackIndex = -99;
}

BeginOfTruthEvent() [2/3]

void BesEmcSD::BeginOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

BeginOfTruthEvent() [3/3]

void BesEmcSD::BeginOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

clear() [1/3]

void BesEmcSD::clear

(

)

Definition at line 441 of file BesEmcSD.cc.

{}

clear() [2/3]

void BesEmcSD::clear

(

)

clear() [3/3]

void BesEmcSD::clear

(

)

ComputeEndCopyNb() [1/3]

G4int BesEmcSD::ComputeEndCopyNb

(

G4int

num

)

Definition at line 416 of file BesEmcSD.cc.

                                            {
  G4int copyNb;
  switch ( num )
  {
  case 30: copyNb = 5; break;
  case 31: copyNb = 6; break;
  case 32: copyNb = 14; break;
  case 33: copyNb = 15; break;
  case 34: copyNb = 16; break;
  default: copyNb = num; break;
  }
  return copyNb;
}

Referenced by ProcessHits().

ComputeEndCopyNb() [2/3]

G4int BesEmcSD::ComputeEndCopyNb

(

G4int

)

ComputeEndCopyNb() [3/3]

G4int BesEmcSD::ComputeEndCopyNb

(

G4int

)

ComputeThetaPhi() [1/3]

void BesEmcSD::ComputeThetaPhi	(	G4int	id,
		G4int	sector,
		G4int	nb )

Definition at line 301 of file BesEmcSD.cc.

                                                                 {
  if ( ( sector >= 0 ) && ( sector < 3 ) ) sector += 16;
  // if((sector!=7)&&(sector!=15))
  {
    if ( ( nb >= 0 ) && ( nb < 4 ) )
    {
      CryNumberTheta = 0;
      CryNumberPhi   = ( sector - 3 ) * 4 + nb;
    }
    else if ( ( nb >= 4 ) && ( nb < 8 ) )
    {
      CryNumberTheta = 1;
      CryNumberPhi   = ( sector - 3 ) * 4 + nb - 4;
    }
    else if ( ( nb >= 8 ) && ( nb < 13 ) )
    {
      CryNumberTheta = 2;
      CryNumberPhi   = ( sector - 3 ) * 5 + nb - 8;
    }
    else if ( ( nb >= 13 ) && ( nb < 18 ) )
    {
      CryNumberTheta = 3;
      CryNumberPhi   = ( sector - 3 ) * 5 + nb - 13;
    }
    else if ( ( nb >= 18 ) && ( nb < 24 ) )
    {
      CryNumberTheta = 4;
      CryNumberPhi   = ( sector - 3 ) * 6 + nb - 18;
    }
    else if ( ( nb >= 24 ) && ( nb < 30 ) )
    {
      CryNumberTheta = 5;
      CryNumberPhi   = ( sector - 3 ) * 6 + nb - 24;
    }
  }
  /*else// if((sector=7)||(sector==15))
  {
    if((nb>=0)&&(nb<4))
    {
      CryNumberTheta = 0;
      CryNumberPhi = (sector-3)*4+3-nb;
    }
    else if((nb>=4)&&(nb<8))
    {
      CryNumberTheta = 1;
      CryNumberPhi = (sector-3)*4+7-nb;
    }
    else if((nb>=8)&&(nb<13))
    {
      CryNumberTheta = 2;
      CryNumberPhi = (sector-3)*5+12-nb;
    }
    else if((nb>=13)&&(nb<18))
    {
      CryNumberTheta = 3;
      CryNumberPhi = (sector-3)*5+17-nb;
    }
    else if((nb>=18)&&(nb<24))
    {
      CryNumberTheta = 4;
      CryNumberPhi = (sector-3)*6+23-nb;
    }
    else if((nb>=24)&&(nb<30))
    {
      CryNumberTheta = 5;
      CryNumberPhi = (sector-3)*6+29-nb;
    }
  }*/

  if ( id == 2 )
  {
    switch ( CryNumberTheta )
    {
    case 0:
      if ( CryNumberPhi < 32 ) CryNumberPhi = 31 - CryNumberPhi;
      else CryNumberPhi = 95 - CryNumberPhi;
      break;
    case 1:
      if ( CryNumberPhi < 32 ) CryNumberPhi = 31 - CryNumberPhi;
      else CryNumberPhi = 95 - CryNumberPhi;
      break;
    case 2:
      if ( CryNumberPhi < 40 ) CryNumberPhi = 39 - CryNumberPhi;
      else CryNumberPhi = 119 - CryNumberPhi;
      break;
    case 3:
      if ( CryNumberPhi < 40 ) CryNumberPhi = 39 - CryNumberPhi;
      else CryNumberPhi = 119 - CryNumberPhi;
      break;
    case 4:
      if ( CryNumberPhi < 48 ) CryNumberPhi = 47 - CryNumberPhi;
      else CryNumberPhi = 143 - CryNumberPhi;
      break;
    case 5:
      if ( CryNumberPhi < 48 ) CryNumberPhi = 47 - CryNumberPhi;
      else CryNumberPhi = 143 - CryNumberPhi;
    default:;
    }
  }
}

Referenced by ProcessHits().

ComputeThetaPhi() [2/3]

void BesEmcSD::ComputeThetaPhi	(	G4int	,
		G4int	,
		G4int	)

ComputeThetaPhi() [3/3]

void BesEmcSD::ComputeThetaPhi	(	G4int	,
		G4int	,
		G4int	)

DrawAll() [1/3]

void BesEmcSD::DrawAll

(

)

Definition at line 445 of file BesEmcSD.cc.

{}

DrawAll() [2/3]

void BesEmcSD::DrawAll

(

)

DrawAll() [3/3]

void BesEmcSD::DrawAll

(

)

EndOfEvent() [1/3]

void BesEmcSD::EndOfEvent

(

G4HCofThisEvent *

HCE

)

Definition at line 432 of file BesEmcSD.cc.

                                                {
  static G4int HCID = -1;
  if ( HCID < 0 )
  { HCID = G4SDManager::GetSDMpointer()->GetCollectionID( collectionName[0] ); }
  HCE->AddHitsCollection( HCID, CalCollection );
}

EndOfEvent() [2/3]

void BesEmcSD::EndOfEvent

(

G4HCofThisEvent *

)

EndOfEvent() [3/3]

void BesEmcSD::EndOfEvent

(

G4HCofThisEvent *

)

EndOfTruthEvent() [1/3]

void BesEmcSD::EndOfTruthEvent ( const G4Event * evt )

virtual

Reimplemented from BesSensitiveDetector.

Definition at line 57 of file BesEmcSD.cc.

                                                   {
  static G4int HLID = -1;
  if ( HLID < 0 ) HLID = G4SDManager::GetSDMpointer()->GetCollectionID( collectionName[1] );
  G4HCofThisEvent* HCE = evt->GetHCofThisEvent();
  HCE->AddHitsCollection( HLID, CalList );

  static G4int HTID = -1;
  if ( HTID < 0 ) HTID = G4SDManager::GetSDMpointer()->GetCollectionID( collectionName[2] );
  HCE->AddHitsCollection( HTID, CalTruthList );
}

EndOfTruthEvent() [2/3]

void BesEmcSD::EndOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

EndOfTruthEvent() [3/3]

void BesEmcSD::EndOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

EndPhiNumberForGDML() [1/3]

G4int BesEmcSD::EndPhiNumberForGDML

(

G4int

copyNb

)

Definition at line 402 of file BesEmcSD.cc.

                                                  {
  if ( copyNb < 0 || copyNb > 15 )
  {
    // G4Exception("Wrong copy number of EMC Endcap Phi Volume!");
    G4cout << "Wrong copy number of EMC Endcap Phi Volume!" << G4endl;
    exit( -1 );
  }

  if ( copyNb == 0 || copyNb == 1 ) { return 15 - copyNb * 8; }
  else if ( copyNb == 2 || copyNb == 3 ) { return 30 - copyNb * 8; }
  else if ( copyNb <= 9 ) { return 17 - copyNb; }
  else { return 15 - copyNb; }
}

Referenced by ProcessHits().

EndPhiNumberForGDML() [2/3]

G4int BesEmcSD::EndPhiNumberForGDML

(

G4int

)

EndPhiNumberForGDML() [3/3]

G4int BesEmcSD::EndPhiNumberForGDML

(

G4int

)

Initialize() [1/3]

void BesEmcSD::Initialize

(

G4HCofThisEvent *

)

Definition at line 45 of file BesEmcSD.cc.

                                            {
  CalCollection = new BesEmcHitsCollection( SensitiveDetectorName, collectionName[0] );
  for ( G4int j = 0; j < 40000; j++ ) { HitID[j] = -1; }
  nHit = 0;
}

Initialize() [2/3]

void BesEmcSD::Initialize

(

G4HCofThisEvent *

)

Initialize() [3/3]

void BesEmcSD::Initialize

(

G4HCofThisEvent *

)

PrintAll() [1/3]

void BesEmcSD::PrintAll

(

)

Definition at line 449 of file BesEmcSD.cc.

{}

PrintAll() [2/3]

void BesEmcSD::PrintAll

(

)

PrintAll() [3/3]

void BesEmcSD::PrintAll

(

)

ProcessHits() [1/3]

G4bool BesEmcSD::ProcessHits	(	G4Step *	aStep,
		G4TouchableHistory *	)

Definition at line 69 of file BesEmcSD.cc.

                                                                 {

  // Ma Qiumei Add for removing Warning Infomations
  gErrorIgnoreLevel = kFatal;

  G4double edep  = aStep->GetTotalEnergyDeposit();
  G4double stepl = aStep->GetStepLength();
  if ( ( edep == 0. ) && ( stepl == 0. ) ) return false;

  G4TouchableHistory* theTouchable =
      (G4TouchableHistory*)( aStep->GetPreStepPoint()->GetTouchable() );
  G4VPhysicalVolume* physVol = theTouchable->GetVolume();

  if ( physVol->GetName().contains( "physicalCrystal" ) ) // barrel code
  {
    PartId         = 1;
    CryNumberPhi   = theTouchable->GetReplicaNumber( 2 );
    CryNumberTheta = theTouchable->GetReplicaNumber( 1 );
  }
  else if ( physVol->GetName().contains( "logicalCrystal" ) ) // barrel gdml
  {
    PartId = 1;
    std::istringstream thetaBuf( ( theTouchable->GetVolume( 1 )->GetName() ).substr( 16, 2 ) );
    thetaBuf >> CryNumberTheta;
    CryNumberPhi = 308 - theTouchable->GetCopyNumber( 2 );
  }
  else if ( physVol->GetName().contains( "physicalEndCrystal" ) ) // endcap code
  {
    PartId          = theTouchable->GetReplicaNumber( 3 );
    G4int endSector = theTouchable->GetReplicaNumber( 2 );
    G4int endNb     = theTouchable->GetReplicaNumber( 0 );
    ComputeThetaPhi( PartId, endSector, ComputeEndCopyNb( endNb ) );
  }
  else if ( physVol->GetName().contains( "logicalEndCrystal" ) ) // endcap gdml
  {
    PartId                       = 2 - 2 * theTouchable->GetCopyNumber( 3 );
    G4int              endSector = theTouchable->GetCopyNumber( 2 );
    G4int              endNb, endNbGDML;
    std::istringstream thetaBuf( ( theTouchable->GetVolume( 0 )->GetName() ).substr( 20, 2 ) );
    thetaBuf >> endNb;
    endNbGDML           = ComputeEndCopyNb( endNb );
    G4int endSectorGDML = EndPhiNumberForGDML( endSector );
    ComputeThetaPhi( PartId, endSectorGDML, endNbGDML );
  }
  else if ( physVol->GetName().contains( "physicalPD" ) ) // barrel PD code
  {
    edep *= 50.;
    PartId         = 1;
    CryNumberPhi   = theTouchable->GetReplicaNumber( 2 );
    CryNumberTheta = theTouchable->GetReplicaNumber( 1 );
  }
  else if ( physVol->GetName().contains( "logicalPD" ) ) // barrel PD gdml
  {
    edep *= 50.;
    PartId   = 1;
    G4int nb = theTouchable->GetCopyNumber( 1 );
    if ( nb == 216 ) { CryNumberTheta = 0; }
    else { CryNumberTheta = 43 - ( nb - 2 ) / 5; }
    CryNumberPhi = 308 - theTouchable->GetCopyNumber( 2 );
  }

  if ( verboseLevel > 1 )
    G4cout << "(Check ID)New EMC Hit on crystal: " << CryNumberPhi << "(phi)" << CryNumberTheta
           << "(theta)"
           << " and the volume is " << physVol->GetName() << G4endl;

  //-----------------------------------------------------
  G4int trackId = aStep->GetTrack()->GetTrackID();

  BesEmcHit* calHit = new BesEmcHit();
  calHit->SetTrackIndex( -99 );
  calHit->SetG4Index( trackId );
  calHit->SetEdepCrystal( edep );
  calHit->SetTrakCrystal( stepl );
  calHit->SetPosCrystal( aStep->GetPreStepPoint()->GetPosition() );
  calHit->SetTimeCrystal( aStep->GetPreStepPoint()->GetGlobalTime() );
  calHit->SetMomentum( aStep->GetPreStepPoint()->GetMomentum() );
  calHit->SetNumCrystal( PartId, CryNumberTheta, CryNumberPhi );
  // calHit->Print(1);
  if ( edep > 0 )
  {
    G4int idhit = CalCollection->insert( calHit ) - 1;
    if ( nHit < 40000 ) HitID[nHit] = idhit;
    nHit++;
  }
  else
  {
    delete calHit;
    // if(nHit==40000)
    // G4cout << "Hits number exceed store space!!!" << G4endl;
  }

  // for MC Truth
  if ( CalList )
  {
    G4int trackIndex, g4TrackId;
    GetCurrentTrackIndex( trackIndex, g4TrackId );
    calHit->SetTrackIndex( trackIndex );

    if ( m_trackIndex != trackIndex ) // find a new track
    {
      m_trackIndex = trackIndex;

      G4int flag = 1;
      G4int pdg  = abs( aStep->GetTrack()->GetDefinition()->GetPDGEncoding() );
      if ( pdg == 12 || pdg == 14 || pdg == 16 )
      { // neutrino
        flag = 0;
      }

      if ( flag && aStep->GetTrack()->GetTrackID() == g4TrackId ) // is primary particle
      {
        BesEmcHit* truHit = new BesEmcHit();
        truHit->SetTrackIndex( trackIndex );
        truHit->SetG4Index( trackId );
        truHit->SetEdepCrystal( edep );
        truHit->SetTrakCrystal( stepl );
        truHit->SetPosCrystal( aStep->GetPreStepPoint()->GetPosition() );
        truHit->SetTimeCrystal( aStep->GetPreStepPoint()->GetGlobalTime() );
        truHit->SetMomentum( aStep->GetPreStepPoint()->GetMomentum() );
        truHit->SetNumCrystal( PartId, CryNumberTheta, CryNumberPhi );
        CalList->insert( truHit );
      }
    }

    else if ( m_trackIndex == trackIndex )
    {
      G4int length = CalList->entries();
      if ( length >= 1 )
      {
        for ( G4int i = 0; i < length; i++ )
        {
          BesEmcHit* oldHit = ( *CalList )[i];
          if ( oldHit->GetTrackIndex() == trackIndex ) // find the same trackIndex in CalList
          {
            oldHit->SetEdepCrystal( oldHit->GetEdepCrystal() + edep );
            break;
          }
        }
      }
    }
  }

  // for full Mc Truth
  if ( CalTruthList )
  {
    G4int trackIndex, g4TrackId;
    GetCurrentTrackIndex( trackIndex, g4TrackId );
    Identifier id = EmcID::crystal_id( PartId, CryNumberTheta, CryNumberPhi );

    G4int flag = 1;
    if ( CalTruthList->entries() > 0 )
    {
      for ( G4int i = 0; i < CalTruthList->entries(); i++ )
      {
        BesEmcTruthHit* oldHit = ( *CalTruthList )[i];
        if ( oldHit->GetTrackIndex() == trackIndex )
        { // find the same trackIndex in CalList
          flag = 0;
          oldHit->SetEDep( oldHit->GetEDep() + edep ); // total energy
          if ( oldHit->Find( id ) != oldHit->End() ) { oldHit->AddEHit( id, edep ); }
          else { oldHit->Insert( id, edep ); }
          break;
        }
      }
    }

    if ( flag == 1 )
    { // new track
      G4int pdg = abs( aStep->GetTrack()->GetDefinition()->GetPDGEncoding() );
      if ( !( pdg == 12 || pdg == 14 || pdg == 16 ) )
      { // not neutrino
        BesEmcTruthHit* truHit = new BesEmcTruthHit;
        truHit->SetTrackIndex( trackIndex );
        truHit->SetG4TrackId( g4TrackId );
        truHit->SetEDep( edep );
        truHit->SetIdentify( id );
        truHit->Insert( id, edep );

        if ( aStep->GetTrack()->GetTrackID() == g4TrackId )
        { // is primary particle
          truHit->SetHitEmc( 1 );
          truHit->SetPDGCode( aStep->GetTrack()->GetDefinition()->GetPDGEncoding() );
          truHit->SetPDGCharge( aStep->GetTrack()->GetDefinition()->GetPDGCharge() );
          truHit->SetParticleName( aStep->GetTrack()->GetDefinition()->GetParticleName() );
          truHit->SetTime( aStep->GetPreStepPoint()->GetGlobalTime() );
          truHit->SetPosition( aStep->GetPreStepPoint()->GetPosition() );
          truHit->SetMomentum( aStep->GetPreStepPoint()->GetMomentum() );
        }
        else
        { // the primary particle doesn't hit emc

          BesSensitiveManager* sensitiveManager  = BesSensitiveManager::GetSensitiveManager();
          std::vector<BesTruthTrack*>* trackList = sensitiveManager->GetTrackList();

          for ( unsigned i = 0; i < trackList->size(); i++ )
          {
            BesTruthTrack* truthTrack = ( *trackList )[i];

            if ( trackIndex == truthTrack->GetIndex() )
            { // find primary particle
              truHit->SetHitEmc( 0 );
              truHit->SetPDGCode( truthTrack->GetPDGCode() );
              truHit->SetPDGCharge( truthTrack->GetPDGCharge() );
              truHit->SetParticleName( truthTrack->GetParticleName() );

              if ( truthTrack->GetTerminalVertex() )
              {
                truHit->SetTime( truthTrack->GetTerminalVertex()->GetTime() );
                truHit->SetPosition( truthTrack->GetTerminalVertex()->GetPosition() );
              }
              else
              { // have not found terminal vertex
                truHit->SetTime( -99 );
                truHit->SetPosition( G4ThreeVector( -99, -99, -99 ) );
              }

              break;
            } // end if find primary particle
          }
        }

        CalTruthList->insert( truHit );
      }
    }
  }

  return true;
}

ProcessHits() [2/3]

G4bool BesEmcSD::ProcessHits	(	G4Step *	,
		G4TouchableHistory *	)

ProcessHits() [3/3]

G4bool BesEmcSD::ProcessHits	(	G4Step *	,
		G4TouchableHistory *	)

---

The documentation for this class was generated from the following files:

• InstallArea/x86_64-el9-gcc13-dbg/include/EmcSim/BesEmcSD.hh
• InstallArea/x86_64-el9-gcc13-opt/include/EmcSim/BesEmcSD.hh
• Simulation/BOOST/EmcSim/include/EmcSim/BesEmcSD.hh
• BesEmcSD.cc
