CalibXmlCnvSvc Class Reference

#include <CalibXmlCnvSvc.h>

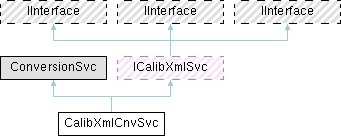

Inheritance diagram for CalibXmlCnvSvc:

Public Member Functions
virtual StatusCode	initialize ()
virtual StatusCode	finalize ()
virtual StatusCode	createAddress (unsigned char svc_type, const CLID &clid, const std::string *par, const unsigned long *ip, IOpaqueAddress *&refpAddress)
virtual XERCES_CPP_NAMESPACE_QUALIFIER DOMDocument *	parse (const char *filename)
Public Member Functions inherited from ICalibXmlSvc
	DeclareInterfaceID (ICalibXmlSvc, 1, 0)
	DeclareInterfaceID (ICalibXmlSvc, 1, 0)
	DeclareInterfaceID (ICalibXmlSvc, 1, 0)

Protected Member Functions
	CalibXmlCnvSvc (const std::string &name, ISvcLocator *svc)
virtual	~CalibXmlCnvSvc ()

Friends
class	SvcFactory< CalibXmlCnvSvc >
	Only factories can access protected constructors.

Detailed Description

---

A conversion service for GLAST calibration bulk data in Xml format.

Author

J. Bogart

Date

November 2002

Definition at line 33 of file CalibXmlCnvSvc.h.

Constructor & Destructor Documentation

CalibXmlCnvSvc()

CalibXmlCnvSvc::CalibXmlCnvSvc ( const std::string & name, ISvcLocator * svc )

protected

Definition at line 24 of file CalibXmlCnvSvc.cxx.

    : ConversionSvc( name, svc, XML_StorageType )
    , m_detPersSvc( 0 )
    , m_detDataSvc( 0 )
    , m_parser( 0 ) {

  // Some day might have a property to declare having to do with path to
  // xml files.
}

~CalibXmlCnvSvc()

virtual CalibXmlCnvSvc::~CalibXmlCnvSvc ( )

inlineprotectedvirtual

Definition at line 39 of file CalibXmlCnvSvc.h.

{}

Member Function Documentation

createAddress()

StatusCode CalibXmlCnvSvc::createAddress ( unsigned char svc_type, const CLID & clid, const std::string * par, const unsigned long * ip, IOpaqueAddress *& refpAddress )

virtual

Create an XML address using explicit arguments to identify a single object

Parameters

svc_type	the service type
CLID	the CLID of the XML Element for which an address is created
par	an array of three strings containing the format version, calibration type name and the flavor, in this order
ip	has a single element, the serial number of the MySQL row which corresponds to this element
refpAddress	the new address created

Returns

a StatusCode giving the status of the address creation

Definition at line 136 of file CalibXmlCnvSvc.cxx.

                                                                         {

  MsgStream log( msgSvc(), name() );

  if ( svc_type != XML_StorageType )
  {
    log << MSG::ERROR << "bad storage type" << (int)svc_type << endmsg;
    return StatusCode::FAILURE;
  }

  std::string dataIdent( par[0] ); // file identifier for PDS version of data
  std::string fullpath( par[1] );  // path within TCDS for the object
  std::string fmtVersion( par[2] );
  int         serNo = ip[0];

  // for now have to ignore fmtVersion because of defective implementation
  // of GenericAddress. If we want it, should probably write new
  // opaque address implementation for this package to use.  All
  // dealings with (calibration) opaque addresses are confined to
  // the CalibSvc package.
  refpAddress = new GenericAddress( XML_StorageType, clid, dataIdent, fullpath, serNo );

  return StatusCode::SUCCESS;
}

finalize()

StatusCode CalibXmlCnvSvc::finalize ( )

virtual

Definition at line 130 of file CalibXmlCnvSvc.cxx.

                                    {
  delete m_parser;
  m_parser = 0;
  return ConversionSvc::finalize();
}

initialize()

StatusCode CalibXmlCnvSvc::initialize ( )

virtual

Definition at line 47 of file CalibXmlCnvSvc.cxx.

                                      {
  StatusCode sc = ConversionSvc::initialize();

  MsgStream log( msgSvc(), "CalibXmlCnvSvc" );

  if ( !sc.isSuccess() ) return sc;

  /* Paste in a bit of CalibMySQLCnvSvc::initialize */

  // Locate the Calib Data Service.  Since it inherits from DataSvc
  // it has to implement IDataProviderSvc
  IDataProviderSvc* pCDS = 0;
  // sc = serviceLocator()->getService("CalibDataSvc",  IID_IDataProviderSvc,
  // (IInterface*&)pCDS);
  sc = serviceLocator()->getService( "CalibDataSvc", IDataProviderSvc::interfaceID(),
                                     (IInterface*&)pCDS );
  if ( !sc.isSuccess() )
  {
    log << MSG::ERROR << "Could not locate CalibDataSvc" << endmsg;
    return sc;
  }

  // Set the CalibDataSvc as data provider service
  sc = setDataProvider( pCDS );
  if ( !sc.isSuccess() )
  {
    log << MSG::ERROR << "Could not set data provider" << endmsg;
    return sc;
  }

  /*   End of pasted bit */

  /* Paste in more of CalibMySQLCnvSvc::initialize  */
  // Locate IConversionSvc interface of the DetectorPersistencySvc
  sc = serviceLocator()->service( "DetectorPersistencySvc", m_detPersSvc, true );
  if ( !sc.isSuccess() )
  {
    log << MSG::ERROR << "Cannot locate IConversionSvc interface of DetectorPersistencySvc"
        << endmsg;
    return sc;
  }
  else
  {
    log << MSG::DEBUG << "Retrieved IConversionSvc interface of DetectorPersistencySvc"
        << endmsg;
  }

  // Query the IAddressCreator interface of the detector persistency service
  IAddressCreator* iAddrCreator;
  // sc = m_detPersSvc->queryInterface(IID_IAddressCreator,
  //                    (void**) &iAddrCreator);
  sc = m_detPersSvc->queryInterface( IAddressCreator::interfaceID(), (void**)&iAddrCreator );
  if ( !sc.isSuccess() )
  {
    log << MSG::ERROR << "Cannot query IAddressCreator interface of DetectorPersistencySvc"
        << endmsg;
    return sc;
  }
  else
  {
    log << MSG::DEBUG << "Retrieved IAddressCreator interface of DetectorPersistencySvc"
        << endmsg;
  }
  log << MSG::DEBUG << "Set it as the address creator of the CalibXmlCnvSvc" << endmsg;
  sc = setAddressCreator( iAddrCreator );
  if ( !sc.isSuccess() )
  {
    log << MSG::ERROR << "Cannot set the address creator" << endmsg;
    return sc;
  }

  // end of second pasted piece

  m_parser = new xmlBase::XmlParser();

  if ( m_parser == 0 )
  { log << MSG::FATAL << "Unable to create XML parser instance \n" << endmsg; }

  // set properties if there are any??

  return sc;
}

parse()

XERCES_CPP_NAMESPACE_QUALIFIER DOMDocument * CalibXmlCnvSvc::parse ( const char * filename )

virtual

This method parses an xml file and produces the corresponding DOM document.

Parameters

fileName

the name of the file to parse

Returns

the document issued from the parsing

Implements ICalibXmlSvc.

Definition at line 163 of file CalibXmlCnvSvc.cxx.

                                                                                        {
  return m_parser->parse( filename );
}

Friends And Related Symbol Documentation

SvcFactory< CalibXmlCnvSvc >

friend class SvcFactory< CalibXmlCnvSvc >

friend

Only factories can access protected constructors.

Definition at line 1 of file CalibXmlCnvSvc.h.

---

The documentation for this class was generated from the following files:

• CalibXmlCnvSvc.h
• CalibXmlCnvSvc.cxx
