ComPackExpFloat Class Reference

#include <ComPackExpFloat.h>

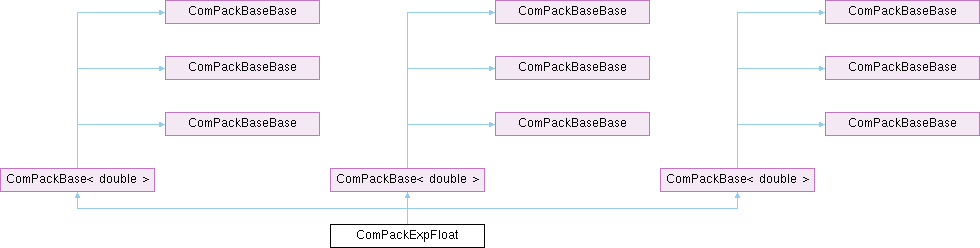

Inheritance diagram for ComPackExpFloat:

Public Member Functions
	ComPackExpFloat (unsigned nbits, unsigned maxexponent, double start, double stop, bool center=false)
virtual	~ComPackExpFloat ()
virtual StatusCode	pack (const double, d_ULong &) const
virtual StatusCode	unpack (const d_ULong, double &) const
void	print (std::ostream &os) const
	ComPackExpFloat (unsigned nbits, unsigned maxexponent, double start, double stop, bool center=false)
virtual	~ComPackExpFloat ()
virtual StatusCode	pack (const double, d_ULong &) const
virtual StatusCode	unpack (const d_ULong, double &) const
void	print (std::ostream &os) const
	ComPackExpFloat (unsigned nbits, unsigned maxexponent, double start, double stop, bool center=false)
virtual	~ComPackExpFloat ()
virtual StatusCode	pack (const double, d_ULong &) const
virtual StatusCode	unpack (const d_ULong, double &) const
void	print (std::ostream &os) const
Public Member Functions inherited from ComPackBase< double >
	ComPackBase ()
virtual	~ComPackBase ()
virtual const double &	getMinVal () const
virtual const double &	getMaxVal () const
virtual const double &	getRange () const
d_ULong	bitRange () const
d_ULong	bitMask () const
ComPackBase &	operator= (const ComPackBase &)

Additional Inherited Members
Public Types inherited from ComPackBaseBase
enum	StatusCode {   TAG_OK , TAG_BAD , TAG_RANGE_ERROR , TAG_VAL_ROUND_DOWN ,   TAG_VAL_ROUND_UP , TAG_OK , TAG_BAD , TAG_RANGE_ERROR ,   TAG_VAL_ROUND_DOWN , TAG_VAL_ROUND_UP , TAG_OK , TAG_BAD ,   TAG_RANGE_ERROR , TAG_VAL_ROUND_DOWN , TAG_VAL_ROUND_UP }
enum	StatusCode {   TAG_OK , TAG_BAD , TAG_RANGE_ERROR , TAG_VAL_ROUND_DOWN ,   TAG_VAL_ROUND_UP , TAG_OK , TAG_BAD , TAG_RANGE_ERROR ,   TAG_VAL_ROUND_DOWN , TAG_VAL_ROUND_UP , TAG_OK , TAG_BAD ,   TAG_RANGE_ERROR , TAG_VAL_ROUND_DOWN , TAG_VAL_ROUND_UP }
enum	StatusCode {   TAG_OK , TAG_BAD , TAG_RANGE_ERROR , TAG_VAL_ROUND_DOWN ,   TAG_VAL_ROUND_UP , TAG_OK , TAG_BAD , TAG_RANGE_ERROR ,   TAG_VAL_ROUND_DOWN , TAG_VAL_ROUND_UP , TAG_OK , TAG_BAD ,   TAG_RANGE_ERROR , TAG_VAL_ROUND_DOWN , TAG_VAL_ROUND_UP }
Protected Types inherited from ComPackBase< double >
enum
enum
enum
Protected Attributes inherited from ComPackBase< double >
double	_minVal
double	_maxVal
double	_valRange
d_ULong	_bitRange
d_ULong	_bitMask

Detailed Description

Definition at line 35 of file InstallArea/x86_64-el9-gcc13-dbg/include/MdcRecoUtil/ComPackExpFloat.h.

Constructor & Destructor Documentation

ComPackExpFloat() [1/3]

ComPackExpFloat::ComPackExpFloat	(	unsigned	nbits,
		unsigned	maxexponent,
		double	start,
		double	stop,
		bool	center = false )

Definition at line 31 of file ComPackExpFloat.cxx.

    : ComPackBase<double>( start, stop, nbits ), _maxexp( maxexponent ) {
  if ( _maxexp > 62 )
  {
    std::cout << "ErrMsg(fatal) "
              << "Can't pack exponents larger than 62" << endl;
    abort();
  }
  static double invln2( 1.0 / log( 2.0 ) );
  long long     one( 1 );
  // compute how many bits used by exponent
  _mansft = _maxexp > 0 ? (unsigned)( log( double( _maxexp ) ) * invln2 + 1.01 ) : 0;
  _expmsk = ( 1 << _mansft ) - 1;
  _maxman = ( 1 << ( _bitRange - _mansft ) );
  _manmsk = _maxman - 1;
  double    invmaxman = 1.0 / _maxman;
  long long maxnorm   = ( one << ( maxexponent + 1 ) ) - 1;
  // correct the range if we're centering the bins
  if ( center )
  {
    long long norm  = one << maxexponent;
    double    alpha = 1.0 / ( (double)maxnorm * _maxman * 2.0 - ( norm + 1.0 ) );
    _minVal -= _valRange * alpha;
    _maxVal += _valRange * norm * alpha;
    _valRange = _maxVal - _minVal;
    //    cout << "alpha = " << alpha << " norm = " << norm << endl;
  }
  // finish the calculations
  _invrange         = maxnorm / _valRange;
  double invmaxnorm = _valRange / maxnorm;
  double manoff     = ( 0.5 * invmaxman + 1.0 ) * invmaxnorm;
  double valoff     = _minVal - invmaxnorm;
  double manfac     = invmaxnorm * invmaxman;
  // pre-compute some factors and store them in an array
  _expfac = new double[_maxexp + 1];
  _expoff = new double[_maxexp + 1];
  for ( unsigned iexp = 0; iexp <= _maxexp; iexp++ )
  {
    double expf   = ( one << iexp );
    _expoff[iexp] = valoff + manoff * expf;
    _expfac[iexp] = manfac * expf;
  }
}

Referenced by print().

~ComPackExpFloat() [1/3]

ComPackExpFloat::~ComPackExpFloat ( )

virtual

Definition at line 76 of file ComPackExpFloat.cxx.

                                  {
  delete[] _expfac;
  delete[] _expoff;
}

ComPackExpFloat() [2/3]

ComPackExpFloat::ComPackExpFloat	(	unsigned	nbits,
		unsigned	maxexponent,
		double	start,
		double	stop,
		bool	center = false )

~ComPackExpFloat() [2/3]

virtual ComPackExpFloat::~ComPackExpFloat ( )

virtual

ComPackExpFloat() [3/3]

ComPackExpFloat::ComPackExpFloat	(	unsigned	nbits,
		unsigned	maxexponent,
		double	start,
		double	stop,
		bool	center = false )

~ComPackExpFloat() [3/3]

virtual ComPackExpFloat::~ComPackExpFloat ( )

virtual

Member Function Documentation

pack() [1/3]

ComPackBase< double >::StatusCode ComPackExpFloat::pack ( const double value, d_ULong & packdata ) const

virtual

Implements ComPackBase< double >.

Definition at line 81 of file ComPackExpFloat.cxx.

                                                                                     {
  static double                   invln2( 1.0 / log( 2.0 ) );
  static long long                one( 1 );
  ComPackBase<double>::StatusCode retval( TAG_OK );
  // first, figure out the exponent
  double renorm = 1.0 + ( value - _minVal ) * _invrange;
  if ( renorm < 1.0 )
  {
    renorm = 1.0;
    retval = TAG_VAL_ROUND_UP;
  }
  unsigned iexp = unsigned( log( renorm ) * invln2 );
  unsigned iman( 0 );
  if ( iexp <= _maxexp )
  {
    long long expon = one << iexp;
    iman            = (unsigned)( _maxman * ( renorm / expon - 1.0 ) );
    // deal with floating-point rounding, which could give a 'non-physical' result
    if ( iman == _maxman )
    {
      if ( iexp == _maxexp ) iman = _maxman - 1;
      else
      {
        iman = 0;
        iexp++;
      }
    }
  }
  else
  {
    iexp   = _maxexp;
    iman   = _maxman - 1;
    retval = TAG_VAL_ROUND_DOWN;
  }
  packdata = ( iexp & _expmsk ) | ( iman & _manmsk ) << _mansft;
  return retval;
}

pack() [2/3]

virtual StatusCode ComPackExpFloat::pack ( const double , d_ULong &  ) const

virtual

Implements ComPackBase< double >.

pack() [3/3]

virtual StatusCode ComPackExpFloat::pack ( const double , d_ULong &  ) const

virtual

Implements ComPackBase< double >.

print() [1/3]

void ComPackExpFloat::print

(

std::ostream &

os

)

const

print() [2/3]

void ComPackExpFloat::print

(

std::ostream &

os

)

const

print() [3/3]

void ComPackExpFloat::print

(

std::ostream &

os

)

const

unpack() [1/3]

ComPackBase< double >::StatusCode ComPackExpFloat::unpack ( const d_ULong packdata, double & value ) const

virtual

Implements ComPackBase< double >.

Definition at line 120 of file ComPackExpFloat.cxx.

                                                                                     {
  size_t iman = ( packdata >> _mansft ) & _manmsk;
  size_t iexp = packdata & _expmsk;
  value       = _expoff[iexp] + iman * _expfac[iexp];
  return TAG_OK;
}

unpack() [2/3]

virtual StatusCode ComPackExpFloat::unpack ( const d_ULong , double &  ) const

virtual

Implements ComPackBase< double >.

unpack() [3/3]

virtual StatusCode ComPackExpFloat::unpack ( const d_ULong , double &  ) const

virtual

Implements ComPackBase< double >.

---

The documentation for this class was generated from the following files:

• InstallArea/x86_64-el9-gcc13-dbg/include/MdcRecoUtil/ComPackExpFloat.h
• InstallArea/x86_64-el9-gcc13-opt/include/MdcRecoUtil/ComPackExpFloat.h
• Reconstruction/MdcPatRec/MdcRecoUtil/include/MdcRecoUtil/ComPackExpFloat.h
• ComPackExpFloat.cxx
