SingleParticleGun Class Reference

#include <SingleParticleGun.h>

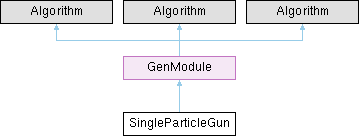

Inheritance diagram for SingleParticleGun:

Public Member Functions
	SingleParticleGun (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~SingleParticleGun ()
virtual StatusCode	genInitialize ()
virtual StatusCode	callGenerator ()
virtual StatusCode	genFinalize ()
virtual StatusCode	fillEvt (GenEvent *evt)
Public Member Functions inherited from GenModule
	GenModule (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~GenModule ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
virtual StatusCode	genuserInitialize ()
	GenModule (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~GenModule ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
virtual StatusCode	genuserInitialize ()
	GenModule (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~GenModule ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
virtual StatusCode	genuserInitialize ()

Additional Inherited Members
Protected Member Functions inherited from GenModule
void	StripPartonsInit (void)
void	StripPartons (GenEvent *evt)
void	StripPartonsInit (void)
void	StripPartons (GenEvent *evt)
void	StripPartonsInit (void)
void	StripPartons (GenEvent *evt)
Protected Attributes inherited from GenModule
bool	m_fixedMode
double	m_meanInteractions
int	m_randomSeed
std::vector< int >	m_AllPartons
std::vector< int >	m_StripVector
bool	m_StripPartonSwitch
CLHEP::HepRandomEngine *	m_pRandomEngine
CLHEP::RandPoisson *	m_pPoissonGenerator
HepPDT::ParticleDataTable *	m_particleTable

Detailed Description

Definition at line 41 of file SingleParticleGun.h.

Constructor & Destructor Documentation

SingleParticleGun()

SingleParticleGun::SingleParticleGun	(	const std::string &	name,
		ISvcLocator *	pSvcLocator )

Definition at line 34 of file SingleParticleGun.cxx.

    : GenModule( name, pSvcLocator ) {
  //--------------------------------------------------------------------------
  declareProperty( "Mode", m_Emode = SingleEnergyMode::PtMode );
  // in PtMode user specifies Pt theta and phi
  // in EMode user specifies E, theta and phi
  // defaults are set so that something is always generated

  declareProperty( "Pt", m_requestedPt = 5.0 );
  declareProperty( "E", m_requestedE = 5.0 );
  declareProperty( "Phi", m_requestedPhi = 0.0 );
  declareProperty( "Theta", m_requestedTheta = 3.14 / 4.0 );

  declareProperty( "VertexX", m_requestedX = 0.0 );
  declareProperty( "VertexY", m_requestedY = 0.0 );
  declareProperty( "VertexZ", m_requestedZ = 0.0 );
  declareProperty( "Time", m_requestedT = 0.0 );

  declareProperty( "MinPt", m_minPt = 1. );
  declareProperty( "MinE", m_minE = 1. );
  declareProperty( "MinTheta", m_minTheta = 0. );
  declareProperty( "MinPhi", m_minPhi = 0. );

  declareProperty( "MaxPt", m_maxPt = 100. );
  declareProperty( "MaxE", m_maxE = 100. );
  declareProperty( "MaxTheta", m_maxTheta = CLHEP::pi );
  declareProperty( "MaxPhi", m_maxPhi = CLHEP::twopi );

  declareProperty( "SigmaPt", m_sigmaPt = 0.1 );
  declareProperty( "SigmaE", m_sigmaE = 0.1 );

  declareProperty( "SigmaTheta", m_sigmaTheta = 0.1 );
  declareProperty( "SigmaPhi", m_sigmaPhi = 0.1 );

  declareProperty( "ModePt", m_PtGenMode = SingleParticleGunGenMode::FixedMode );
  declareProperty( "ModeE", m_EGenMode = SingleParticleGunGenMode::FixedMode );
  declareProperty( "ModeTheta", m_ThetaGenMode = SingleParticleGunGenMode::FixedMode );

  declareProperty( "ModePhi", m_PhiGenMode = SingleParticleGunGenMode::FixedMode );
  // specifies type of distribution

  declareProperty( "PdgCode", m_pdgCode = 211 );
}

Referenced by SingleParticleGun().

~SingleParticleGun()

SingleParticleGun::~SingleParticleGun ( )

virtual

Definition at line 79 of file SingleParticleGun.cxx.

                                      {
  //--------------------------------------------------------------------------
  //   if(m_pFlatGenerator)  delete m_pFlatGenerator;
  //   if(m_pGaussGenerator) delete m_pGaussGenerator;
}

Member Function Documentation

callGenerator()

StatusCode SingleParticleGun::callGenerator ( )

virtual

Reimplemented from GenModule.

Definition at line 167 of file SingleParticleGun.cxx.

                                            {
  //---------------------------------------------------------------------------

  ++m_events;
  // Save the random number seeds in the event
  CLHEP::HepRandomEngine* engine = p_BesRndmGenSvc->GetEngine( "SINGLE" );
  const long*             s      = engine->getSeeds();
  m_seeds.clear();
  m_seeds.push_back( s[0] );
  m_seeds.push_back( s[1] );

  // Generate values for pt, theta and phi
  //
  double pt, phi, theta, E, px, py, pz, p;
  switch ( m_Emode )
  {

  case SingleEnergyMode::PtMode:
    pt    = generateValue( m_PtGenMode, m_requestedPt, m_sigmaPt, m_minPt, m_maxPt );
    theta = generateValue( m_ThetaGenMode, m_requestedTheta, m_sigmaTheta, m_minTheta,
                           m_maxTheta );
    phi   = generateValue( m_PhiGenMode, m_requestedPhi, m_sigmaPhi, m_minPhi, m_maxPhi );

    // Transform to x,y,z coordinates
    //
    px = pt * cos( phi );
    py = pt * sin( phi );
    pz = pt / tan( theta );
    m_fourMom.setVectM( CLHEP::Hep3Vector( px, py, pz ), m_mass );
    m_fourPos.set( m_requestedX, m_requestedY, m_requestedZ, m_requestedT );
    return StatusCode::SUCCESS;

  case SingleEnergyMode::EMode:
    E     = generateValue( m_EGenMode, m_requestedE, m_sigmaE, m_minE, m_maxE );
    theta = generateValue( m_ThetaGenMode, m_requestedTheta, m_sigmaTheta, m_minTheta,
                           m_maxTheta );
    phi   = generateValue( m_PhiGenMode, m_requestedPhi, m_sigmaPhi, m_minPhi, m_maxPhi );

    // Transform to x,y,z coordinates
    //
    if ( E * E - m_mass * m_mass < 0. )
    {
      MsgStream log( msgSvc(), name() );
      log << MSG::ERROR
          << "You have Generated a Tachyon!! Increase energy or change particle ID" << endmsg;
      return StatusCode::FAILURE;
    }
    p  = sqrt( E * E - m_mass * m_mass );
    px = p * sin( theta ) * cos( phi );
    py = p * sin( theta ) * sin( phi );
    pz = p * cos( theta );

    m_fourMom.setVectM( CLHEP::Hep3Vector( px, py, pz ), m_mass );
    m_fourPos.set( m_requestedX, m_requestedY, m_requestedZ, m_requestedT );
    return StatusCode::SUCCESS;
  }
  return StatusCode::SUCCESS;
}

fillEvt()

StatusCode SingleParticleGun::fillEvt ( GenEvent * evt )

virtual

Reimplemented from GenModule.

Definition at line 233 of file SingleParticleGun.cxx.

                                                     {
  //---------------------------------------------------------------------------
  // Note:  The vertex is owned by the event so the event is responsible
  // for deleting its memory
  evt->set_event_number( m_events ); // Set the event number
  GenVertex* v1 = new GenVertex( m_fourPos );

  std::cout << " SingleParticleGun::fillEvt --> " << std::endl;
  std::cout << " Event number:: " << m_events << std::endl;
  std::cout << " vertex.x = " << m_fourPos.x() << " vertex.y = " << m_fourPos.y()
            << " vertex.z = " << m_fourPos.z() << " vertex.t = " << m_fourPos.t() << std::endl;

  std::cout << " momentum.x = " << m_fourMom.x() << " momentum.y = " << m_fourMom.y()
            << " momentum.z = " << m_fourMom.z() << " momentum.t = " << m_fourMom.t()
            << std::endl;

  evt->add_vertex( v1 );

  v1->add_particle_out( new GenParticle( m_fourMom, m_pdgCode, 1 ) );

  std::cout << " particles_size = " << evt->particles_size()
            << " vertices_size = " << evt->vertices_size() << std::endl;

  evt->set_signal_process_id( SINGLE );
  evt->set_random_states( m_seeds );

  return StatusCode::SUCCESS;
}

genFinalize()

StatusCode SingleParticleGun::genFinalize ( )

virtual

Reimplemented from GenModule.

Definition at line 227 of file SingleParticleGun.cxx.

                                          {
  //---------------------------------------------------------------------------
  return StatusCode::SUCCESS;
}

genInitialize()

StatusCode SingleParticleGun::genInitialize ( )

virtual

Reimplemented from GenModule.

Definition at line 86 of file SingleParticleGun.cxx.

                                            {
  //---------------------------------------------------------------------------

  // Create the flat and gaussian generators
  //

  MsgStream log( msgSvc(), name() );

  static const bool CREATEIFNOTTHERE( true );
  StatusCode        RndmStatus = service( "BesRndmGenSvc", p_BesRndmGenSvc, CREATEIFNOTTHERE );
  if ( !RndmStatus.isSuccess() || 0 == p_BesRndmGenSvc )
  {
    log << MSG::ERROR << " Could not initialize Random Number Service" << endmsg;
    return RndmStatus;
  }

  // Get the mass of the particle to be generated
  //
  const HepPDT::ParticleData* particle =
      m_particleTable->particle( HepPDT::ParticleID( abs( m_pdgCode ) ) );
  // Some particle can't be found in HepPDT, such as geantino
  m_mass = particle ? particle->mass().value() : 0;

  //
  // Make sure the parameters are in a sensible range...
  //
  switch ( m_Emode )
  {
  case SingleEnergyMode::PtMode:
    if ( !m_PtGenMode && ( m_minPt > m_requestedPt || m_maxPt < m_requestedPt ) ||
         m_maxPt < m_minPt )
    {
      log << MSG::ERROR << " Pt min and max out of range.  \n"
          << "     Will set Pt mode to Fixed!!!" << endmsg;
      m_PtGenMode = SingleParticleGunGenMode::FixedMode;
    }
    if ( !m_ThetaGenMode &&
             ( m_minTheta > m_requestedTheta || m_maxTheta < m_requestedTheta ) ||
         m_maxTheta < m_minTheta )
    {
      log << MSG::ERROR << " Theta min and max out of range. \n"
          << "     Will set Theta mode to Fixed!!!" << endmsg;
      m_ThetaGenMode = SingleParticleGunGenMode::FixedMode;
    }
    if ( !m_PhiGenMode && ( m_minPhi > m_requestedPhi || m_maxPhi < m_requestedPhi ) ||
         m_maxPhi < m_minPhi )
    {
      log << MSG::ERROR << " Phi min and max out of range.  \n"
          << "     Will set Phi mode to Fixed!!!" << endmsg;
      m_PhiGenMode = SingleParticleGunGenMode::FixedMode;
    }
    break;
  case SingleEnergyMode::EMode:
    if ( !m_EGenMode && ( m_minE > m_requestedE || m_maxE < m_requestedE ) || m_maxE < m_minE )
    {
      log << MSG::ERROR << " E min and max out of range.  \n"
          << "     Will set E mode to Fixed!!!" << endmsg;
      m_EGenMode = SingleParticleGunGenMode::FixedMode;
    }
    if ( !m_ThetaGenMode &&
             ( m_minTheta > m_requestedTheta || m_maxTheta < m_requestedTheta ) ||
         m_maxTheta < m_minTheta )
    {
      log << MSG::ERROR << " Theta min and max out of range. \n"
          << "     Will set Theta mode to Fixed!!!" << endmsg;
      m_ThetaGenMode = SingleParticleGunGenMode::FixedMode;
    }
    if ( !m_PhiGenMode && ( m_minPhi > m_requestedPhi || m_maxPhi < m_requestedPhi ) ||
         m_maxPhi < m_minPhi )
    {
      log << MSG::ERROR << " Phi min and max out of range.  \n"
          << "     Will set Phi mode to Fixed!!!" << endmsg;
      m_PhiGenMode = SingleParticleGunGenMode::FixedMode;
    }
    break;
  }
  m_events = 0;
  return StatusCode::SUCCESS;
}

---

The documentation for this class was generated from the following files:

• SingleParticleGun.h
• SingleParticleGun.cxx
