BesMucSD Class Reference

#include <BesMucSD.hh>

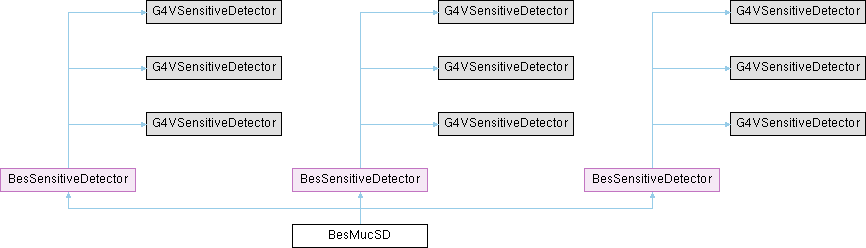

Inheritance diagram for BesMucSD:

Public Member Functions
	BesMucSD (G4String, BesMucConstruction *)
	~BesMucSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	BeginOfTruthEvent (const G4Event *)
void	EndOfTruthEvent (const G4Event *)
	BesMucSD (G4String, BesMucConstruction *)
	~BesMucSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	BeginOfTruthEvent (const G4Event *)
void	EndOfTruthEvent (const G4Event *)
	BesMucSD (G4String, BesMucConstruction *)
	~BesMucSD ()
void	Initialize (G4HCofThisEvent *)
G4bool	ProcessHits (G4Step *, G4TouchableHistory *)
void	EndOfEvent (G4HCofThisEvent *)
void	BeginOfTruthEvent (const G4Event *)
void	EndOfTruthEvent (const G4Event *)
Public Member Functions inherited from BesSensitiveDetector
	BesSensitiveDetector (const G4String name)
virtual	~BesSensitiveDetector ()
virtual void	BeginOfTrack (const G4Track *)
virtual void	EndOfTrack (const G4Track *)
	BesSensitiveDetector (const G4String name)
virtual	~BesSensitiveDetector ()
virtual void	BeginOfTrack (const G4Track *)
virtual void	EndOfTrack (const G4Track *)
	BesSensitiveDetector (const G4String name)
virtual	~BesSensitiveDetector ()
virtual void	BeginOfTrack (const G4Track *)
virtual void	EndOfTrack (const G4Track *)

Additional Inherited Members
Protected Member Functions inherited from BesSensitiveDetector
void	GetCurrentTrackIndex (G4int &trackIndex, G4int &g4TrackId) const
void	GetCurrentTrackIndex (G4int &trackIndex, G4int &g4TrackId) const
void	GetCurrentTrackIndex (G4int &trackIndex, G4int &g4TrackId) const

Detailed Description

Definition at line 36 of file InstallArea/x86_64-el9-gcc13-dbg/include/MucSim/BesMucSD.hh.

Constructor & Destructor Documentation

BesMucSD() [1/3]

BesMucSD::BesMucSD	(	G4String	name,
		BesMucConstruction *	Det )

Definition at line 41 of file BesMucSD.cc.

    : BesSensitiveDetector( name ), detector( Det ) {
  collectionName.insert( "BesMucHitsCollection" );
  collectionName.insert( "BesMucHitsList" );
  HitID = new G4int[500];

  // liangyt 2006.3.1 initialize muc-efficiency;
  G4String GeometryPath  = ReadBoostRoot::GetBoostRoot();
  G4String GeometryPath2 = GeometryPath;
  if ( !GeometryPath )
  {
    G4cout << "BOOST environment not set!" << G4endl;
    exit( -1 );
  }
  GeometryPath += "/dat/muc-effi.dat";
  GeometryPath2 += "/dat/muc-noise.dat";

  m_effi = BesMucEfficiency::Instance();
  //  m_effi->Initialize(GeometryPath);

  // retrieve G4Svc
  ISvcLocator* svcLocator = Gaudi::svcLocator();
  IG4Svc*      iG4Svc;
  StatusCode   sc = svcLocator->service( "G4Svc", iG4Svc );
  // m_G4Svc       = dynamic_cast<G4Svc *>(iG4Svc);
  m_G4Svc     = iG4Svc;
  m_noiseMode = m_G4Svc->MucNoiseMode();
  G4cout << "MucNoiseMode:\t" << m_noiseMode << G4endl;

  if ( m_noiseMode != 0 )
  {
    m_noise                     = BesMucNoise::Instance();
    G4LogicalVolume* logicalMuc = detector->GetPhysicalMuc()->GetLogicalVolume();
    m_noise->Initialize( GeometryPath2, logicalMuc );
    // m_noise->Initialize(GeometryPath2,logicalMuc,"ROOT");
  }

  m_PreviousPrimaryTrackG4Id = 0;
  m_CurEvent                 = 0;
  m_TrackCon                 = 0;
}

~BesMucSD() [1/3]

BesMucSD::~BesMucSD

(

)

Definition at line 83 of file BesMucSD.cc.

{ delete[] HitID; }

BesMucSD() [2/3]

BesMucSD::BesMucSD	(	G4String	,
		BesMucConstruction *	)

~BesMucSD() [2/3]

BesMucSD::~BesMucSD

(

)

BesMucSD() [3/3]

BesMucSD::BesMucSD	(	G4String	,
		BesMucConstruction *	)

~BesMucSD() [3/3]

BesMucSD::~BesMucSD

(

)

Member Function Documentation

BeginOfTruthEvent() [1/3]

void BesMucSD::BeginOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

Definition at line 93 of file BesMucSD.cc.

                                                 {
  MucHitList   = new BesMucHitsCollection( SensitiveDetectorName, collectionName[1] );
  m_trackIndex = -99;
  m_trackIndexes.clear();
  m_prePart  = -99;
  m_preSeg   = -99;
  m_preGap   = -99;
  m_preStrip = -99;
  // G4cout<<"---in BesMucSD::BeginOfTruthEvent()---"<<MucHitCollection->entries()<<"
  // "<<MucHitList->entries()<<G4endl;

  // add oise
  if ( m_noiseMode != 0 )
    m_noise->AddNoise( m_noiseMode, MucHitCollection, MucHitList ); // commen out 2006.10.21
}

BeginOfTruthEvent() [2/3]

void BesMucSD::BeginOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

BeginOfTruthEvent() [3/3]

void BesMucSD::BeginOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

EndOfEvent() [1/3]

void BesMucSD::EndOfEvent

(

G4HCofThisEvent *

HCE

)

Definition at line 375 of file BesMucSD.cc.

                                                {
  static G4int HCID = -1;
  if ( HCID < 0 )
  { HCID = G4SDManager::GetSDMpointer()->GetCollectionID( collectionName[0] ); }
  HCE->AddHitsCollection( HCID, MucHitCollection );
}

EndOfEvent() [2/3]

void BesMucSD::EndOfEvent

(

G4HCofThisEvent *

)

EndOfEvent() [3/3]

void BesMucSD::EndOfEvent

(

G4HCofThisEvent *

)

EndOfTruthEvent() [1/3]

void BesMucSD::EndOfTruthEvent ( const G4Event * evt )

virtual

Reimplemented from BesSensitiveDetector.

Definition at line 109 of file BesMucSD.cc.

                                                   {
  static G4int HLID = -1;
  if ( HLID < 0 ) HLID = G4SDManager::GetSDMpointer()->GetCollectionID( collectionName[1] );
  G4HCofThisEvent* HCE = evt->GetHCofThisEvent();
  HCE->AddHitsCollection( HLID, MucHitList );
}

EndOfTruthEvent() [2/3]

void BesMucSD::EndOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

EndOfTruthEvent() [3/3]

void BesMucSD::EndOfTruthEvent ( const G4Event * )

virtual

Reimplemented from BesSensitiveDetector.

Initialize() [1/3]

void BesMucSD::Initialize

(

G4HCofThisEvent *

)

Definition at line 85 of file BesMucSD.cc.

                                            {
  MucHitCollection = new BesMucHitsCollection( SensitiveDetectorName, collectionName[0] );
  // for (G4int j=0;j<detector->GetBesMucNbOfTraps();j++) {HitID[j] = -1;};
  TotEneDeposit = 0;
  // G4cout<<"----------in SD::Init()---
  // "<<detector->GetPhysicalMuc()->GetLogicalVolume()->GetName()<<G4endl;
}

Initialize() [2/3]

void BesMucSD::Initialize

(

G4HCofThisEvent *

)

Initialize() [3/3]

void BesMucSD::Initialize

(

G4HCofThisEvent *

)

ProcessHits() [1/3]

G4bool BesMucSD::ProcessHits	(	G4Step *	aStep,
		G4TouchableHistory *	)

Definition at line 116 of file BesMucSD.cc.

                                                                 {
  G4Track* curTrack = aStep->GetTrack();

  m_CurEvent = G4EventManager::GetEventManager()->GetConstCurrentEvent();
  //  if(m_CurEvent->GetEventID()<19565)return true;  // ---del
  if ( m_CurEvent )
  {
    m_TrackCon = m_CurEvent->GetTrajectoryContainer();

    //  if (!m_TrackCon) G4cout << "m_TrackCon does not exist " << G4endl;
    //  else {
    //  G4cout << "m_TrackCon size " << m_TrackCon->size() << G4endl;
    //  for (int i = 0; i < (int)m_TrackCon->size(); i++) {
    //  G4cout << "track " << i << " g4TrackId " << (*m_TrackCon)[i]->GetTrackID() << " parent
    //  ID " <<
    //  (*m_TrackCon)[i]->GetParentID() << G4endl;
    //  }
    //  }
  }

  if ( curTrack->GetDefinition()->GetPDGCharge() == 0. ) return false;

  G4double edep = aStep->GetTotalEnergyDeposit();
  // if(edep == 0.) return false;

  // TotEneDeposit+=edep;
  G4int trackIndex = -99, g4TrackId = -99;
  GetCurrentTrackIndex( trackIndex, g4TrackId );

  G4TouchableHistory* theTouchable =
      (G4TouchableHistory*)( aStep->GetPreStepPoint()->GetTouchable() );

  BesMucHit* newHit = new BesMucHit();

  G4int trackID  = curTrack->GetTrackID();  // G4 track ID of current track.
  G4int parentID = curTrack->GetParentID(); // G4 track ID of parent track.
  newHit->SetTrackID( trackID );
  newHit->SetTrackIndex( trackIndex ); // MC truth track index

  G4int pdg = curTrack->GetDefinition()->GetPDGEncoding();
  newHit->SetPDGCode( pdg );

  newHit->SetEdep( edep );

  G4ThreeVector pos = 0.5 * ( aStep->GetPostStepPoint()->GetPosition() +
                              aStep->GetPreStepPoint()->GetPosition() );
  newHit->SetPos( pos );

  G4ThreeVector posInGas = theTouchable->GetHistory()->GetTopTransform().TransformPoint( pos );
  G4int         stackDepth = theTouchable->GetHistory()->GetDepth();
  G4ThreeVector posInBox =
      theTouchable->GetHistory()->GetTransform( stackDepth - 1 ).TransformPoint( pos );
  newHit->SetPosLocal( posInBox );

  G4ThreeVector posInGap =
      theTouchable->GetHistory()->GetTransform( stackDepth - 2 ).TransformPoint( pos );
  // cout<<"  pos  "<<pos.x()<<" "<<pos.y()<<"  "<<pos.z()<<"depth= "<<stackDepth<<endl
  //       <<" posInBox(3)"<<posInBox.x()<<"  "<<posInBox.y()<<" "<<posInBox.z()<<endl
  //       <<" posInGap(2)"<<posInGap.x()<<"  "<<posInGap.y()<<" "<<posInGap.z()<<endl;

  G4double energy = aStep->GetPreStepPoint()->GetKineticEnergy();
  newHit->SetEnergy( energy );

  G4ThreeVector dir = aStep->GetPreStepPoint()->GetMomentumDirection();
  newHit->SetDir( dir );

  G4ThreeVector momentum = aStep->GetPreStepPoint()->GetMomentum();
  newHit->SetMomentum( momentum );

  G4double GlobalTime = aStep->GetPostStepPoint()->GetGlobalTime();
  newHit->SetTime( GlobalTime );

  G4VPhysicalVolume* vl = theTouchable->GetVolume( 0 );
  newHit->SetVolume( vl );

  // G4cout<<"in SD "<<newHit->GetPart()<<" "<<newHit->GetSeg()<<" "<<newHit->GetGap()<<"
  // "<<newHit->GetGasChamber()<<"
  // "<<newHit->GetPanel()<<endl;

  newHit->Draw();
  // newHit->Print();
  // MucHitCollection->insert(newHit);
  m_PreviousPrimaryTrackG4Id = g4TrackId;

  //-----------add by liangyt for efficiency

  // for MC Truth
  if ( MucHitList )
  {

    // cout <<"g4TrackId " << g4TrackId << " trackID " << trackID << " parentID " << parentID
    // << "trackIndex " << trackIndex
    // << endl; g4TrackId:  G4 track ID of previous primary track in trackList, trackID:    G4
    // track ID of current track. parentID:   G4 track ID of parent track of current track.
    // trackIndex: track ID in MC truth

    // no longer necessary to find the track's ancestor primary track,
    // it is kept in trackIndex untill next primary track generated. So IsChildof is uncessary
    // if ( g4TrackId == trackID ) { //|| IsChildOf(curTrack, g4TrackId) ) {     // This track
    // is the primary track & will appear in MC truth
    G4int newTrackFlag = 0;
    newHit->SetTrackIndex( trackIndex );
    if ( m_trackIndex != trackIndex )
    {
      m_trackIndex = trackIndex;
      G4int size   = m_trackIndexes.size();
      newTrackFlag = 1;
      if ( size > 0 )
      {
        for ( G4int i = 0; i < size; i++ )
          if ( m_trackIndexes[i] == trackIndex )
          {
            newTrackFlag = 0;
            break;
          }
      }
    }

    if ( newTrackFlag )
    {
      m_trackIndexes.push_back( trackIndex );
      m_prePart  = -99;
      m_preSeg   = -99;
      m_preGap   = -99;
      m_preStrip = -99;
    }
    BesMucHit* truHit = new BesMucHit();
    *truHit           = *newHit;
    if ( g4TrackId != trackID )
    {
      //    trackIndex += 1000; // a sencondary track
      trackIndex += 0; // 2006.12.22 do not indicate secondary track now
      truHit->SetTrackIndex( trackIndex );
    }
    // cout << "trackIndex " << trackIndex << endl;

    BesMucDigit aDigit;
    aDigit.SetHit( truHit );
    G4int curPart, curSeg, curGap, curStrip;
    curPart  = aDigit.GetPart();
    curSeg   = aDigit.GetSeg();
    curGap   = aDigit.GetGap();
    curStrip = aDigit.GetNearestStripNo();

    m_effi->CheckCalibSvc();
    m_effi->SetHit( truHit );
    G4double need_eff = m_effi->GetEfficiency();

    // G4cout<<"in SD effi= "<<need_eff<<endl;
    // need_eff = 1.0;  //2006.12.28
    if ( curPart == m_prePart && curSeg == m_preSeg && curGap == m_preGap &&
         curStrip == m_preStrip )
    {
      // cout<<MucHitList->entries()<<" "<<MucHitCollection->entries()<<"
      // "<<need_eff<<"---if----curPart "<<curPart<<"curSeg
      // "<<curSeg<<"curGap "<<curGap<<"curStrip "<<curStrip<<" momentum "<<momentum.x()<<"
      // "<<momentum.y()<<"
      // "<<momentum.z()<<" "<<endl;
      delete truHit;
      delete newHit;
    }
    else
    {
      // cout<<MucHitList->entries()<<"----else--Part "<<curPart<<" Seg "<<curSeg<<" Gap
      // "<<curGap<<" Strip
      // "<<curStrip<<endl;
      truHit->SetPart( curPart );
      truHit->SetSeg( curSeg );
      truHit->SetGap( curGap );
      truHit->SetStrip( curStrip );

      // if a truHit with the same id(part, seg, gap, strip) and trackIndex(%1000) exist,
      // they belong to the same primary track,(maybe one is primary, the other is secondary),
      // dont add.
      bool  truHitExist = false;
      G4int n_hit       = MucHitList->entries();
      for ( G4int iTru = 0; iTru < n_hit; iTru++ )
      {
        BesMucHit* aTruHit = ( *MucHitList )[iTru];
        if ( aTruHit->GetTrackIndex() % 1000 == truHit->GetTrackIndex() % 1000 &&
             aTruHit->GetPart() == truHit->GetPart() &&
             aTruHit->GetSeg() == truHit->GetSeg() && aTruHit->GetGap() == truHit->GetGap() &&
             aTruHit->GetStrip() == truHit->GetStrip() )
        {
          truHitExist = true;
          break;
        }
      }
      G4float random = G4UniformRand(); //*** use other random
      // G4float random=(rand()%100000)/100000.0;
      // G4cout<<"---in SD---"<<random<<endl;
      if ( random <= need_eff ) { MucHitCollection->insert( newHit ); }
      else delete newHit;
      if ( !truHitExist && random <= need_eff ) { MucHitList->insert( truHit ); }
      else delete truHit;
      m_prePart  = curPart;
      m_preSeg   = curSeg;
      m_preGap   = curGap;
      m_preStrip = curStrip;
    }
    //}
  }

  return true;
}

ProcessHits() [2/3]

G4bool BesMucSD::ProcessHits	(	G4Step *	,
		G4TouchableHistory *	)

ProcessHits() [3/3]

G4bool BesMucSD::ProcessHits	(	G4Step *	,
		G4TouchableHistory *	)

---

The documentation for this class was generated from the following files:

• InstallArea/x86_64-el9-gcc13-dbg/include/MucSim/BesMucSD.hh
• InstallArea/x86_64-el9-gcc13-opt/include/MucSim/BesMucSD.hh
• Simulation/BOOST/MucSim/include/MucSim/BesMucSD.hh
• BesMucSD.cc
