TRobustLineFitter Class Reference

A class to fit a TTrackBase object to a line. More...

#include <TRobustLineFitter.h>

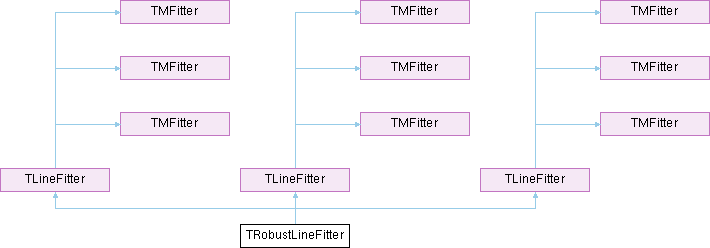

Inheritance diagram for TRobustLineFitter:

Public Member Functions
	TRobustLineFitter (const std::string &name)
	Constructor.
virtual	~TRobustLineFitter ()
	Destructor.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.
double	a (void) const
double	b (void) const
double	det (void) const
virtual int	fit (TTrackBase &) const
	TRobustLineFitter (const std::string &name)
	Constructor.
virtual	~TRobustLineFitter ()
	Destructor.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.
double	a (void) const
double	b (void) const
double	det (void) const
virtual int	fit (TTrackBase &) const
	TRobustLineFitter (const std::string &name)
	Constructor.
virtual	~TRobustLineFitter ()
	Destructor.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.
double	a (void) const
double	b (void) const
double	det (void) const
virtual int	fit (TTrackBase &) const
Public Member Functions inherited from TLineFitter
	TLineFitter (const std::string &name)
	Constructor.
virtual	~TLineFitter ()
	Destructor.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.
double	a (void) const
double	b (void) const
double	det (void) const
	TLineFitter (const std::string &name)
	Constructor.
virtual	~TLineFitter ()
	Destructor.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.
double	a (void) const
double	b (void) const
double	det (void) const
	TLineFitter (const std::string &name)
	Constructor.
virtual	~TLineFitter ()
	Destructor.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.
double	a (void) const
double	b (void) const
double	det (void) const
Public Member Functions inherited from TMFitter
	TMFitter (const std::string &name)
	Constructor.
virtual	~TMFitter ()
	Destructor.
const std::string &	name (void) const
	returns name.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	TMFitter (const std::string &name)
	Constructor.
virtual	~TMFitter ()
	Destructor.
const std::string &	name (void) const
	returns name.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	TMFitter (const std::string &name)
	Constructor.
virtual	~TMFitter ()
	Destructor.
const std::string &	name (void) const
	returns name.
void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const

Additional Inherited Members
Protected Member Functions inherited from TMFitter
void	fitDone (TTrackBase &) const
	sets the fitted flag. (Bad implementation)
void	fitDone (TTrackBase &) const
	sets the fitted flag. (Bad implementation)
void	fitDone (TTrackBase &) const
	sets the fitted flag. (Bad implementation)

Detailed Description

A class to fit a TTrackBase object to a line.

Definition at line 28 of file InstallArea/x86_64-el9-gcc13-dbg/include/TrkReco/TRobustLineFitter.h.

Constructor & Destructor Documentation

TRobustLineFitter() [1/3]

TRobustLineFitter::TRobustLineFitter

(

const std::string &

name

)

Constructor.

Definition at line 37 of file TRobustLineFitter.cxx.

    : TLineFitter( name ), _a( 0. ), _b( 0. ), _det( 0. ) {}

~TRobustLineFitter() [1/3]

TRobustLineFitter::~TRobustLineFitter ( )

virtual

Destructor.

Definition at line 40 of file TRobustLineFitter.cxx.

{}

TRobustLineFitter() [2/3]

TRobustLineFitter::TRobustLineFitter

(

const std::string &

name

)

Constructor.

~TRobustLineFitter() [2/3]

virtual TRobustLineFitter::~TRobustLineFitter ( )

virtual

Destructor.

TRobustLineFitter() [3/3]

TRobustLineFitter::TRobustLineFitter

(

const std::string &

name

)

Constructor.

~TRobustLineFitter() [3/3]

virtual TRobustLineFitter::~TRobustLineFitter ( )

virtual

Destructor.

Member Function Documentation

a() [1/3]

double TRobustLineFitter::a ( void ) const

inline

Definition at line 70 of file InstallArea/x86_64-el9-gcc13-dbg/include/TrkReco/TRobustLineFitter.h.

{ return _a; }

a() [2/3]

double TRobustLineFitter::a

(

void

)

const

a() [3/3]

double TRobustLineFitter::a

(

void

)

const

b() [1/3]

double TRobustLineFitter::b ( void ) const

inline

Definition at line 72 of file InstallArea/x86_64-el9-gcc13-dbg/include/TrkReco/TRobustLineFitter.h.

{ return _b; }

b() [2/3]

double TRobustLineFitter::b

(

void

)

const

b() [3/3]

double TRobustLineFitter::b

(

void

)

const

det() [1/3]

double TRobustLineFitter::det ( void ) const

inline

Definition at line 74 of file InstallArea/x86_64-el9-gcc13-dbg/include/TrkReco/TRobustLineFitter.h.

{ return _det; }

det() [2/3]

double TRobustLineFitter::det

(

void

)

const

det() [3/3]

double TRobustLineFitter::det

(

void

)

const

dump() [1/3]

void TRobustLineFitter::dump	(	const std::string &	message = std::string(""),
		const std::string &	prefix = std::string("") ) const

dumps debug information.

dump() [2/3]

void TRobustLineFitter::dump	(	const std::string &	message = std::string(""),
		const std::string &	prefix = std::string("") ) const

dumps debug information.

dump() [3/3]

void TRobustLineFitter::dump	(	const std::string &	message = std::string(""),
		const std::string &	prefix = std::string("") ) const

dumps debug information.

fit() [1/3]

int TRobustLineFitter::fit ( TTrackBase & t ) const

virtual

Reimplemented from TLineFitter.

Definition at line 42 of file TRobustLineFitter.cxx.

                                                {
  //...Initial guess...
  int err = TLineFitter::fit( t );
  if ( err ) return err;

  //...Check # of hits...
  const AList<TMLink>& links = t.links();
  _n                         = links.length();
  if ( _n < 3 ) return 0;

  //...Standard deviation...
  _a           = TLineFitter::a();
  _b           = TLineFitter::b();
  _det         = TLineFitter::det();
  double chisq = 0.;
  for ( unsigned i = 0; i < _n; i++ )
  {
    const HepPoint3D& p   = links[i]->position();
    double            tmp = p.y() - ( _a * p.x() + _b );
    chisq += tmp * tmp;
  }
  double siga = sqrt( chisq / _det );

  //...Decide iteration step...
  double a1 = _a;
  double f1 = rofunc( t, a1 );
  double a2 = _a + copysign( 3.0 * siga, f1 );
  double f2 = rofunc( t, a2 );

  // if initial value f2 >f1, change the search direction
  if ( f1 * f2 > 0. && fabs( f2 ) > fabs( f1 ) )
  {
    a2 = _a - copysign( 3.0 * siga, f1 );
    f2 = rofunc( t, a2 );
  }

  int backwardSearch = 0;
  while ( f1 * f2 > 0. )
  {
    _a = 2.0 * a2 - a1;
    a1 = a2;
    f1 = f2;
    a2 = _a;
    f2 = rofunc( t, a2 );

    if ( f1 * f2 > 0. && ( fabs( f2 ) > fabs( f1 ) || fabs( f2 - f1 ) < 0.01 ) )
    {
      backwardSearch++;
      if ( backwardSearch == 2 ) { break; }

      double f = f2;
      a2       = a1;
      f2       = f1;
      a1       = _a;
      f1       = f;
    }
  }

  if ( backwardSearch == 2 )
  {
    // for case of  no zero cross
    // search minimun fabs(f)

    double siga1 = 0.01 * siga;
    double a21( fabs( a2 - a1 ) );
    while ( a21 > siga1 )
    {
      _a = 0.5 * ( a1 + a2 );
      if ( _a == a1 || _a == a2 ) break;
      double f = rofunc( t, _a );

      if ( f * f1 < 0 )
      {
        f1 = f;
        a1 = _a;
        backwardSearch--;
        break;
      }

      if ( fabs( f ) <= fabs( f1 ) && fabs( f ) <= fabs( f2 ) )
      {
        if ( fabs( f - f1 ) > fabs( f - f2 ) )
        {
          f1 = f;
          a1 = _a;
        }
        else
        {
          f2 = f;
          a2 = _a;
        }
      }
      else if ( fabs( f ) <= fabs( f1 ) )
      {
        f1 = f;
        a1 = _a;
      }
      else if ( fabs( f ) <= fabs( f2 ) )
      {
        f2 = f;
        a2 = _a;
      }
      else
      {
        if ( fabs( f2 ) > fabs( f1 ) )
        {
          f1 = f;
          a1 = _a;
        }
        else
        {
          f2 = f;
          a2 = _a;
        }
      }
      if ( fabs( a2 - a1 ) >= a21 ) break;
      a21 = fabs( a2 - a1 );
    }
  }

  if ( backwardSearch <= 1 )
  {

    // search zero cross
    siga = 0.01 * siga;

    double a21( fabs( a2 - a1 ) );
    while ( a21 > siga )
    {
      _a = 0.5 * ( a1 + a2 );
      if ( _a == a1 || _a == a2 ) break;
      double f = rofunc( t, _a );
      if ( f * f1 >= 0. )
      {
        f1 = f;
        a1 = _a;
      }
      else
      {
        f2 = f;
        a2 = _a;
      }
      if ( fabs( a2 - a1 ) >= a21 ) break;
      a21 = fabs( a2 - a1 );
    }
  }

  _det = _det / double( _n );

  if ( t.objectType() == Line ) ( (TMLine&)t ).property( _a, _b, _det );
  fitDone( t );
  return 0;
}

Referenced by TBuilder::buildStereo(), TBuilderCurl::buildStereo(), TBuilder::initialLine2(), and TBuilder::searchLine().

fit() [2/3]

virtual int TRobustLineFitter::fit ( TTrackBase & ) const

virtual

Reimplemented from TLineFitter.

fit() [3/3]

virtual int TRobustLineFitter::fit ( TTrackBase & ) const

virtual

Reimplemented from TLineFitter.

---

The documentation for this class was generated from the following files:

• InstallArea/x86_64-el9-gcc13-dbg/include/TrkReco/TRobustLineFitter.h
• InstallArea/x86_64-el9-gcc13-opt/include/TrkReco/TRobustLineFitter.h
• Reconstruction/TrkReco/include/TrkReco/TRobustLineFitter.h
• TRobustLineFitter.cxx
